These are all engine types produced by Herpa

(Basic information from Herpa in December 2000)

(Updated and supplemented since 2001 in cooperation with Herpa)

First of all, this list is still and will be always under developement. Therefore there may be still some errors and some gaps. Diameter and length remeasured using an electronic digital caliper.

Some newer engines consists of two parts (front part and rear part), which are sticked together. For those engines the length may vary (e.g. E112, E119)

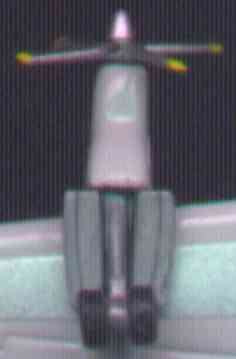

Some forms are used ONLY for Hogan models (code EH1 - EH*).

 You can find them at the end of this list.



Code  Herpa-Description Picture max. Diameter (mm) Length (mm)

Used for

Remark
E01 PW JT9D 5.4 12.8

(6+5.4+1.4)

747-100/200/SP      (old engines)



747-300/400

(old engines)



757-200

(old engines)



767-200/300

(old engines)



DC-10-10/30

(old engines)



MD-11 (old engines)



A300-600

(old engines)



A310 (old engines)



A330 (old engines)

= ID 747

new form is E39

E02 GE CF6-80C 6.0 14.0

(8.3+5.7)

747-100/200/300/400



767-200/300/400



DC-10-10/30/40, MD-11



A300-600/B4



A310



A330-200/300



A340-600

similar to E23, but E2 is a little bit bigger and the rear cone is straight

new forms are E42, E65 and E112

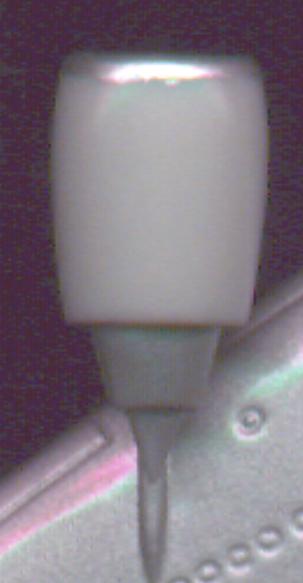

E03 GE 90-B3 7.9 15.6

(9.9+3.2+2.5)

777-200/300



777F

new form is E80

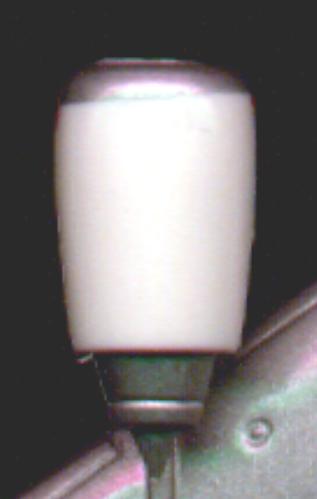

E04 RR Trent 800 7.4 15.3

(10.6+2.8+1.9)

777-200/300



A340-500



A340-600 (old engines)

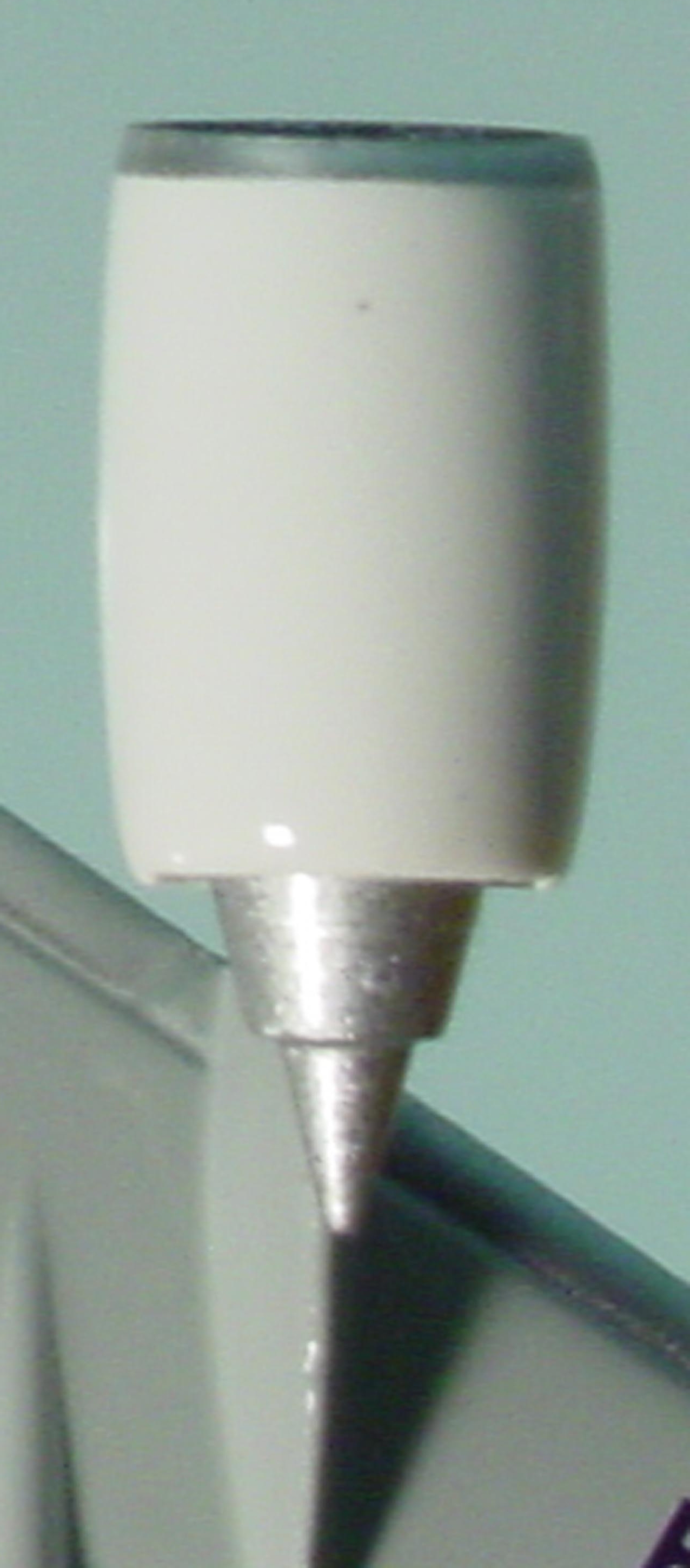

also used as RR Trent 553 (new form is E122) and RR Trent 556
E05 PW 2037 5.3 12.0

(7.5+4.5)

757-200/300

new form is E104
E06 RR RB211-535 E4 4.4 11.0



747-400

(old engines)



757-200/300



767-300

(old engines)



A320



A330-300

(old engines)



A340-200/300 (old engines)



Tu-204/214



new form is E125
E07 PW JT8D 3.1 11.9

737-200

new form is E36
E08 CFM 56-3B 4.4 9.6

(6.6+1.7+1.3)

737-300/400/500

modified form of E32

new form is E38

E09 CFM 56-7B 4.6 10.7

(7.9+2.8)

737-600/700/800

new form is E37
E10 PW JT8D 3.1 11.3

727-200

(old engines)

new form is E35

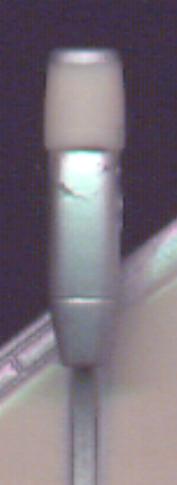

E11 PW JT3D-3B (Q) 2.9 11.6

(3.7+7.9)

707-300



E-3 Sentry

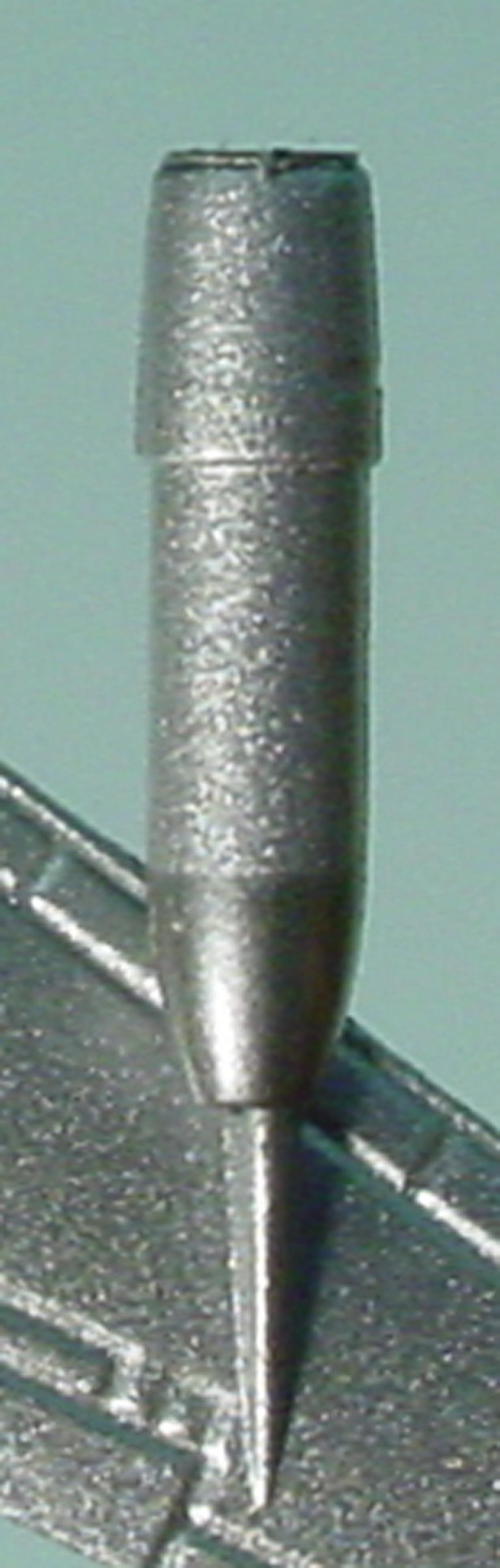

new form is E123
E12 CFM 56-5A/B 4.6 9.5

(6.8+2.7)

A319, A320, A321

(old engines)

modified form of E30

new form is E28

E13 IAE V2500 4.3 10.0

A319, A319CJ



A320, A321



757-200

new form is E56

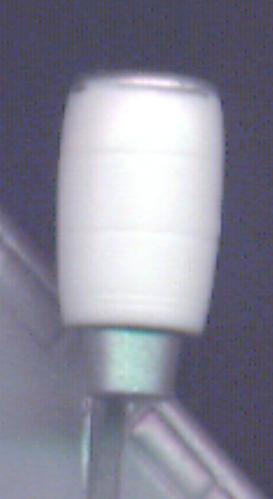

E14 RR RB211-22B/-524   6.0 11.8

(9.3+2.5)

L-1011 (left picture)



747-200/300/SP

(right picture)

new form is  E89
E15 RR/Snecma Olympus 593 -- 25.6

Concorde

new form is E156

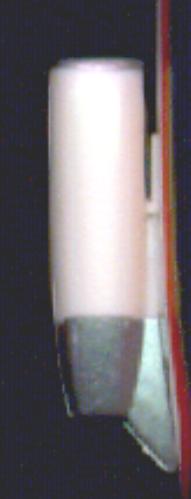

E16 PW JT8D 3.8 13.0

MD-81/82/83



MD-87/88

new form is  E127

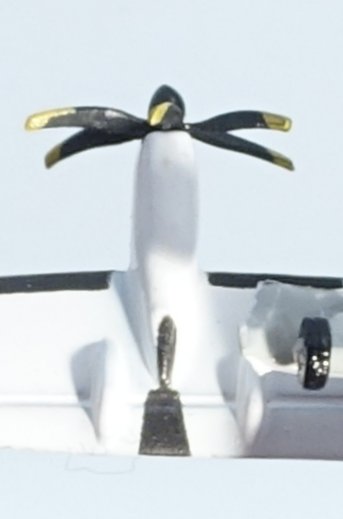

E17 PWC PW 121

PWC PW 124B

3.0 7.3

ATR 42, ATR 72



four blade propeller

six blade propeller

new form is E145

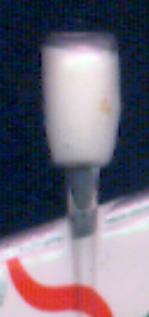

E18 Lycoming ALF502 / LF507 3.1 6.4

(4.8+1.6)

BAe 146



Avro RJ

new form is E71
E19 GE CF34-3A 3.0 7.3

(4.3+3)

CRJ100/200

.
E20 PWC PW 123 3.4 12.7

Dash 8 Q100/Q300

four blade propeller
E21 RR Dart 532 / PWC PW 125 3.4 15.7

Fokker F-27



Fokker F50

four blade propeller

six blade propeller

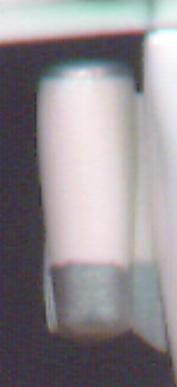

E22 RR Tay 650 3.7 10.3

Fokker 70/100

.
E23 PW 4000 5.6 12.6

(7.5+5.1)

747-100/200/300



747-400/SP



767-200/300/400



A300-600/B2/B4



A310



A330-200/300



MD-11

similar to E2, but E23 is a little bit smaller and the rear cone is curved

new form is E48

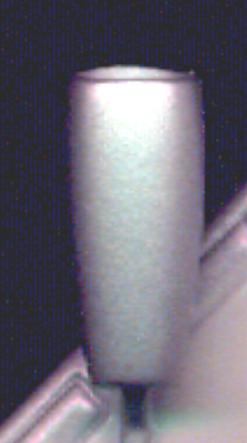

E24 RR RB211-524 D4D 5.3 11.7

747-200/300/400/SP



767-300



A330-200/300



A340-200/300

also used as CFM 56-5C

and RR Trent 700



new forms are E97 and E98 and E133

E25 BMW 132A 3.0 --

Ju 52 / 3m

two blade propeller

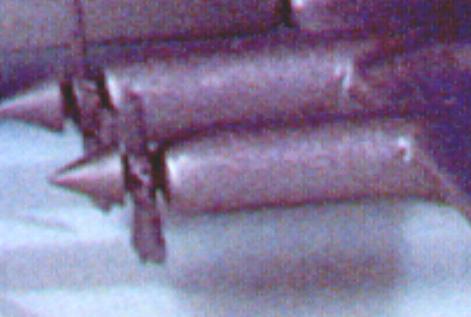

E26 RR Dart 510 / 525 2.6 --

Viscount

four blade propeller
E27 PW R-1830 3,4 --

DC-3/C-47

three blade propeller
E28 CFM 56-5A/B 4.6 9.6

(6.9+2.7)

A319, A319CJ



A320, A321

modified form of E12 with two additional flaps

new form is E52

(introduced 2001)

E29 PW R-2000 3.6 --

DC-4/C-54

three blade propeller
E30 CFM 56-5A/B 4.7 10.8

(7.2+1+2.6)

A319, A320, A321



(very old engines)

new form is E12

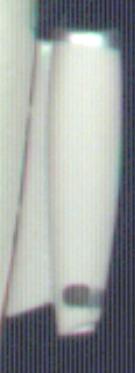

E31 Soloviev D-30-II 2.7 11.3

Tu-134A/B

.
E32 CFM 56-3B 4.0 9.3

(6.3+3)

737-300/400/500 (old engines)

integrated part of the wings

new form is E08

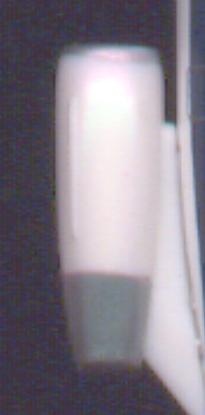

E33 BMW RR BR 715 4.3 11.9

717-200

.

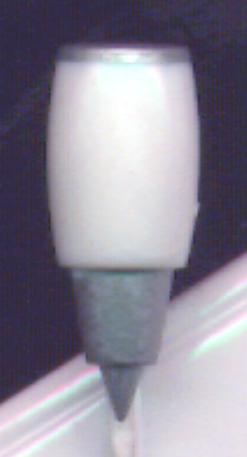

E34 GE CF6-80C 5.6 13.6

(8.1+3.5+2)

A300-600ST

.
E35 PW JT8D 3.1 11.3

727-100/200

modified form of E10 with one additional flap

new form is E135

(introduced 2001)

E36 PW JT8D 2.9 13.2

737-100/200

modified form of E07 with two additional flaps at the end

new form is E100

(introduced 2001)

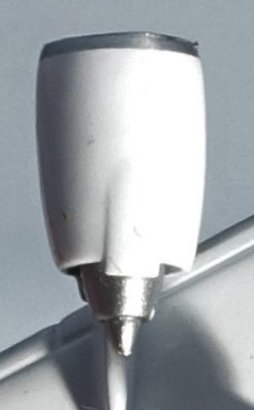

E37 CFM 56-7B 4.6 10.7

(7.9+2.8)

737-600/700/800/900

modified form of E09 with one additional flap

new form is E91

(introduced 2001)

E38 CFM 56-3B 4.4 9.6

(6.6+1.7+1.3)

737-300/400/500

modified form of E08 with one additional flap

(introduced 2001)

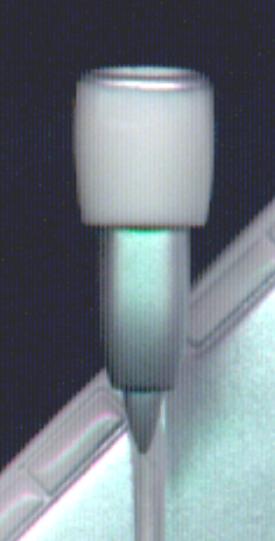

E39 PW JT9D 5.1 13.9

(5.5+6.1+2.3)

747-100/200/300



747SP



SCA

modified form of E01

new form is E110

(introduced 2001)

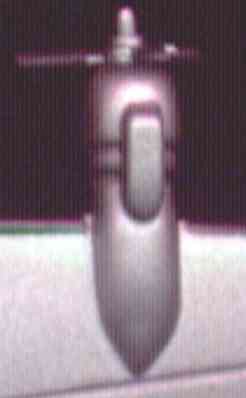

E40 Wright R-3350 4.5 13.0

L-1049G (-DA3)



L-1649A (-EA2)

three blade propeller

(introduced 2002)

E41 GE CF34-8 2.5 7.5

(4.0+2.5+1.0)

CRJ700

CRJ900

(introduced 2003)

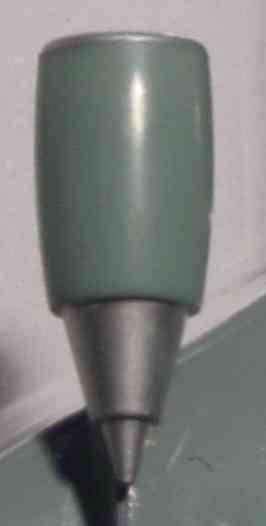

E42 GE CF6-80C 5.0 14.0

(8.0+4.0+2.0)

A300-600/B2/B4

A310-200/300/MRTT

A330-200/300

DC-10-30, MD-11

modified form of E02

new forms are E70 and E140

(introduced 2003)

E43 Hall-Scott A-5 . -- -- B&W  two blade propeller

(introduced 2003)

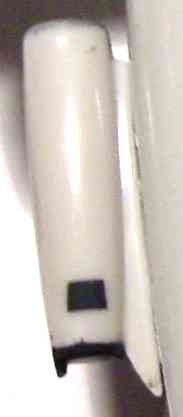

E44 Kuznetsov NK-82 3.5 14.0 Tu-154B/M (introduced 2003)

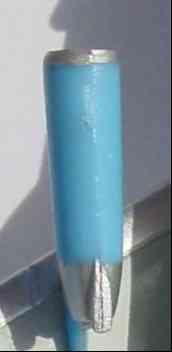

E45 Soloviev D-30-KP 3.0 12.5 IL-76T (introduced 2003)

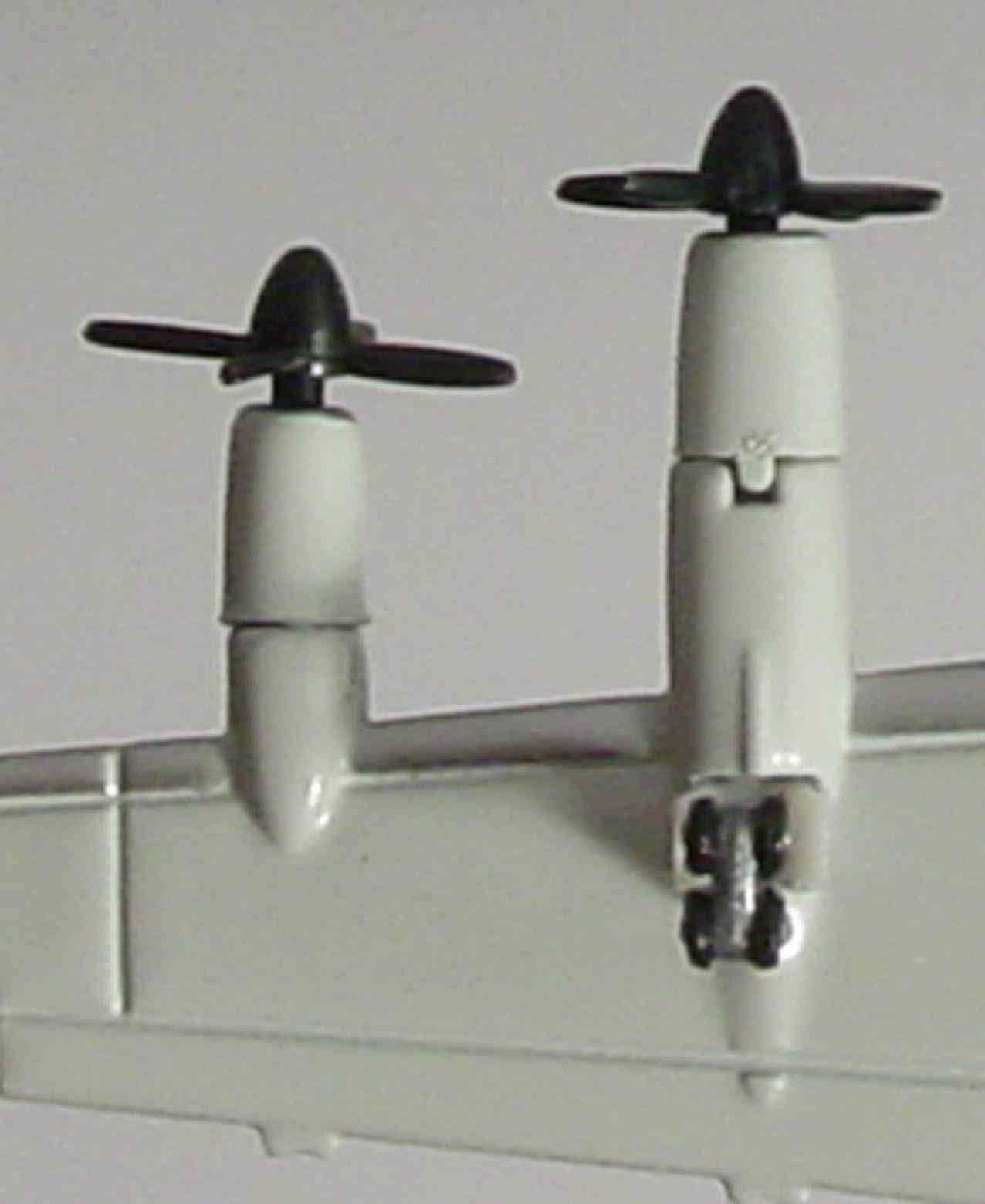

E46 Ivchenko AI-20M -- -- IL-18 four blade propeller

(introduced 2003)

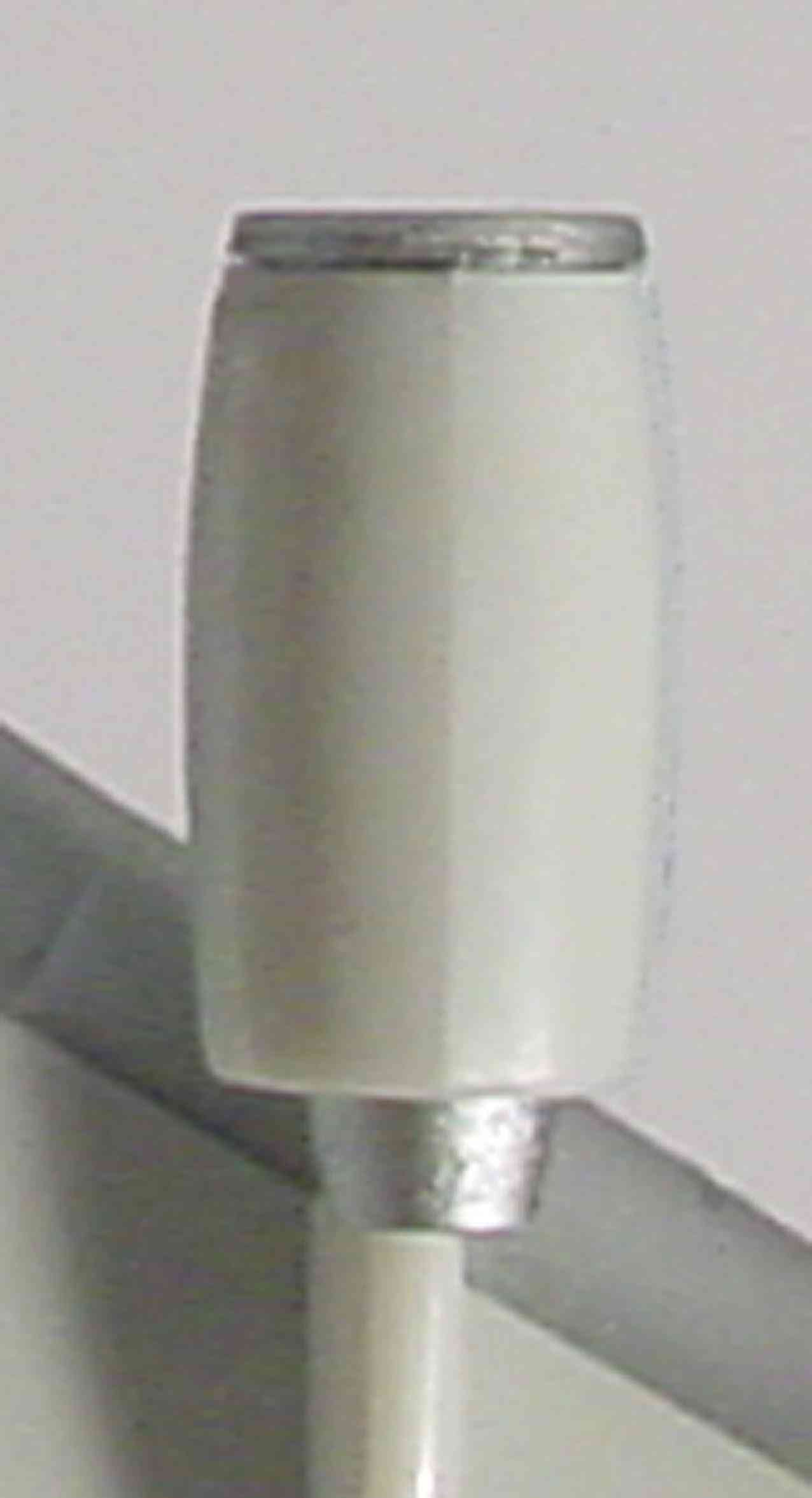

E47 Lotarev D-18T 6.0 12.0

(10.5 + 1.5)

AN-124-100 Ruslan (introduced 2003)
E48 PW 4152 5.5 11.0

(6.5 + 4.5)

A300-600

A310-200/300

MD-11

similar to E02 and E23, but E48 is a little bit shorter

(introduced 2003)

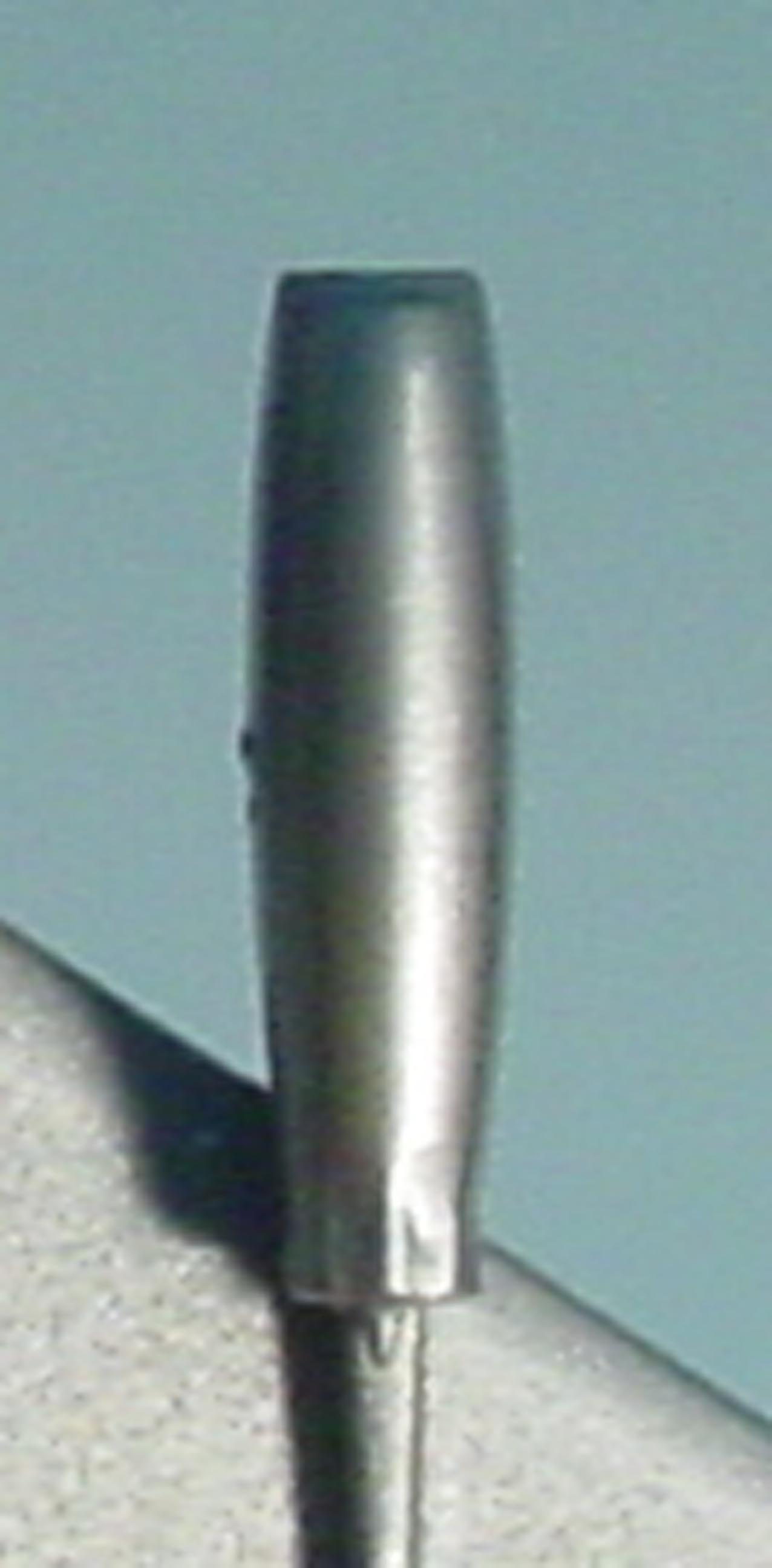

E49 PW JT4A-11 . 2.0 10.5 DC-8-11/21

DC-8-30/41/43

(introduced 2004)
E50 Allison 501-D22A -- -- L-100, C-130 four blade propeller

(introduced 2004)

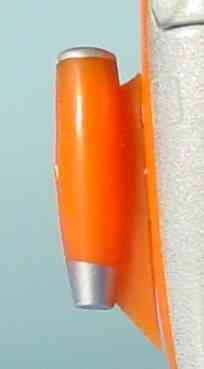

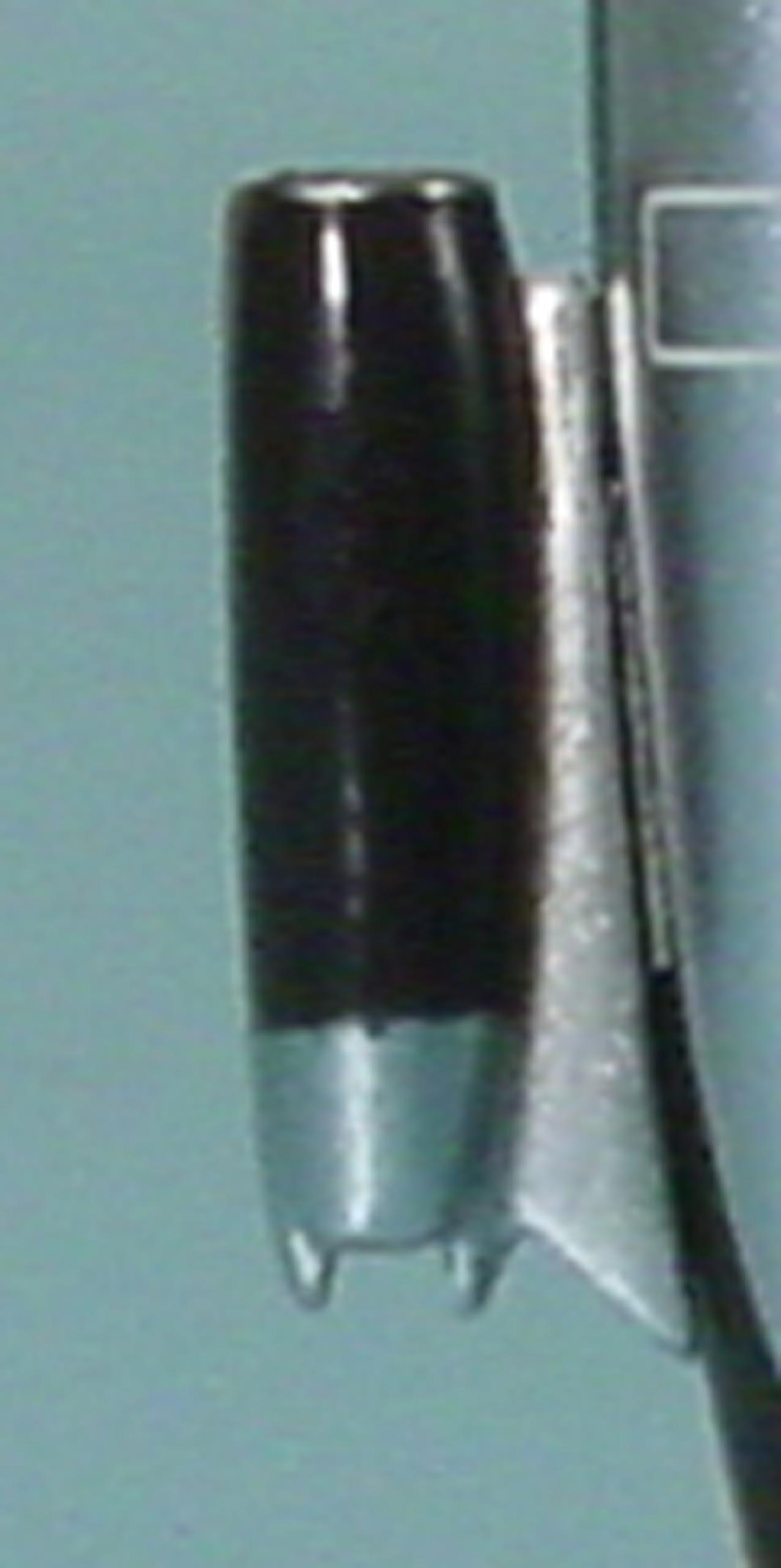

E51 PW JT8D . 2.5 10.0 DC-9-10/14 new form is E116

(introduced 2004)

E52 CFM 56-5A/B 4.0 10.0

(6.0 + 4.0)

A318-100

A319-100

A320-200

A321-100/200

modified form of E28 with two very small flaps

new form is E86

(introduced 2004)

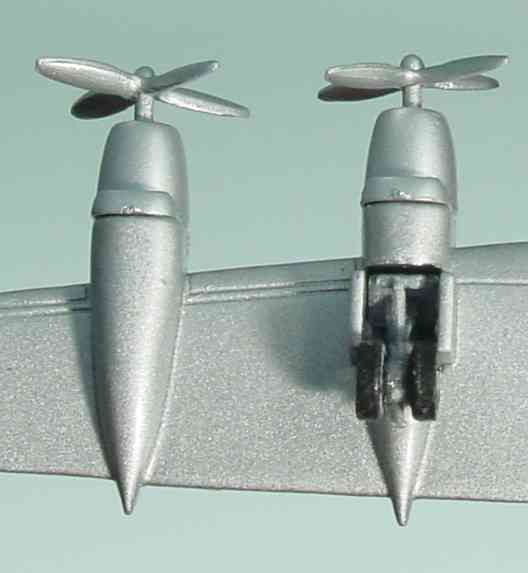

E53 PW R-4360 -- -- 377 Stratocruiser four blade propeller

(introduced 2004)

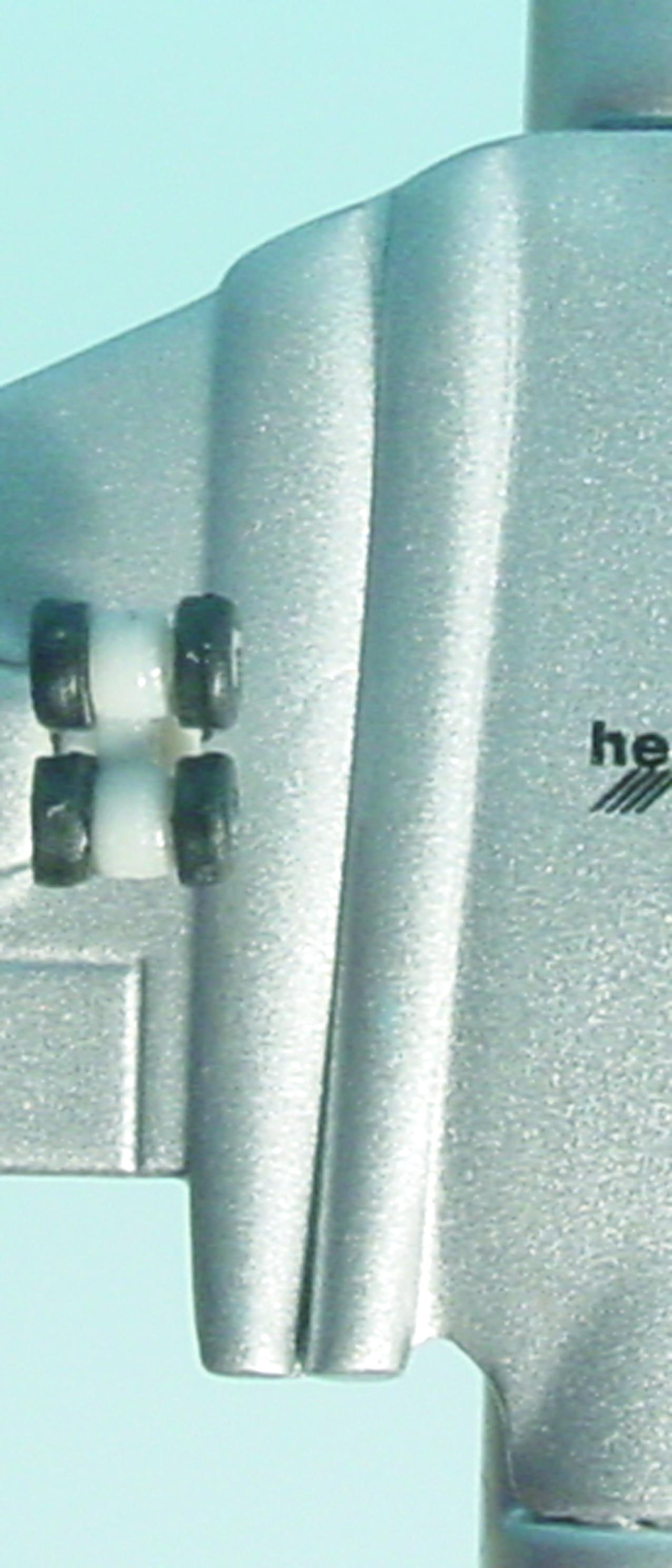

E54 RR Avon 524 -- -- DH 106 Comet 4 (introduced 2005)

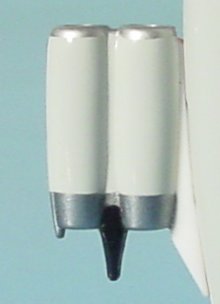

E55 Soloviev D-30-KU -- 17.0 IL-62M (introduced 2005)
E56 IAE V2500 4.3 9.5

A320-200

modified form of E13 with one additional flap

new form is E79

(introduced 2004)

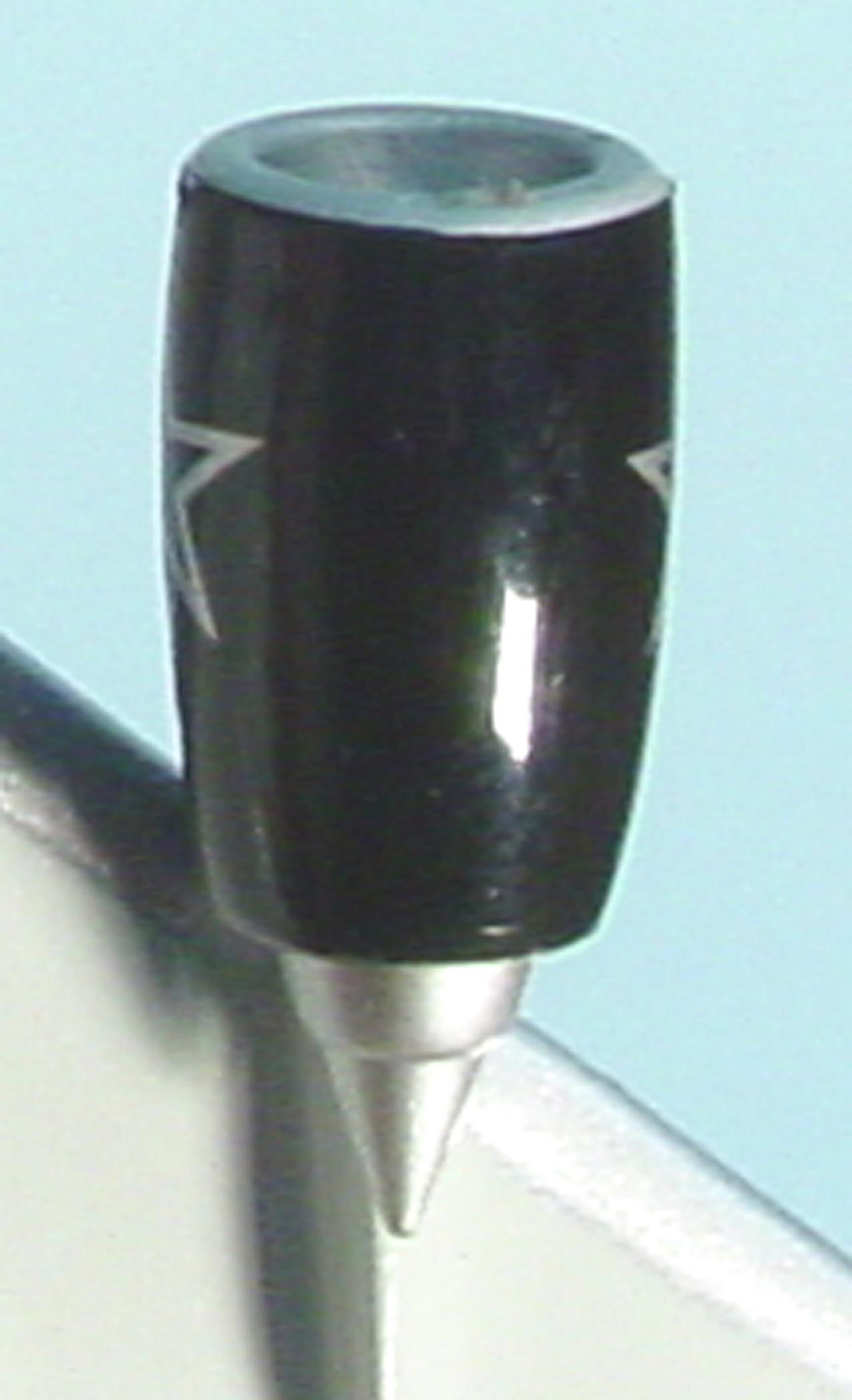

E57 RR Trent 900 . 7.7 16.8

(12.0+1.5+3.3)

A380-800 new form is E69

(introduced 2004)

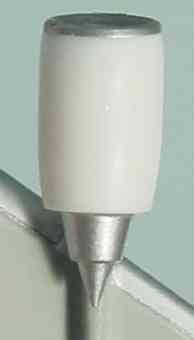

E58 RR Trent 556 5.8 14.5

(9.0+3.0+2.5)

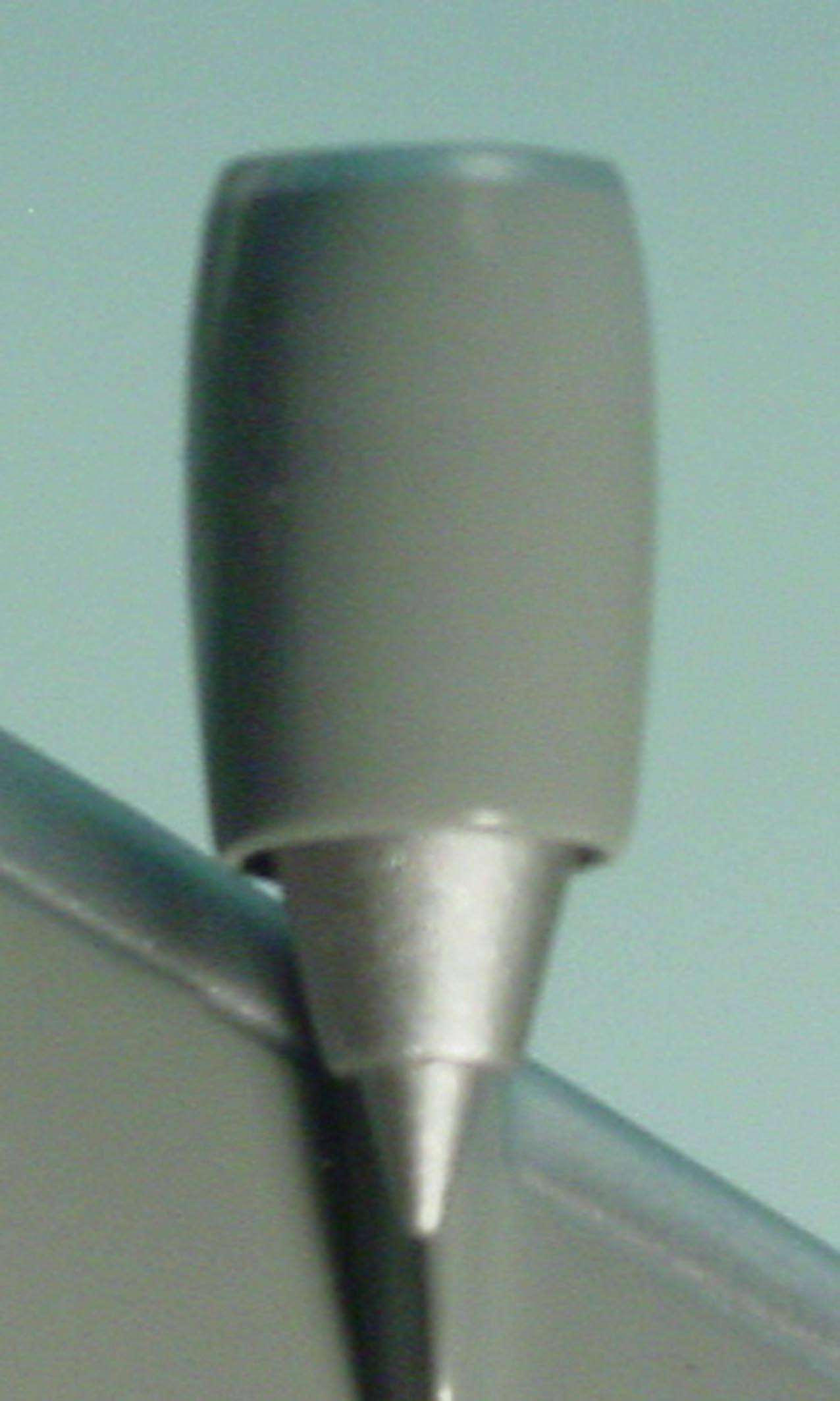

A340-600 new form is E109

(introduced 2004)

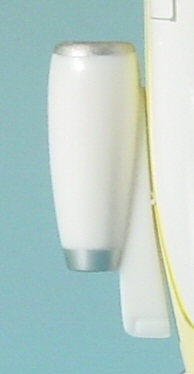

E59 IAE V2500 4.0 10.5 MD-90-30 (introduced 2004)
E60 PW JT3D-3B 4.0 12.0 DC-8-61 SJ mould

(introduced 2004)

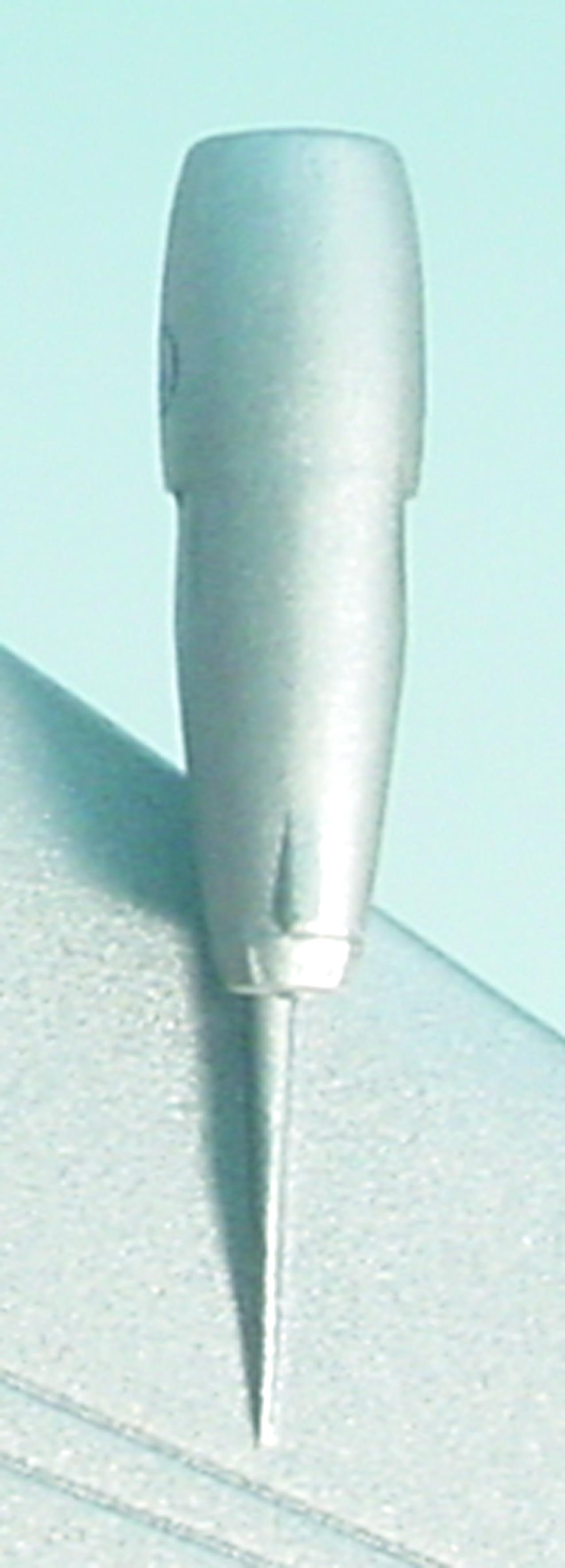

E61 PW JT3D-3B . 4.0 13.0 DC-8-51/53/55/61 (introduced 2005)

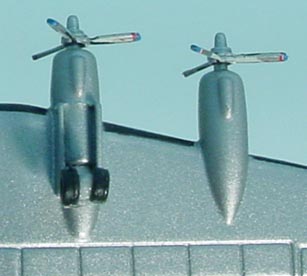

E62 Wright R-3350 . 3.5 12.0

L-1049C



L-1049H (C-121C)

three blade propeller

(introduced 2005)

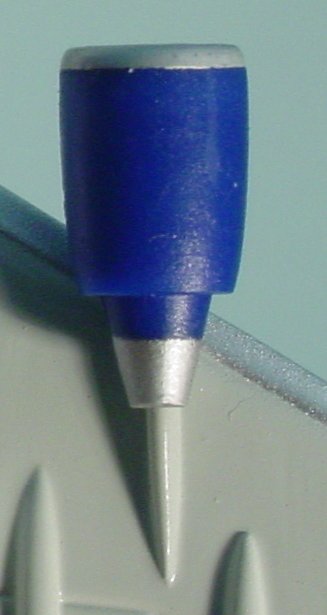

E63 PW 4168 6.3 12.1

(8.3+3.8)

A330-200/300



detailed tailpipe



(introduced 2005)

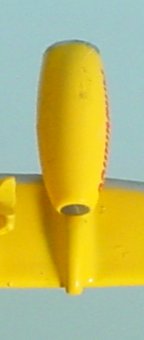

E64 PWC PW 306B 2.8 6.8 328Jet (introduced 2006)

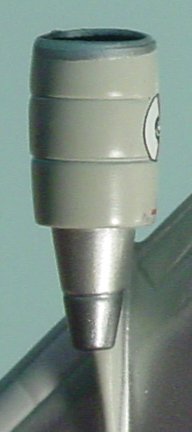

E65 GE CF6-80C 5.4 13.6

(8.1+5.5)

747-400 modified form of E02

new form is E103

(introduced 2005)

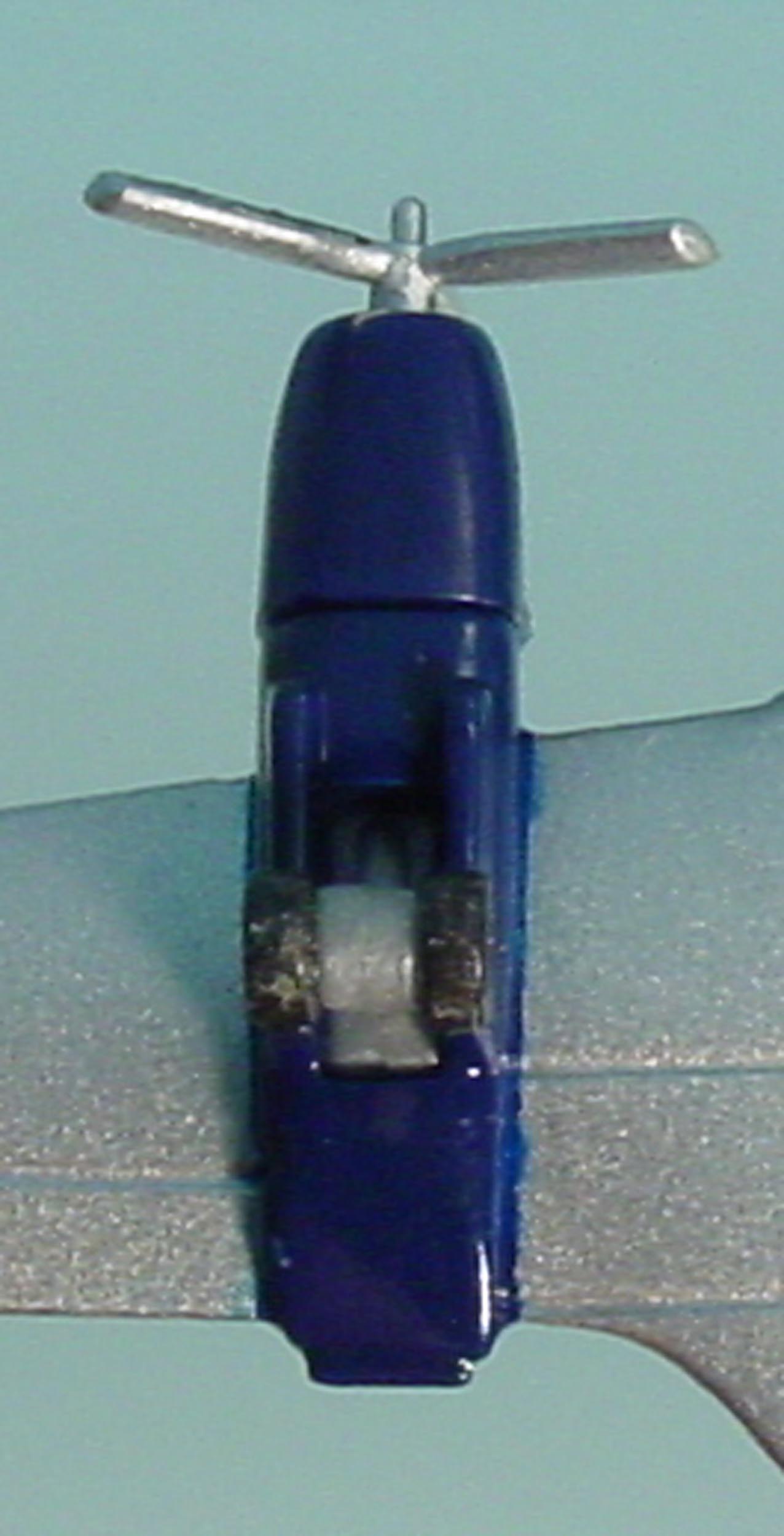

E66 PW R-2800C . 3.0 14.0 CV-440 Metropolitan three blade propeller

(introduced 2006)

E67 GE CF6-45A/50E 5.6 14.5

(8.0+5.0+1.5)

747-100/200 (introduced 2006)

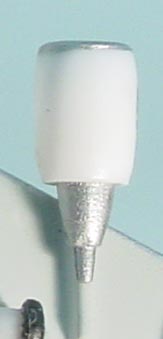

E68 GE CF34-8E 3.3 8.0

(4.5+1.5+1.0)

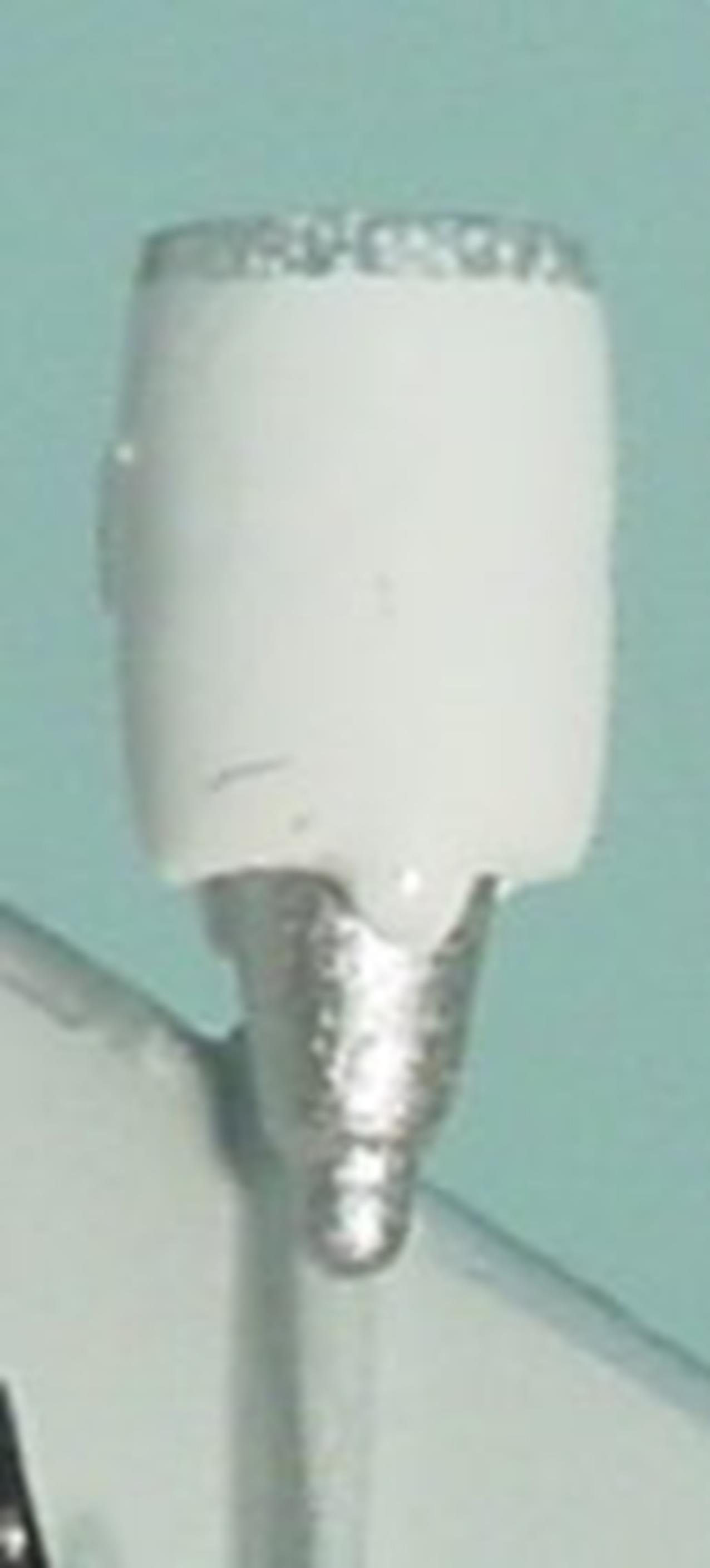

Embraer E170 new form is E136

(introduced 2006)

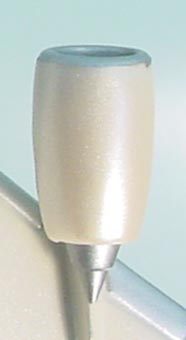

E69 RR Trent 900 7.8 16.1

(12.0+2.0+2.1)

A380-800 modified form of E57

new form is E95

(introduced 2005)

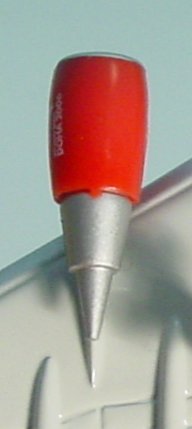

E70 GE CF6-80E 5.0 16.0

(8.0+4.0+4.0)

A330-200/300

MD-11

modified form of E42

new form is E96

(introduced 2006)

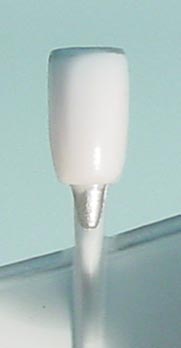

E71 Lycoming ALF502 / LF507 3.1 6.4

(4.8+1.6)

BAe 146



Avro RJ

modified form of E18 with engraved engine intake

(introduced 2006)

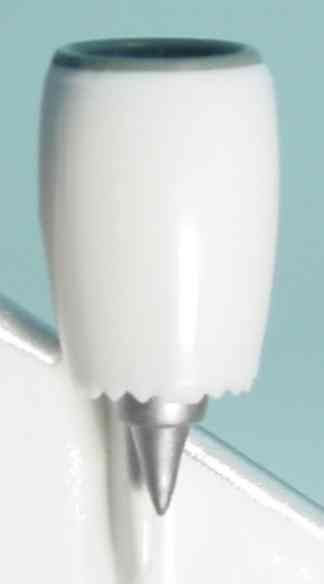

E72 RR Trent 1000 8.0 15.0

(11.0+1.0+3.0)

787-8 new form is E111

(introduced 2007)

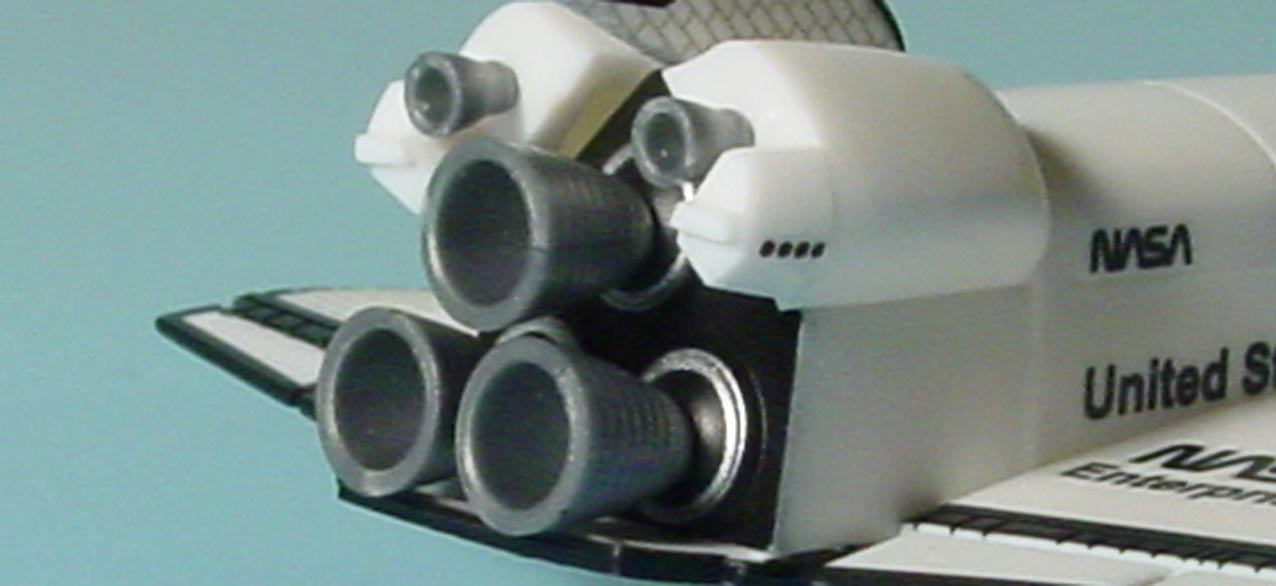

E73 SSME - Space Shuttle Main Engine 5.0 -- Space Shuttle (introduced 2007)

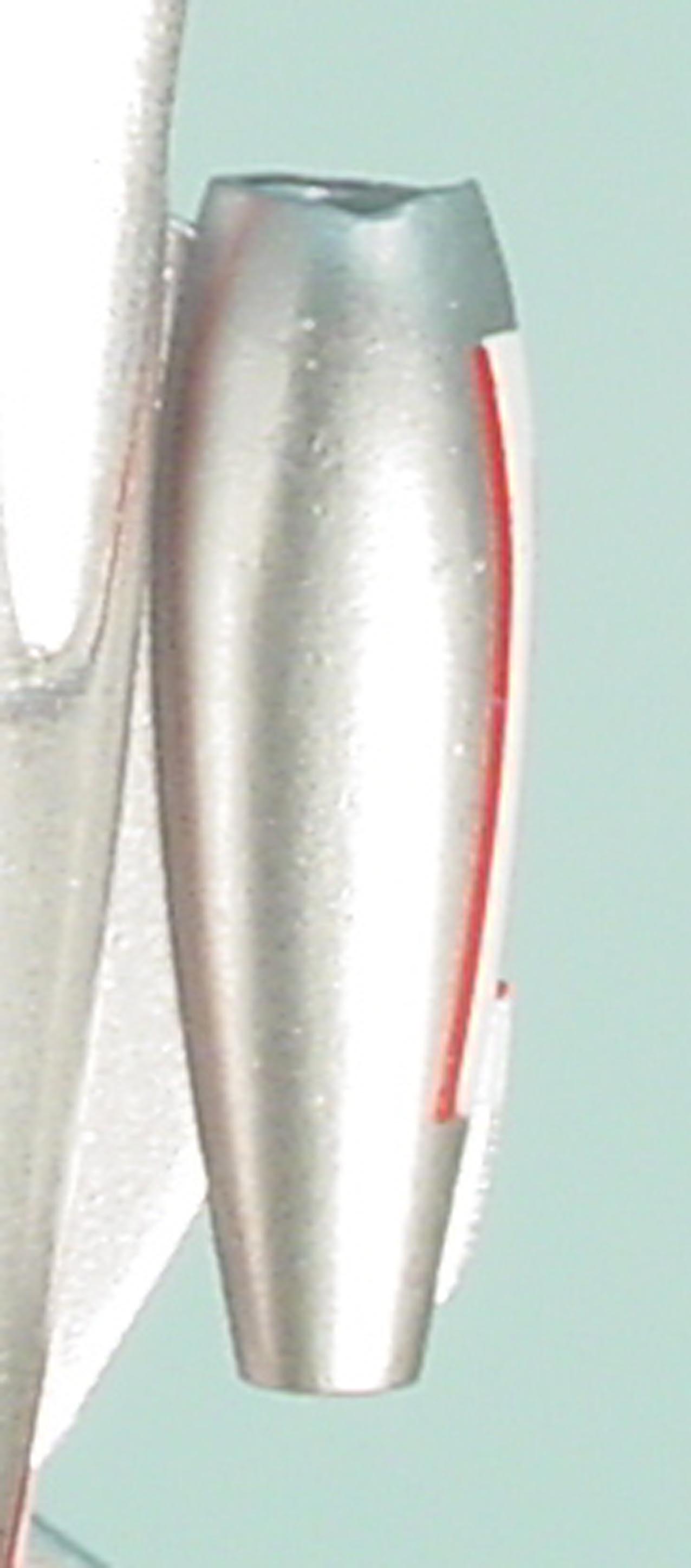

E74 PW JT8D 3.2 11.0 Caravelle 10R (introduced 2007)

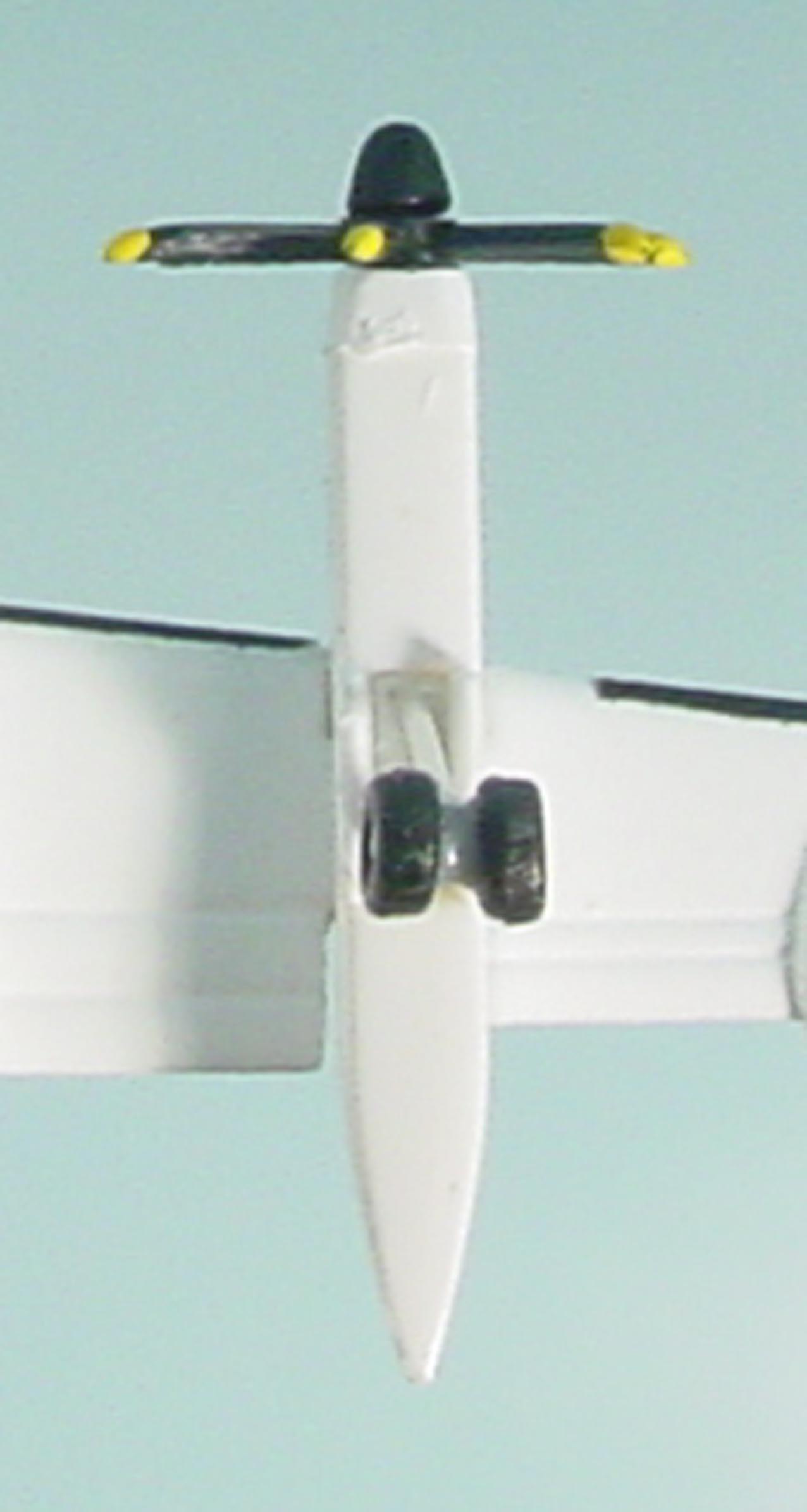

E75 PWC PW 150A 3.4 16.4

Dash 8 Q400

six blade propeller

(introduced 2007)

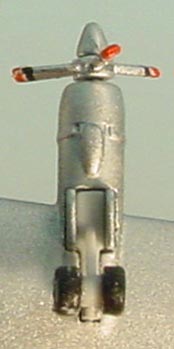

E76 PW R-2800C 3.2 13.2

DC-6B / VC-118

three blade propeller

(introduced 2008)

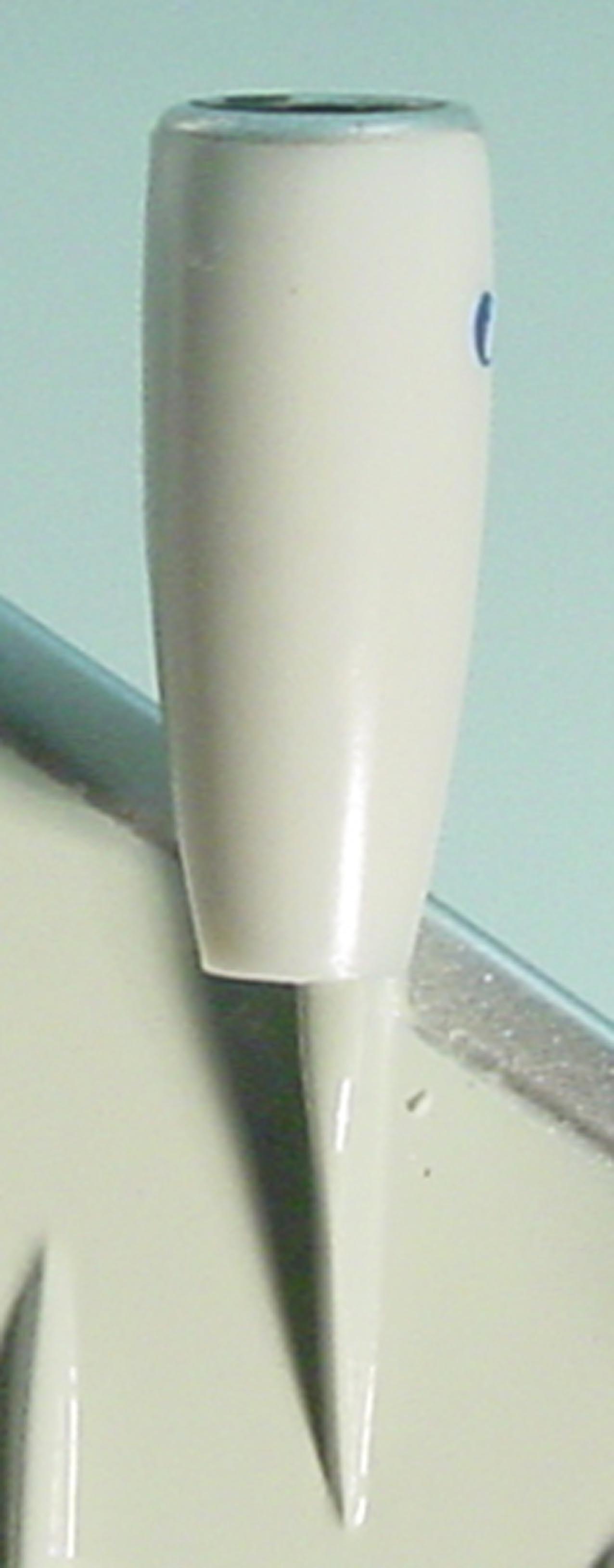

E77 Aviadvigatel PS-90A 4.9 12.3

IL-96-300



Tu-204/214

(introduced 2008)

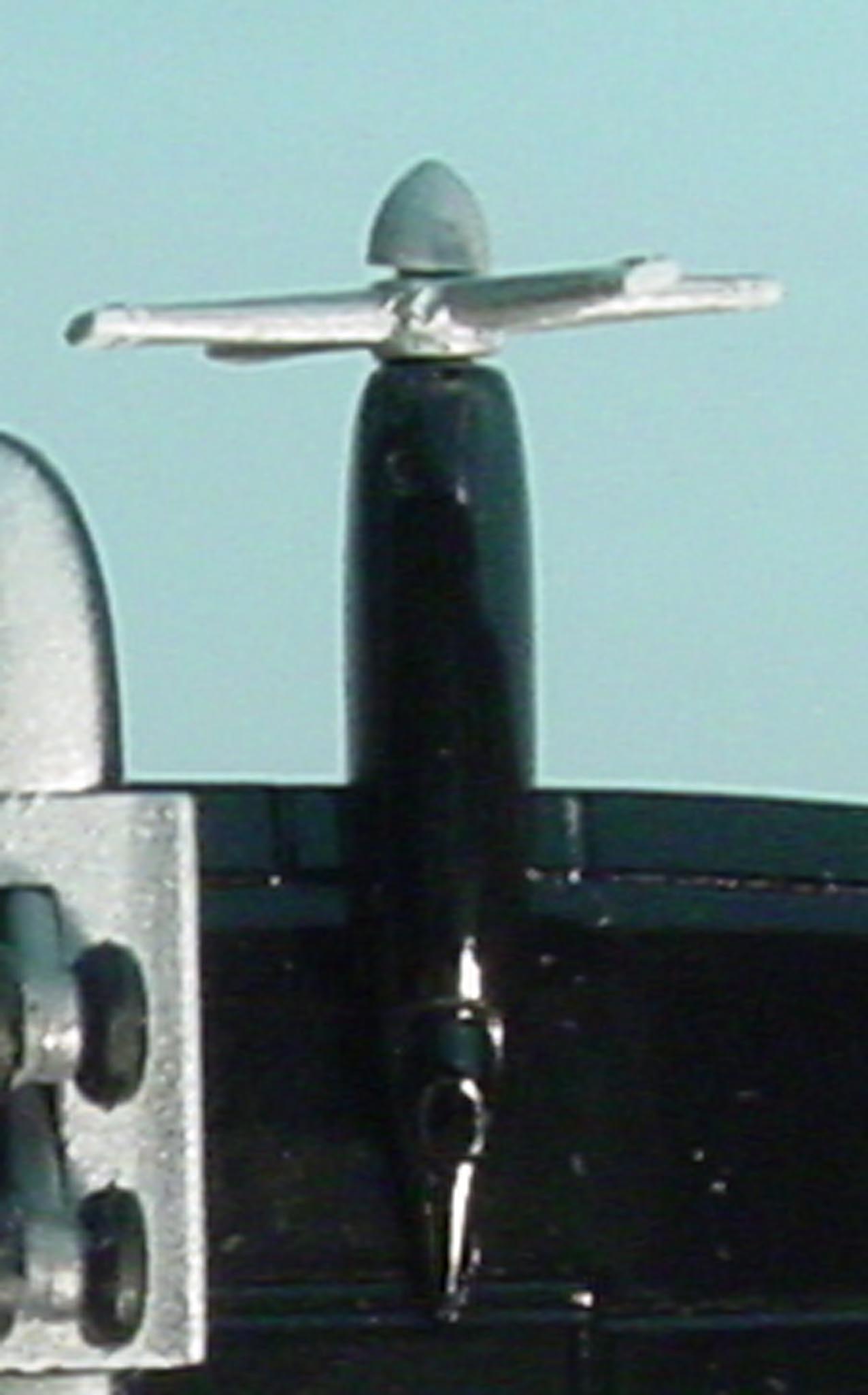

E78 RR Tyne Mk 22 2.6 15.6

C-160

four blade propeller

(introduced 2008)

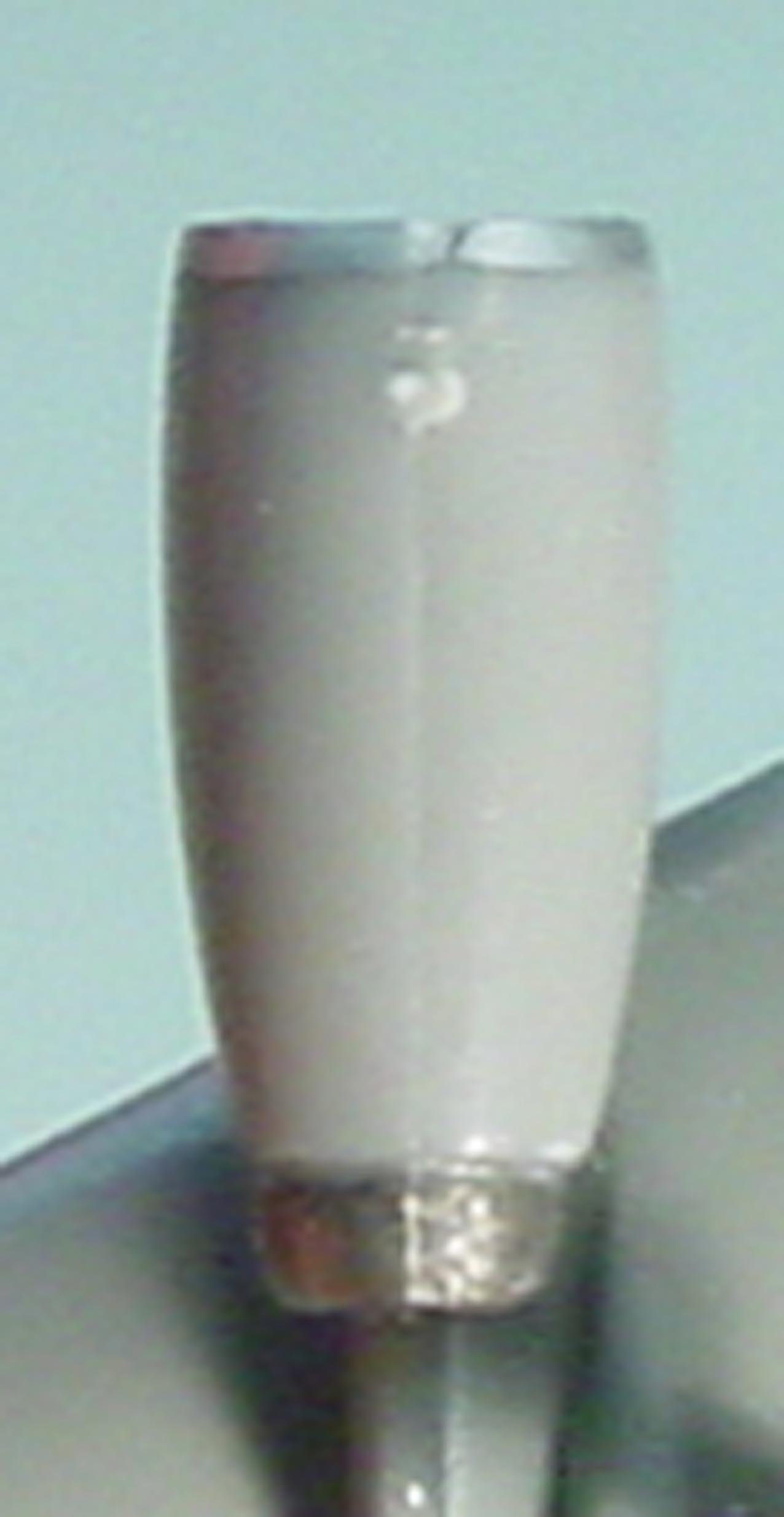

E79 IAE V2500 4.3 9.5

A318-100

A319-100

A320-200

A321-100/200

modified form of  E56 with two additional flaps

new form is E101

(introduced 2005)

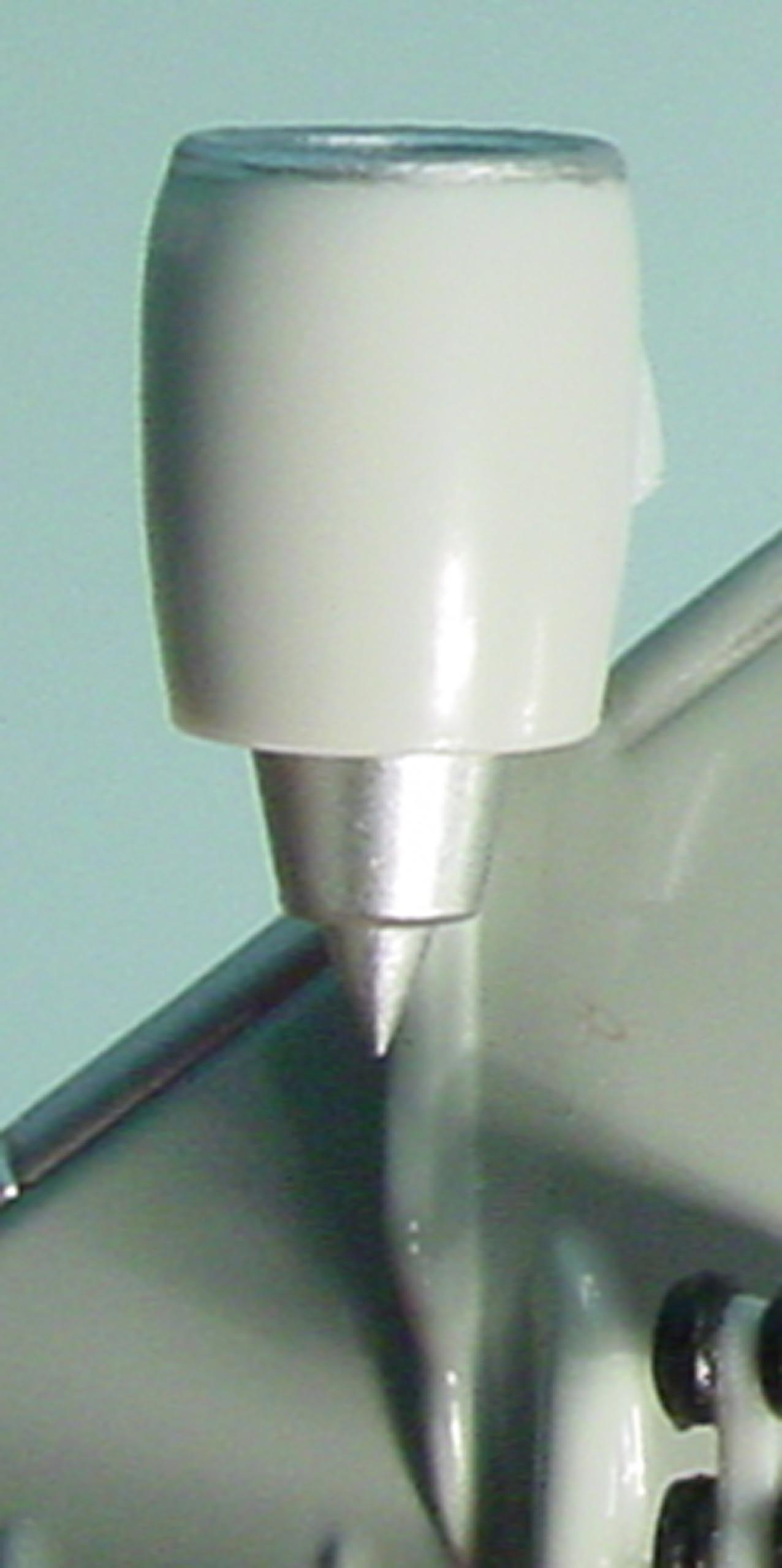

E80 GE 90 8.1 15.3

(10.0+3.2+2.1)

777-200/300



777F

modified form of E03 with one additional flap

(introduced 2008)

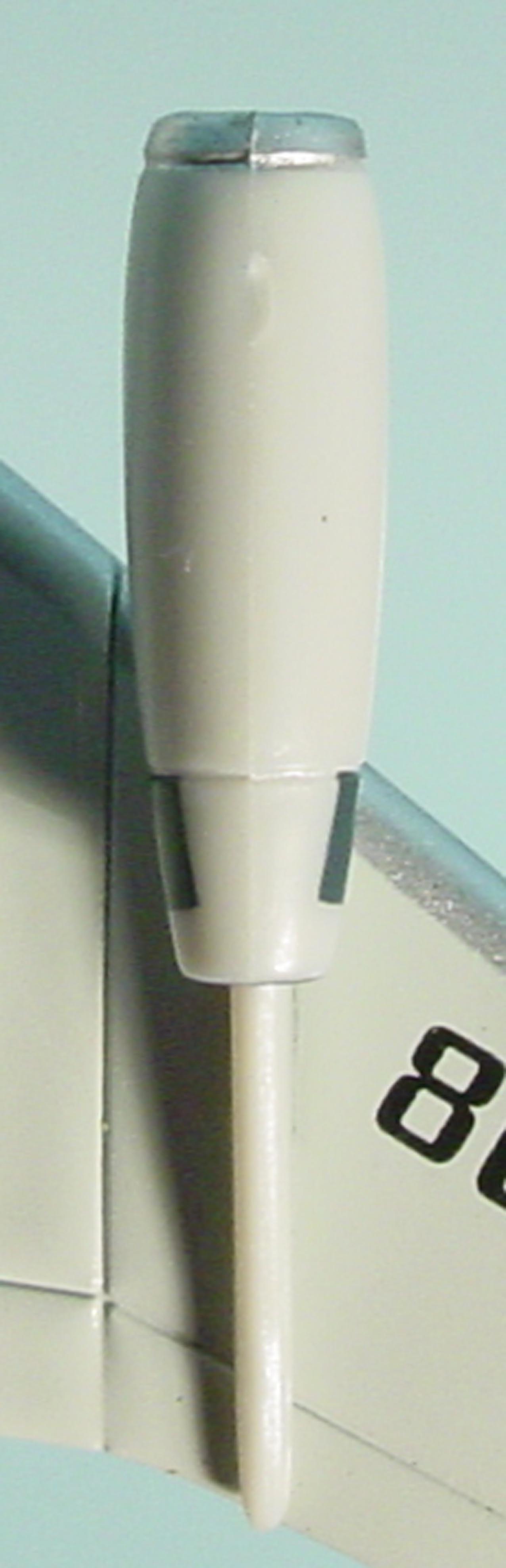

E81 Kuznetsov NK-86 4.7 15.4

IL-86

(introduced 2008)

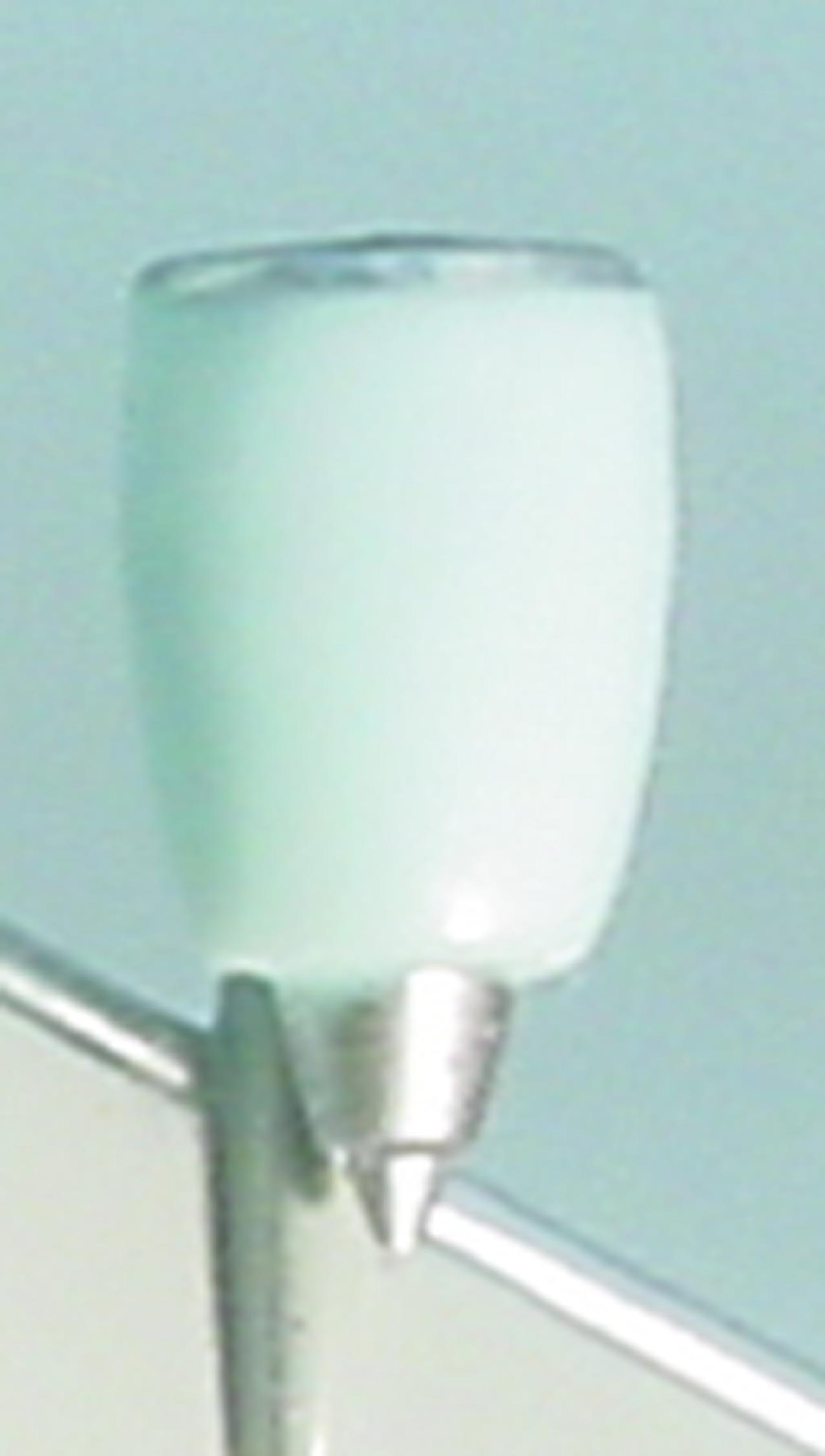

E82 GE CF34-10 4.4 8.0

(5.7+1.3+1.0)

Embraer E190 new form is E137

(introduced 2008)

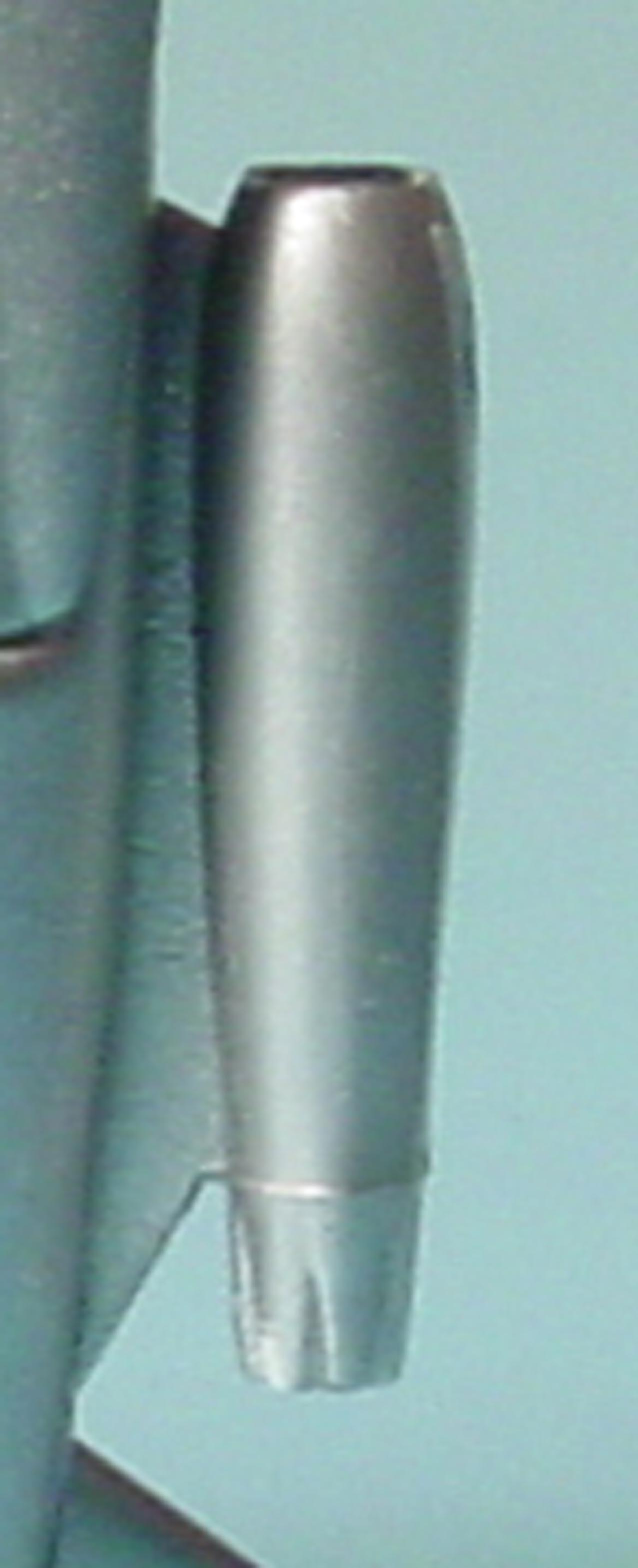

E83 RR Avon 527 2.6 11.4

(9.4+2.0)

Caravelle 3

Caravelle 6N / 6R

(introduced 2008)

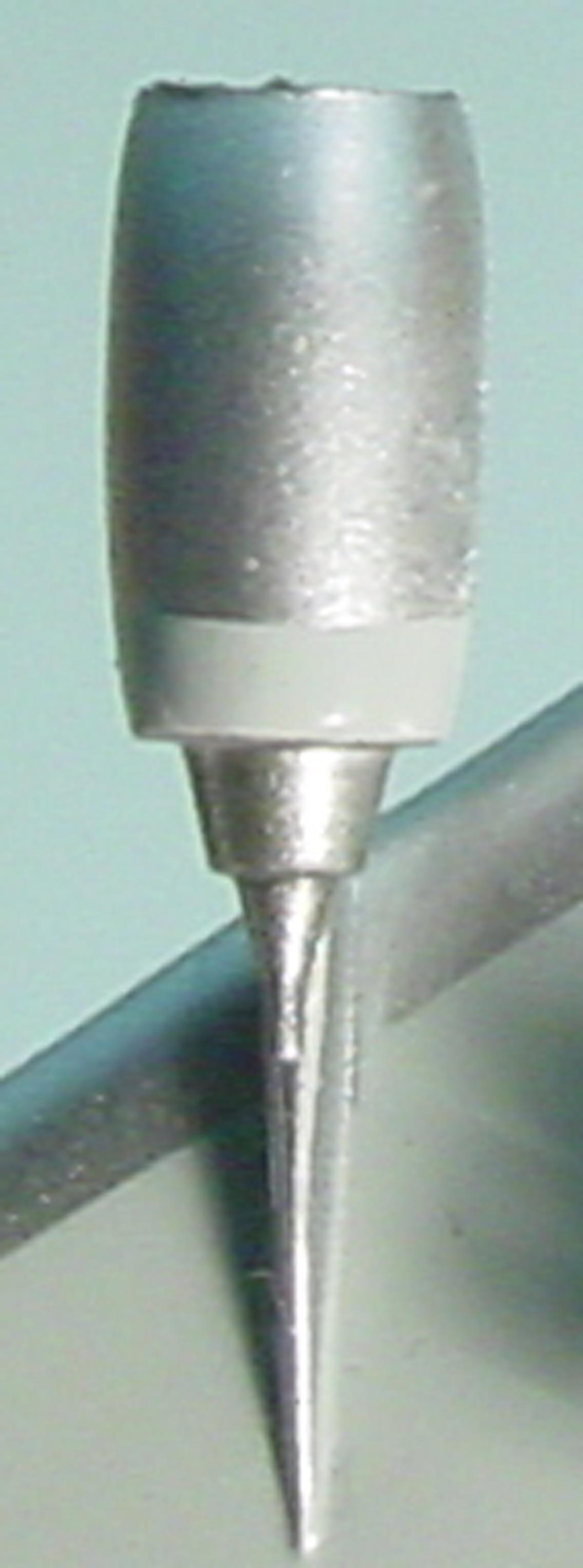

E84 CFM 56-2C5 4.3 10.8

(7.4+1.6+1.8)

DC-8-73 (introduced 2008)

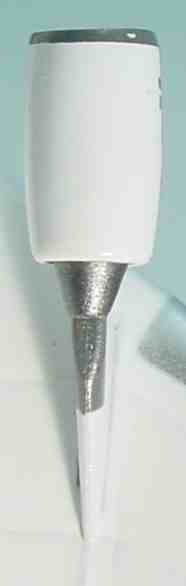

E85 Lotarev D-18T 6.0 12.5

(10.1+2.4)

AN-225 Mriya (introduced 2009)

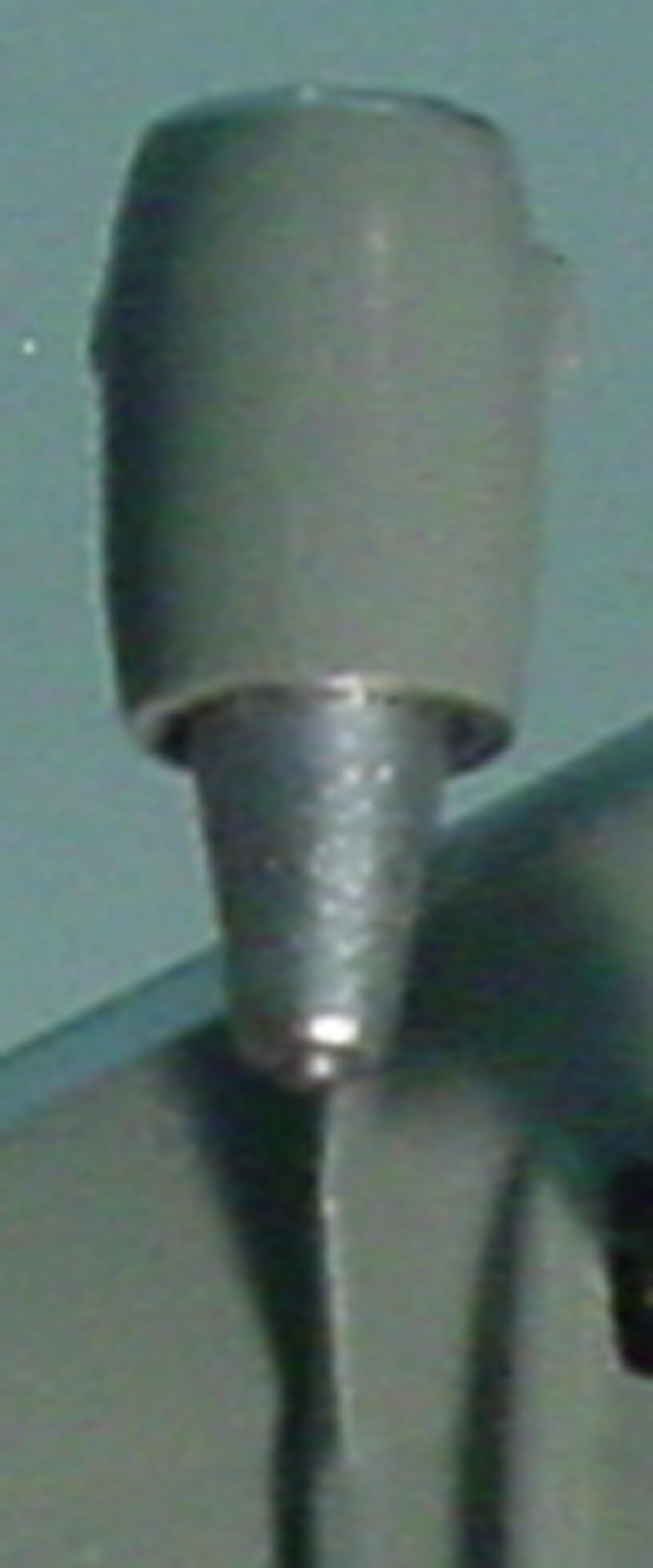

E86 CFM 56-5A/B 4.5 9.9

(6.3+3.6)

A319CJ

A319-100

A320-200

A321-100/200

modified form of E52 with two flaps

new form is E94

(introduced 2009)

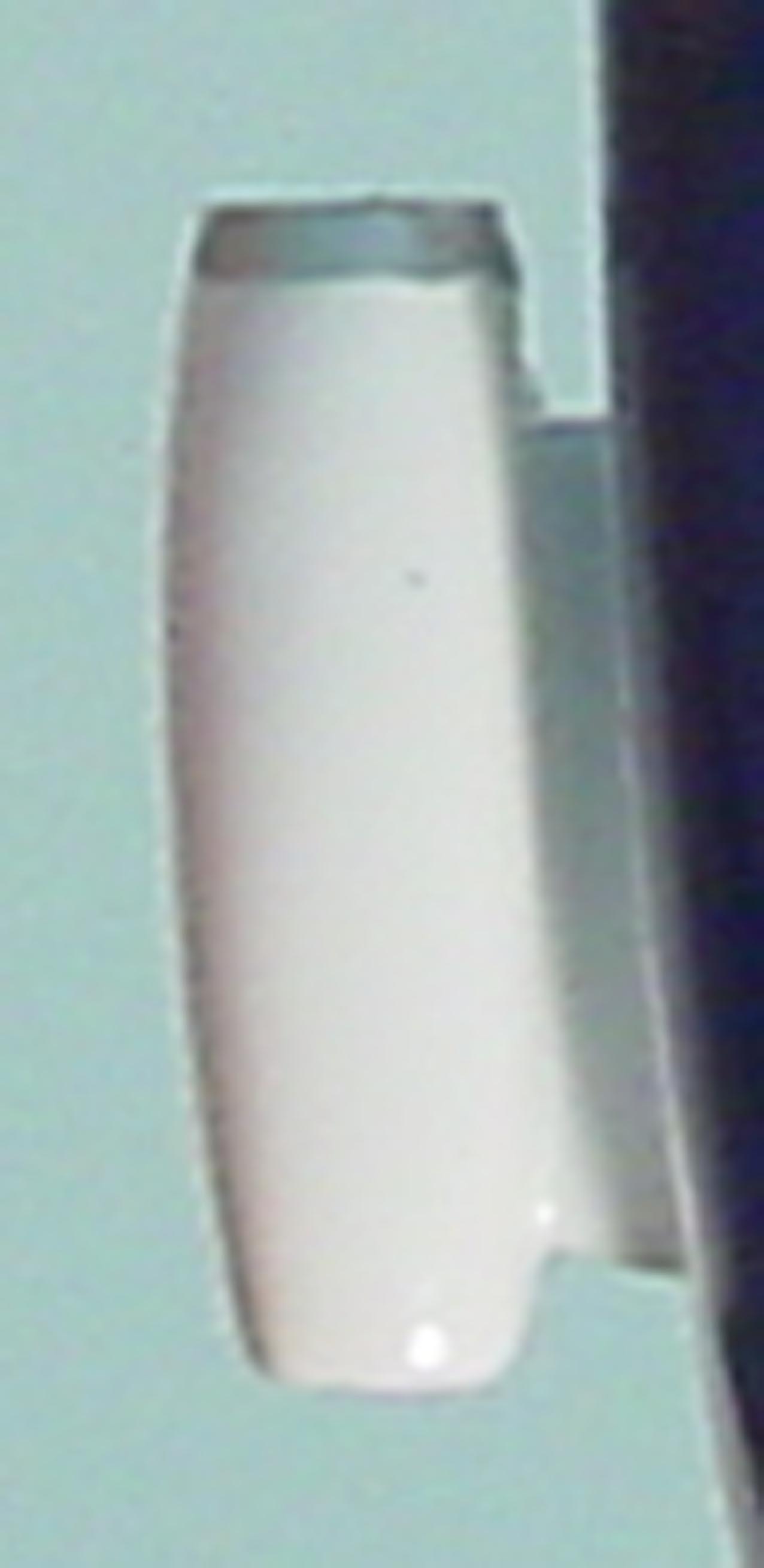

E87 RR AE-3007A 3.4 9.1 ERJ 145 (introduced 2009)

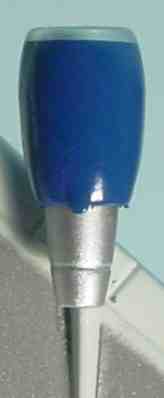

E88 PW 4062 6.0 13.5

(8.8+2.9+1.8)

747-400LCF Dreamlifter (introduced 2009)

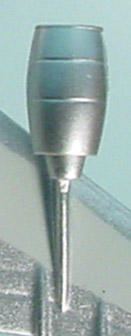

E89 RR RB211-22B/-524 6.1 11.5

(9.6+1.9)

L-1011 modified form of E14

new form is E90

(introduced 2009)

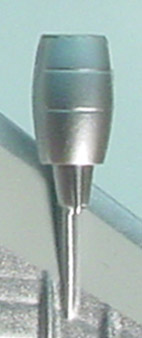

E90 RR RB211-22B/-524 6.1 12.8

(9.6+3.2)

L-1011 modified form of E89

(introduced 2009)

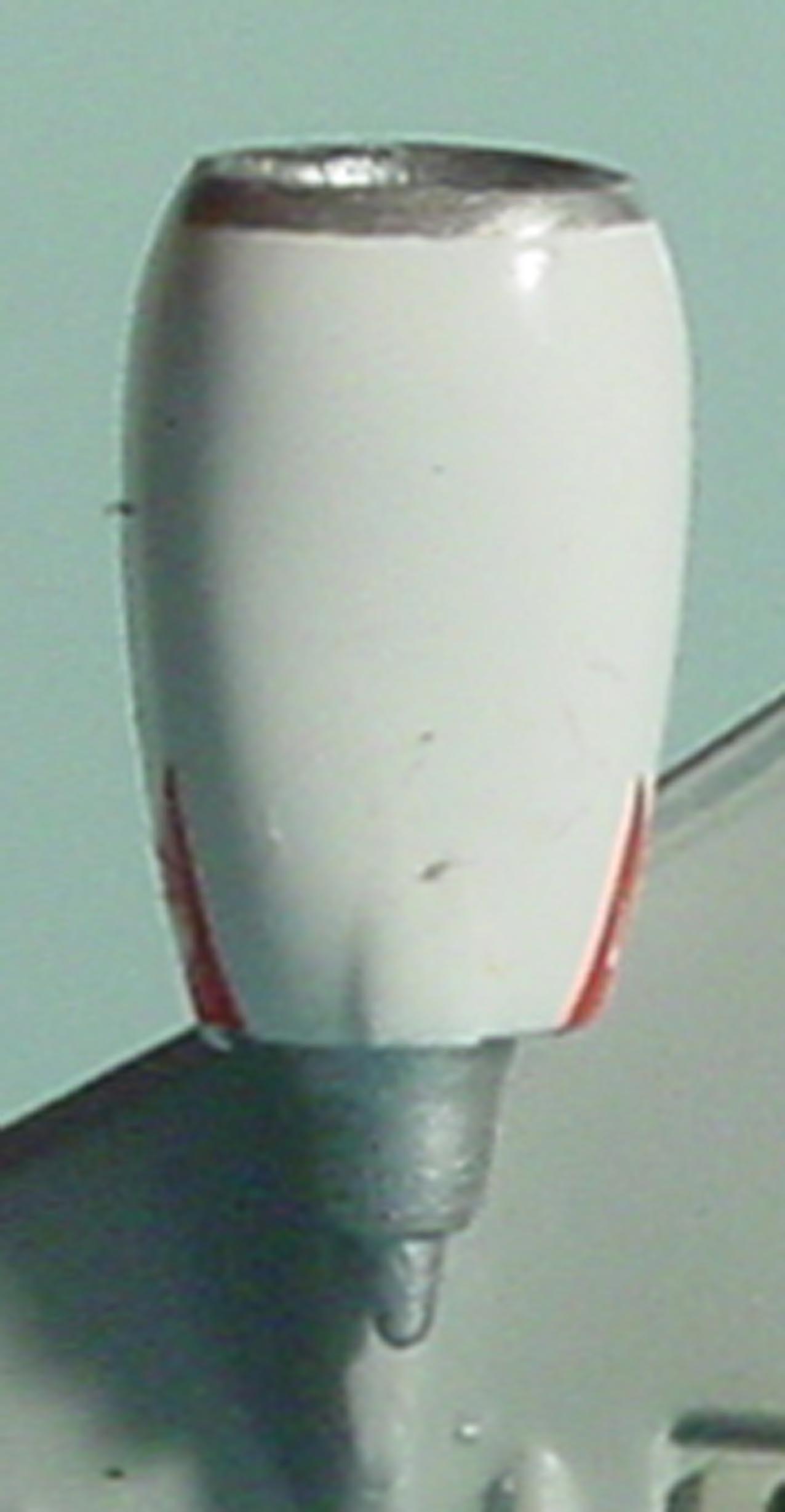

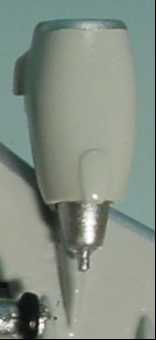

E91 CFM 56-7B 4.7 10.4

(7.8+1.6+1)

737-700/800/900 modified form of E37

new form is E128

(introduced 2009)

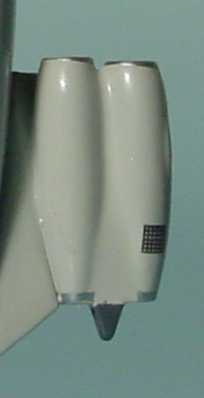

E92 RR Conway 43 3.5 11.7 Super VC-10

(introduced 2008)

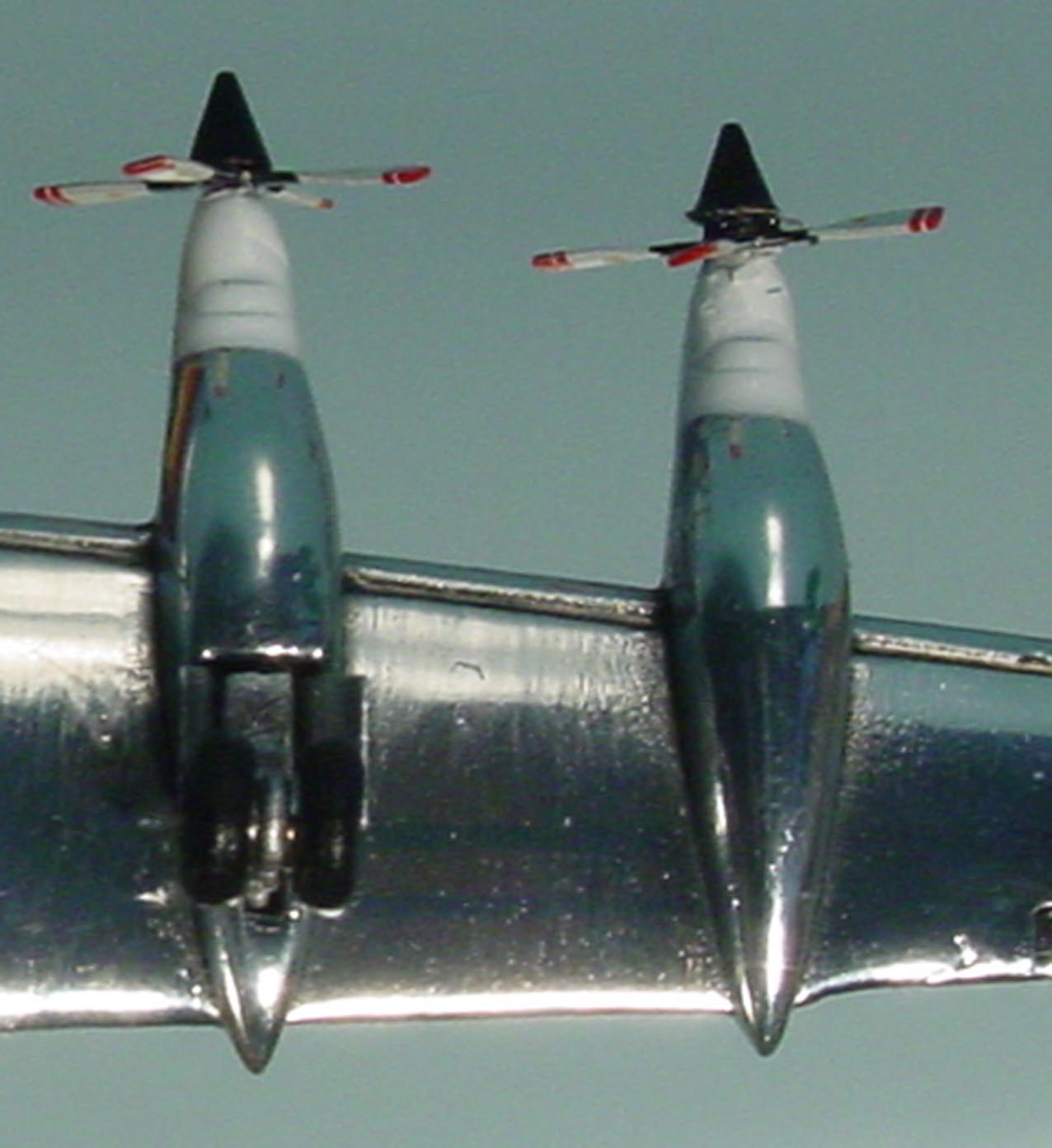

E93 Allison 501-D22C -- -- 377SGT Super Guppy

four blade propeller

(introduced 2009)

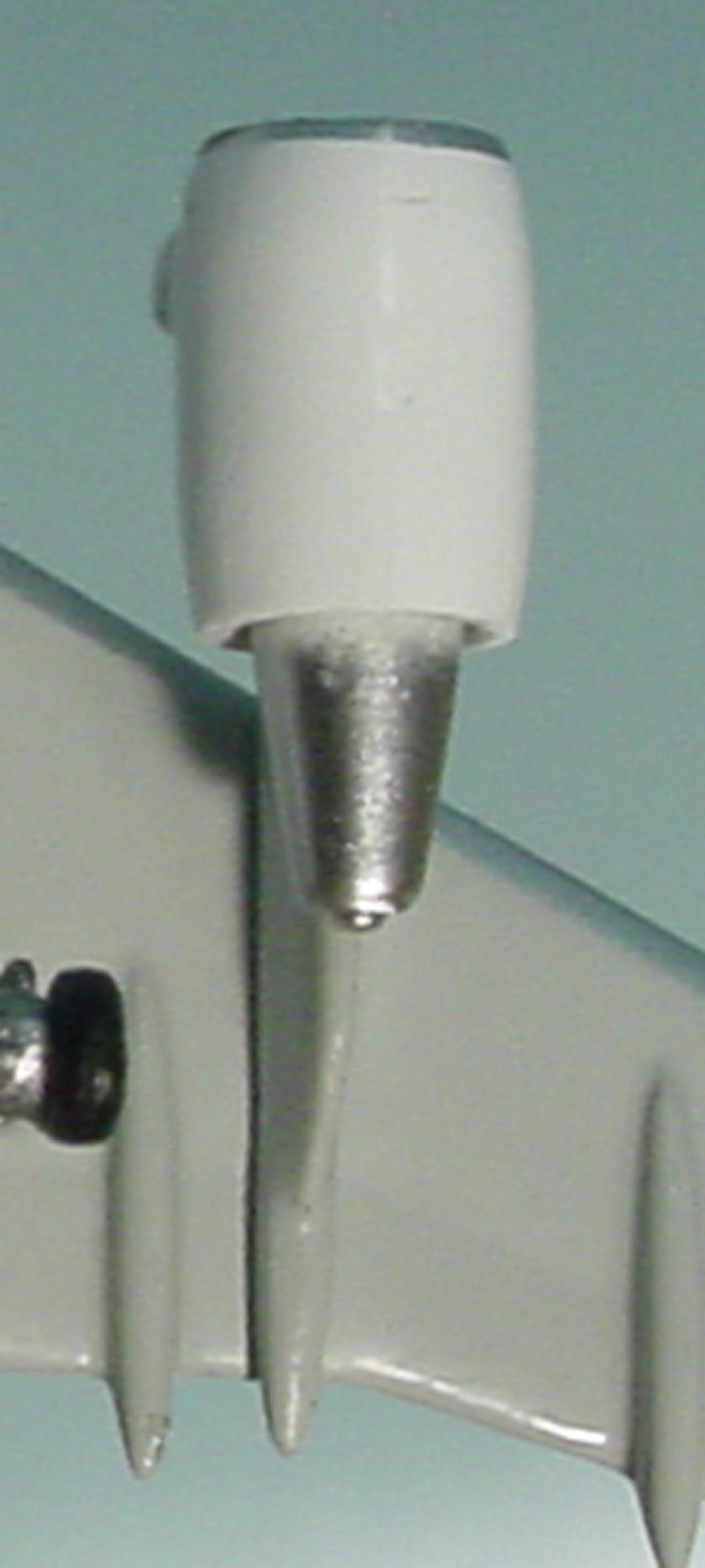

E94 CFM 56-5A/B 4.5 9.9

(6.3+3.6)

A319-100

A320-200

modified form of E86 with one flap

new form is E142

(introduced 2009)

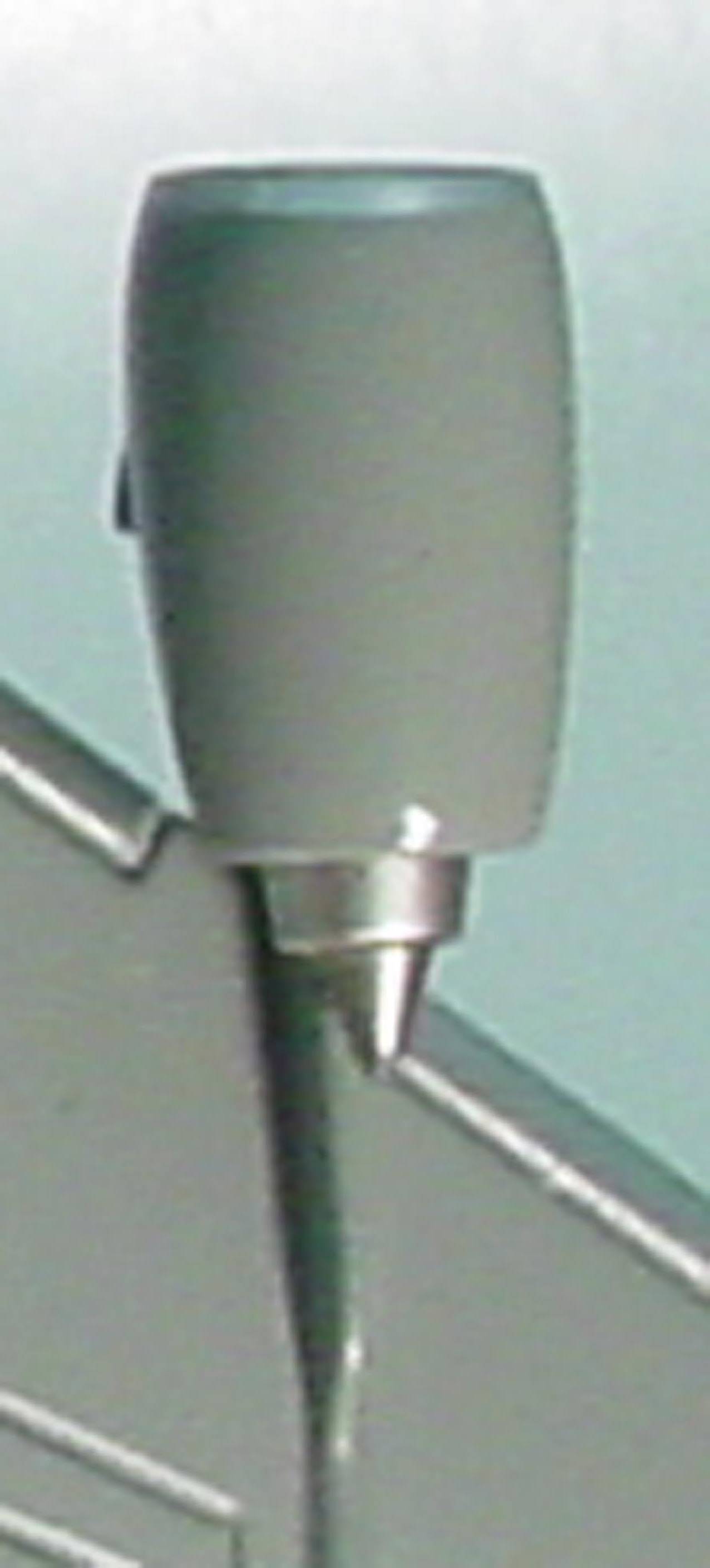

E95 RR Trent 900 7.8 16.1

(12.0+2.0+2.1)

A380-800 modified form of E69 with one additional flap

(introduced 2008)

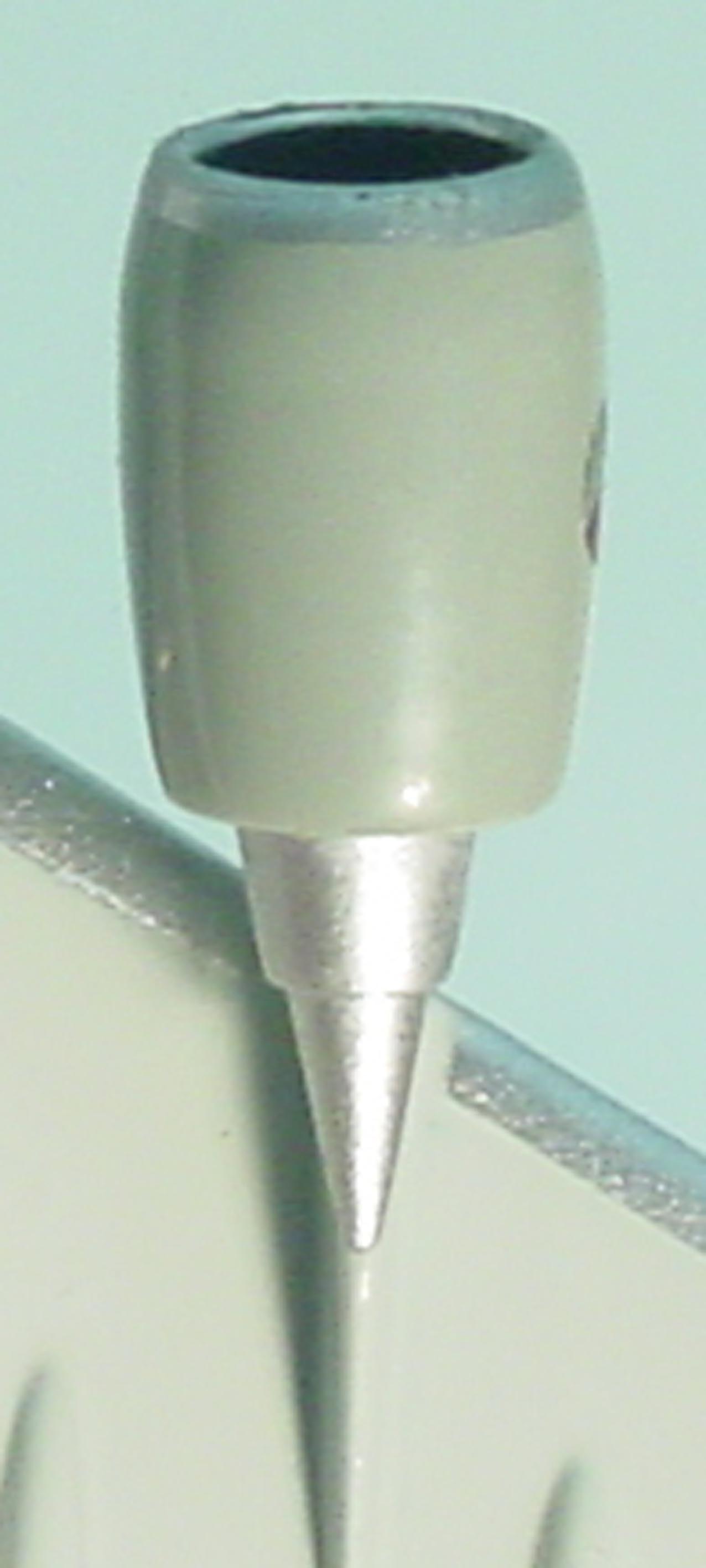

E96 GE CF6-80E 6.2 14.2

(8.3+2.5+3.4)

A330-200/300 modified form of  E70

(introduced 2010)

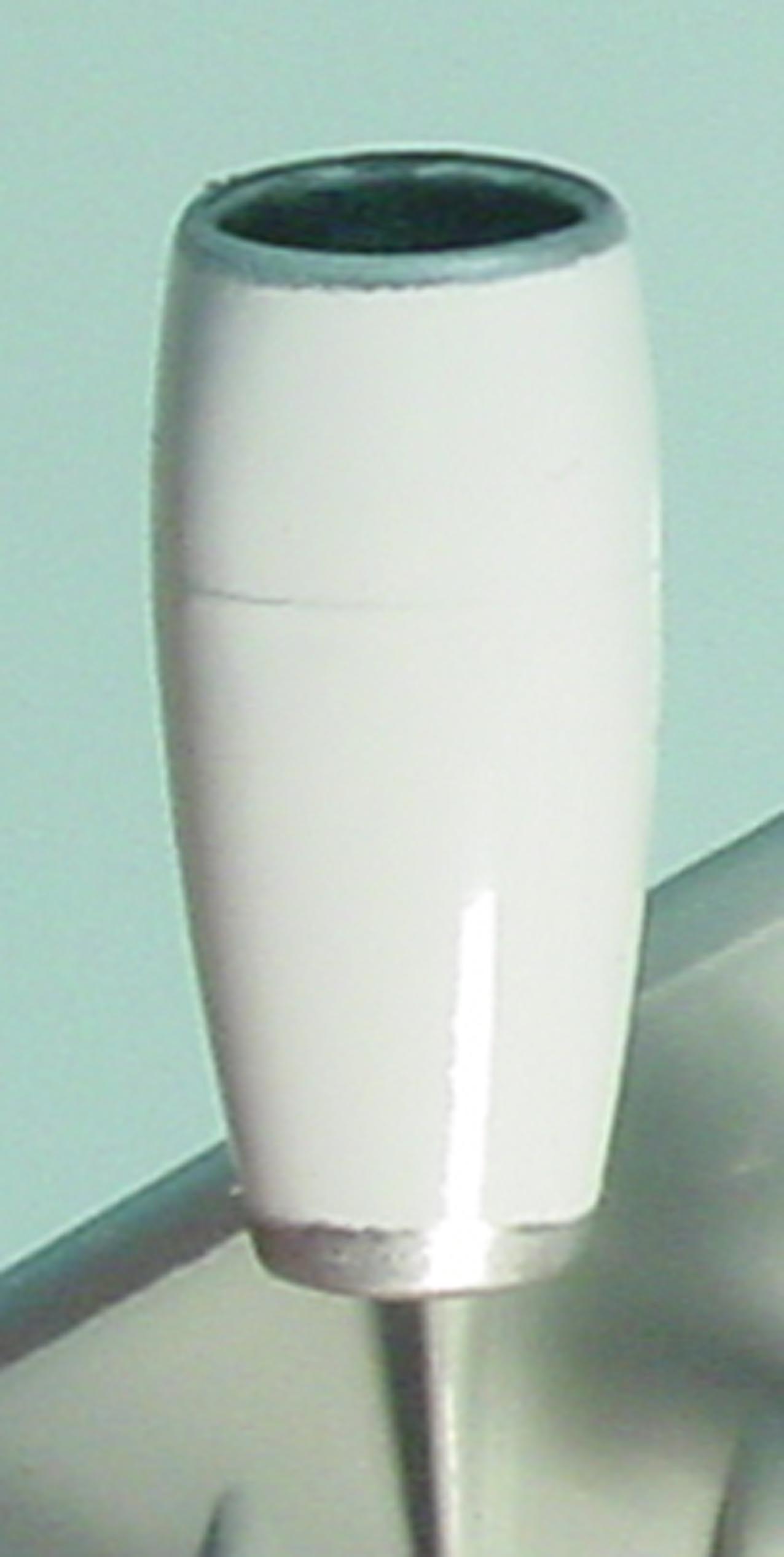

E97 RR Trent 700 6.0 13.6

A330-200/300



A330-700L

modified form of E24



detailed tailpipe



(introduced 2010)

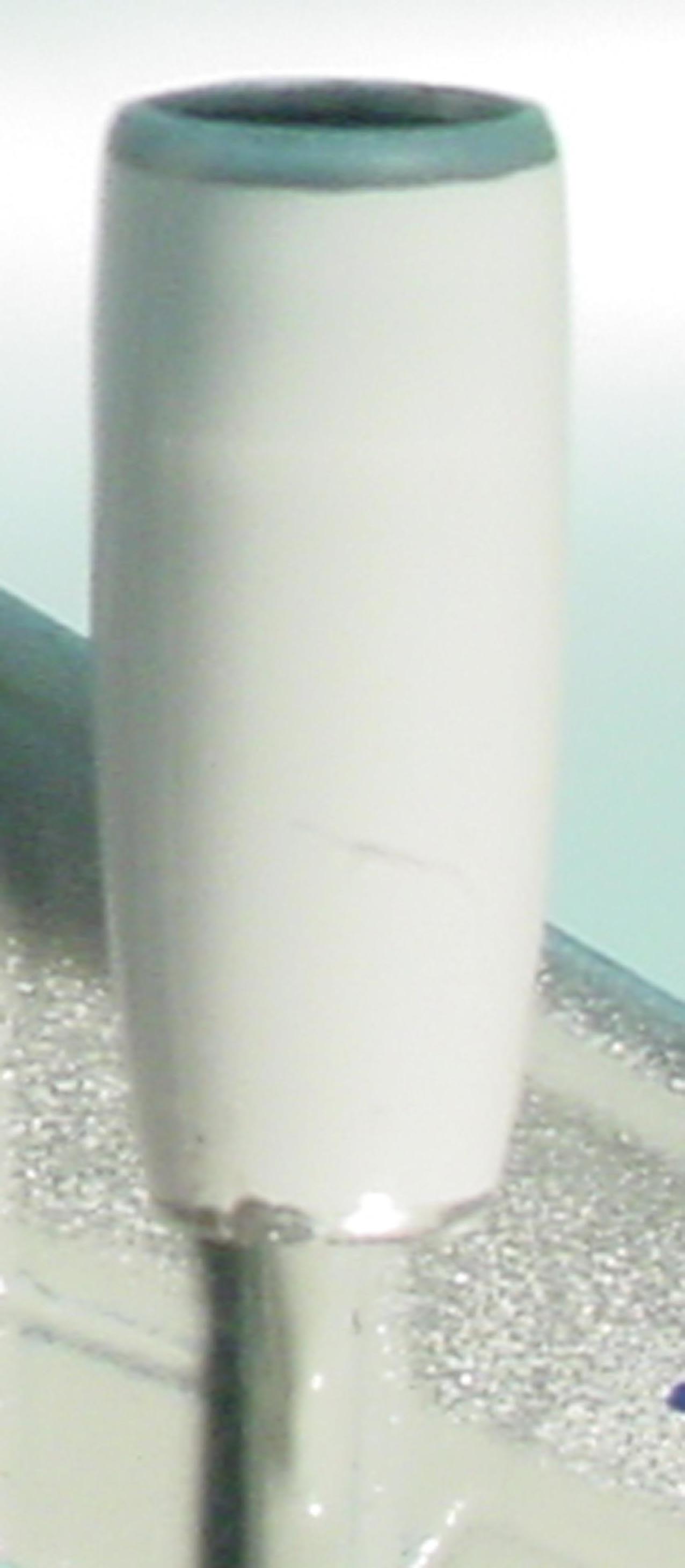

E98 CFM 56-5C 4.8 11.2

A340-200/300

modified form of E24



detailed tailpipe



(introduced 2010)

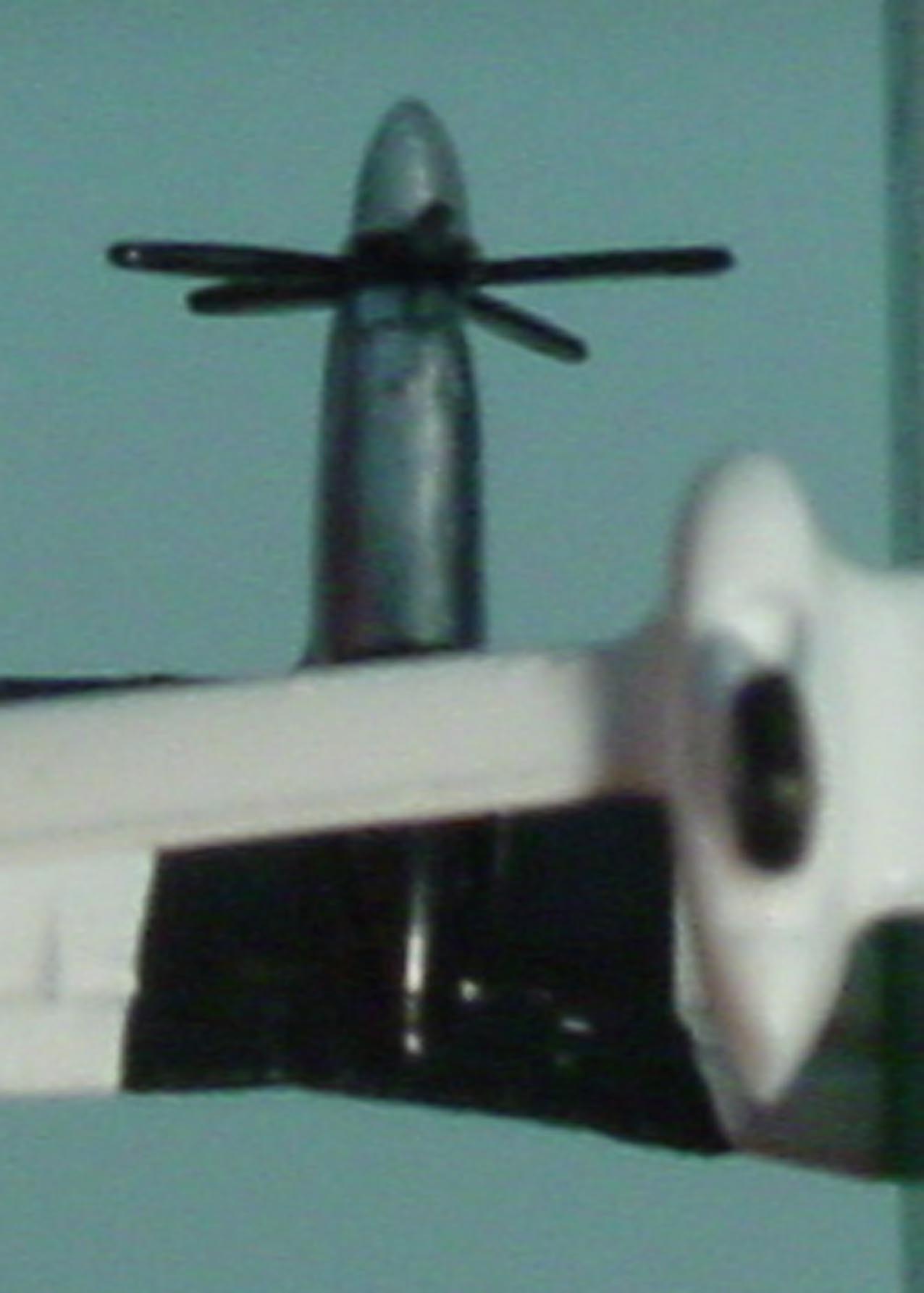

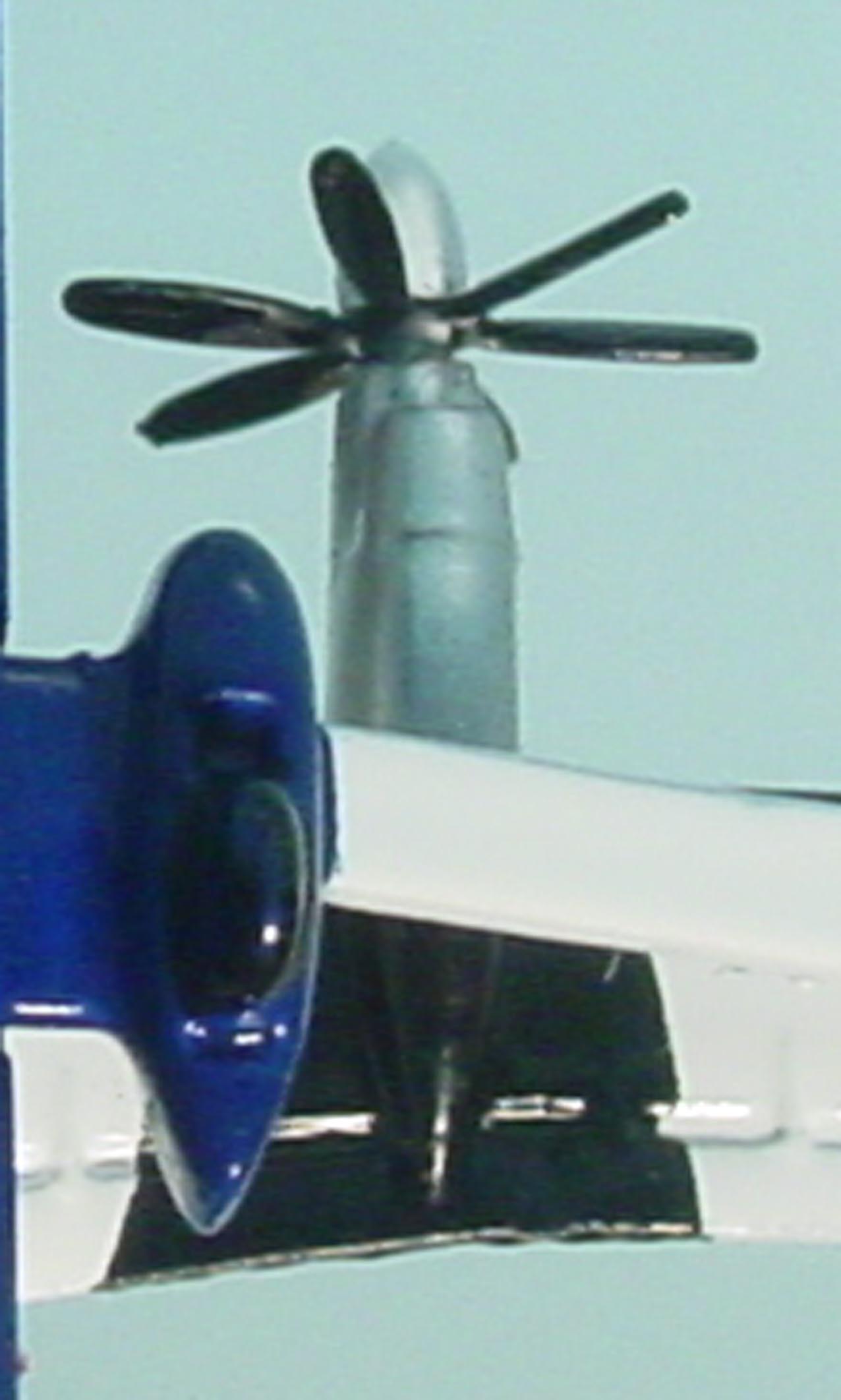

E99 PWC PW PT6A

-- -- Shorts 360-100/300 five blade propeller (360-100)

six blade propeller (360-300)

(introduced 2010)

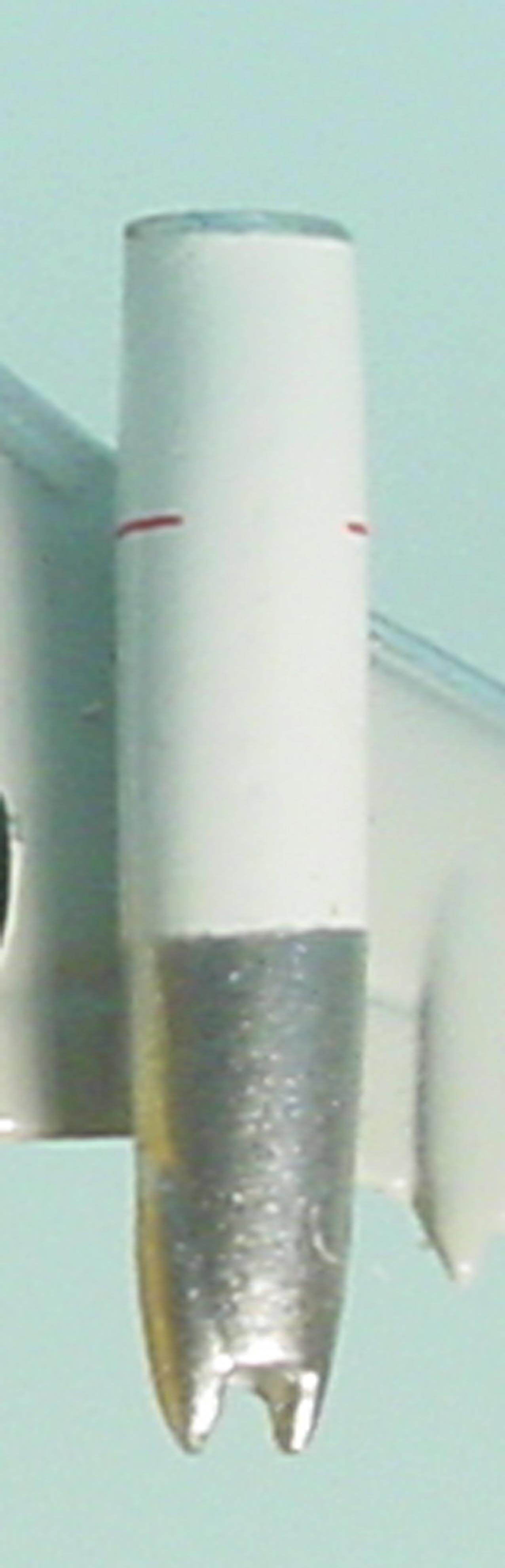

E100 PW JT8D 2.7 13.2

737-100/200

modified form of E36 with two longer flaps at the end

detailed tailpipe

(introduced 2010)

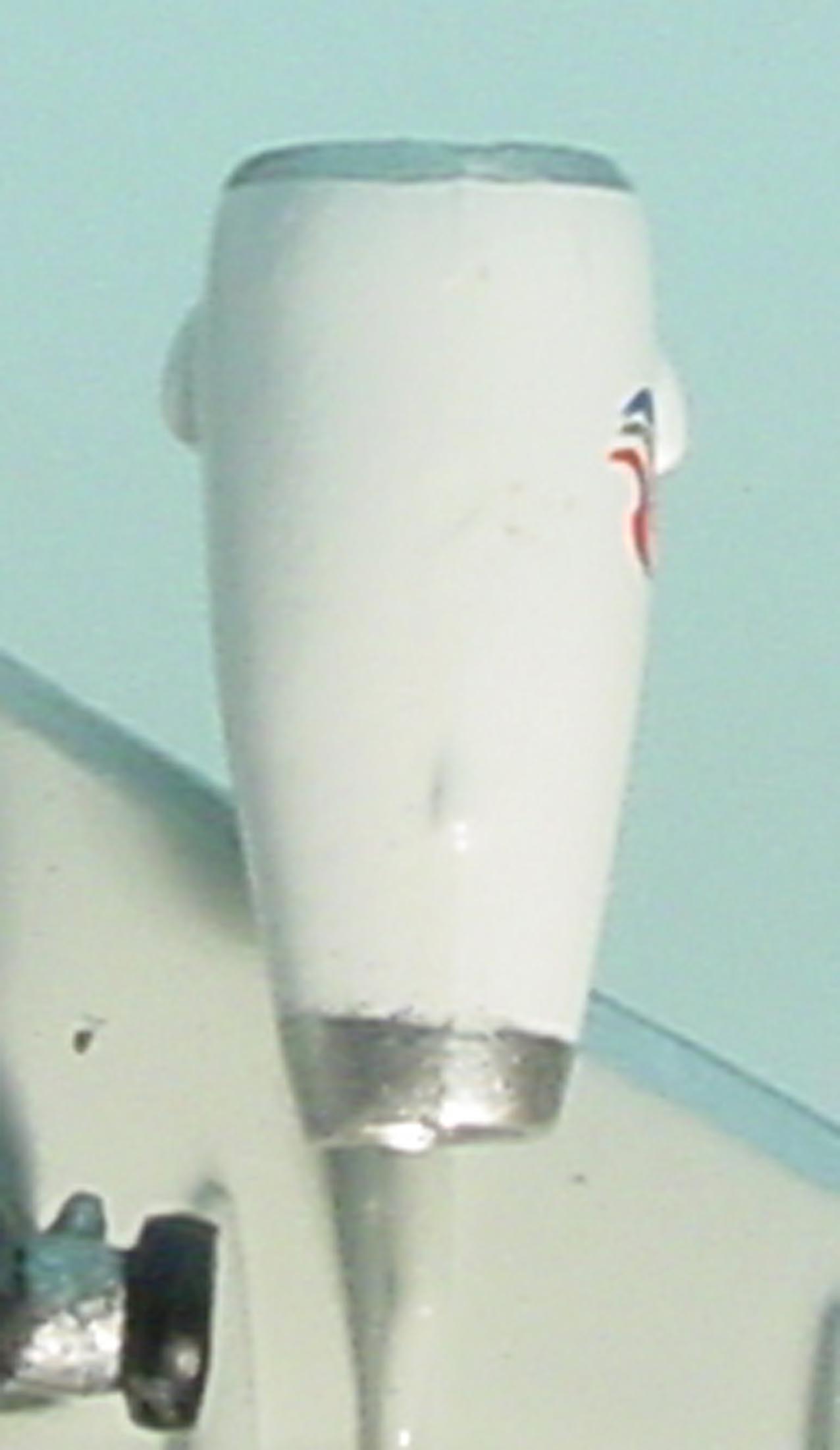

E101 IAE V2500 4.6 10.1

A319CJ



A319-100



A321-100/200

modified form of E79 with two flaps and

detailed tailpipe



new form is E113



(introduced 2010)

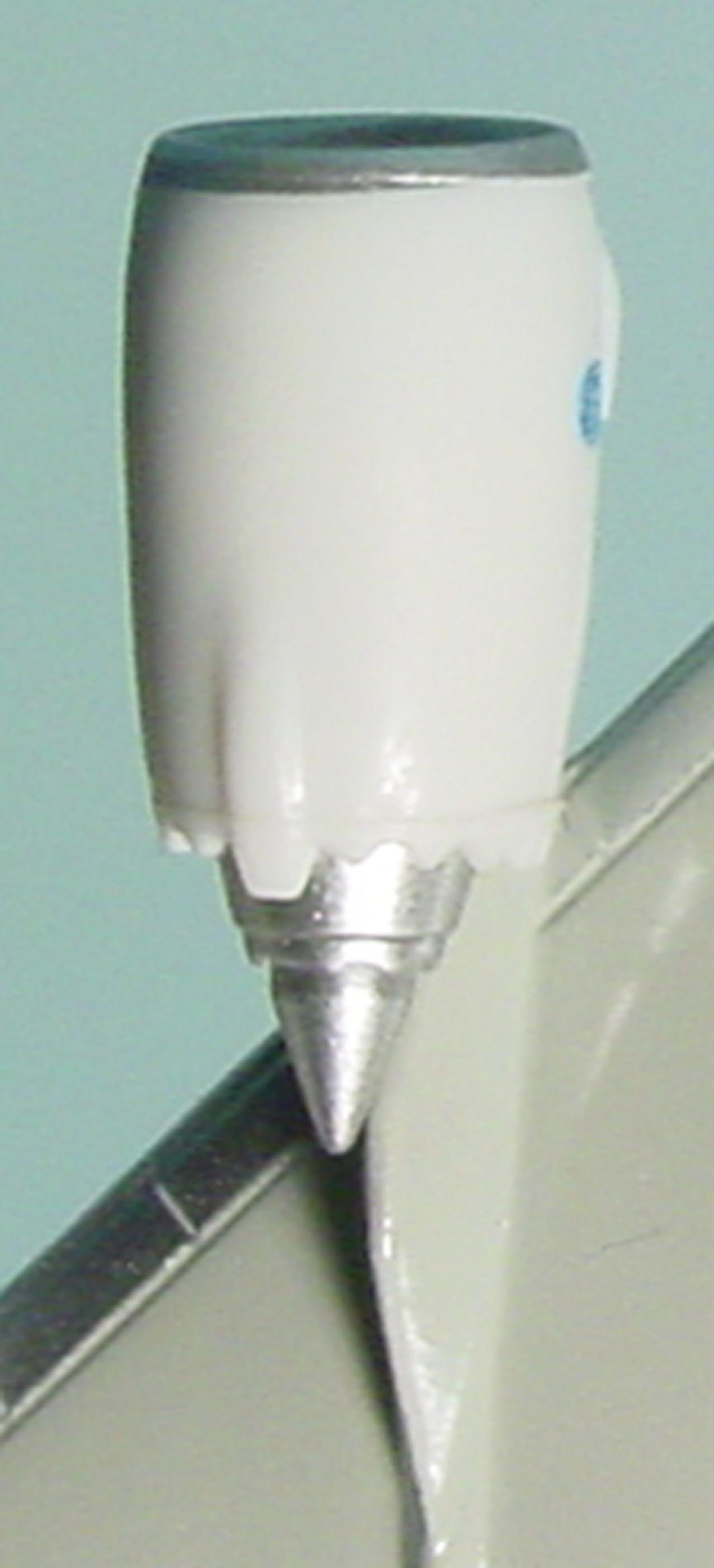

E102 GEnx 7.0 14.6

(10.6+1.2+2.8)

747-8 (introduced 2010)

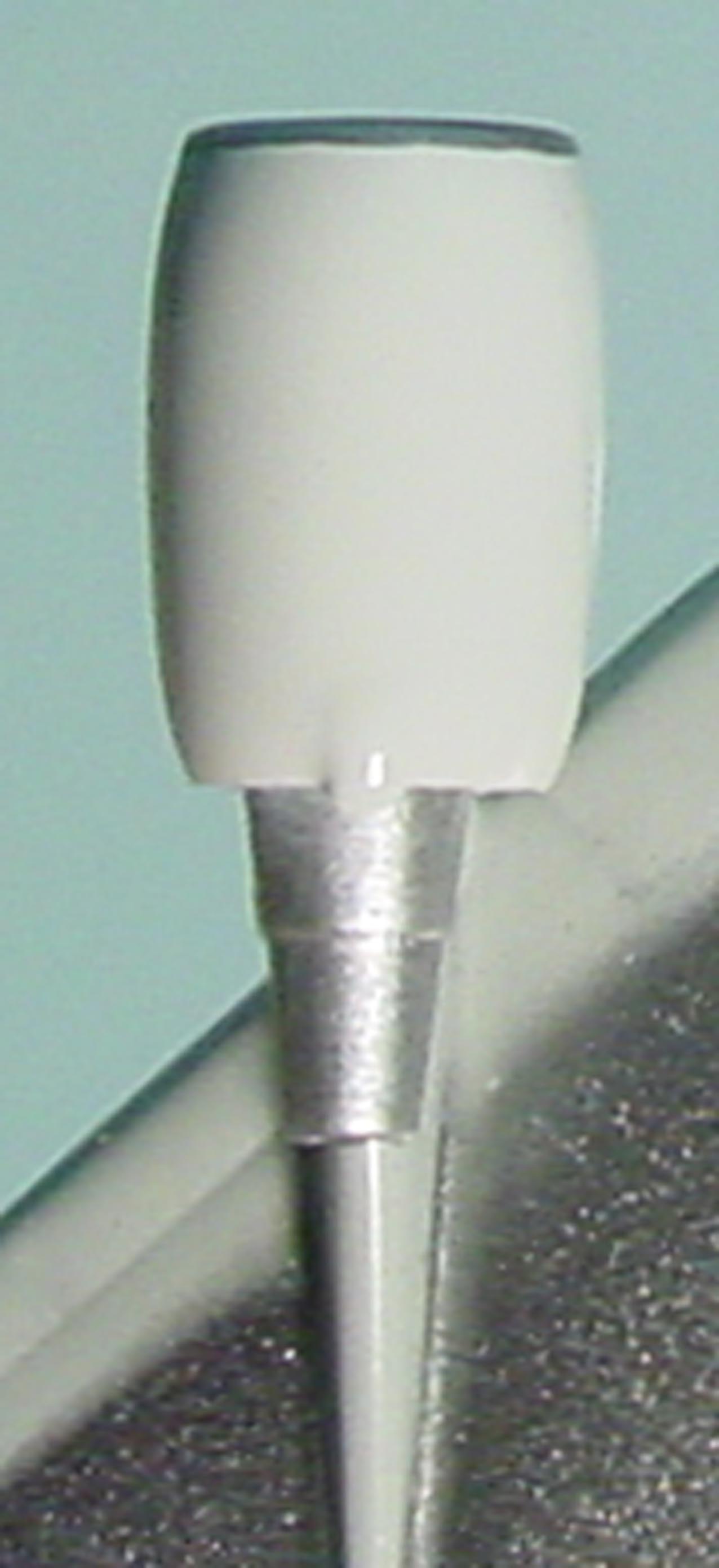

E103 GE CF6-80C 5.9 13.1

(8.7+1.8+2.6)

747-300/400

E-4B Nightwatch

VC-25

modified form of E65

(introduced 2010)

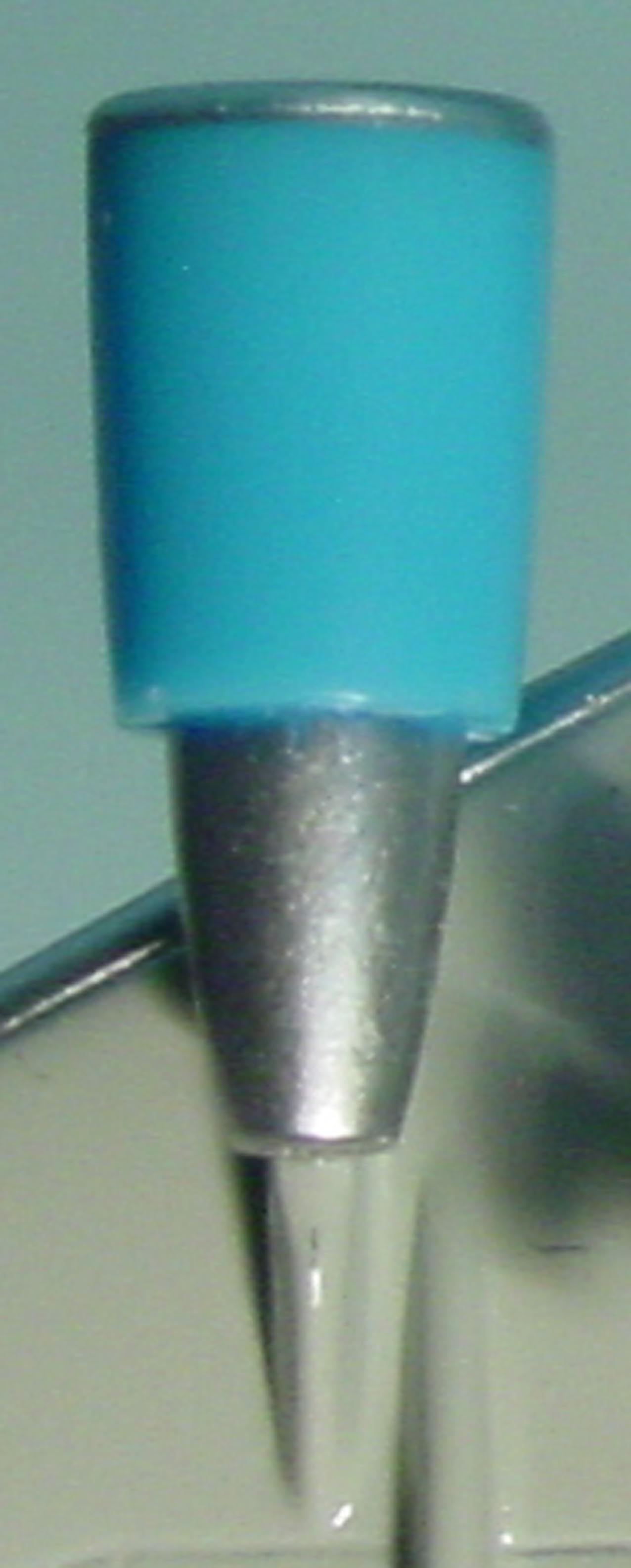

E104 PW 2037 /

PW 4156

5.7 12.4

(7.6+4.8)

757-200 (PW 2037)



A310-300 (PW 4156)

modified form of E05

(introduced 2010)

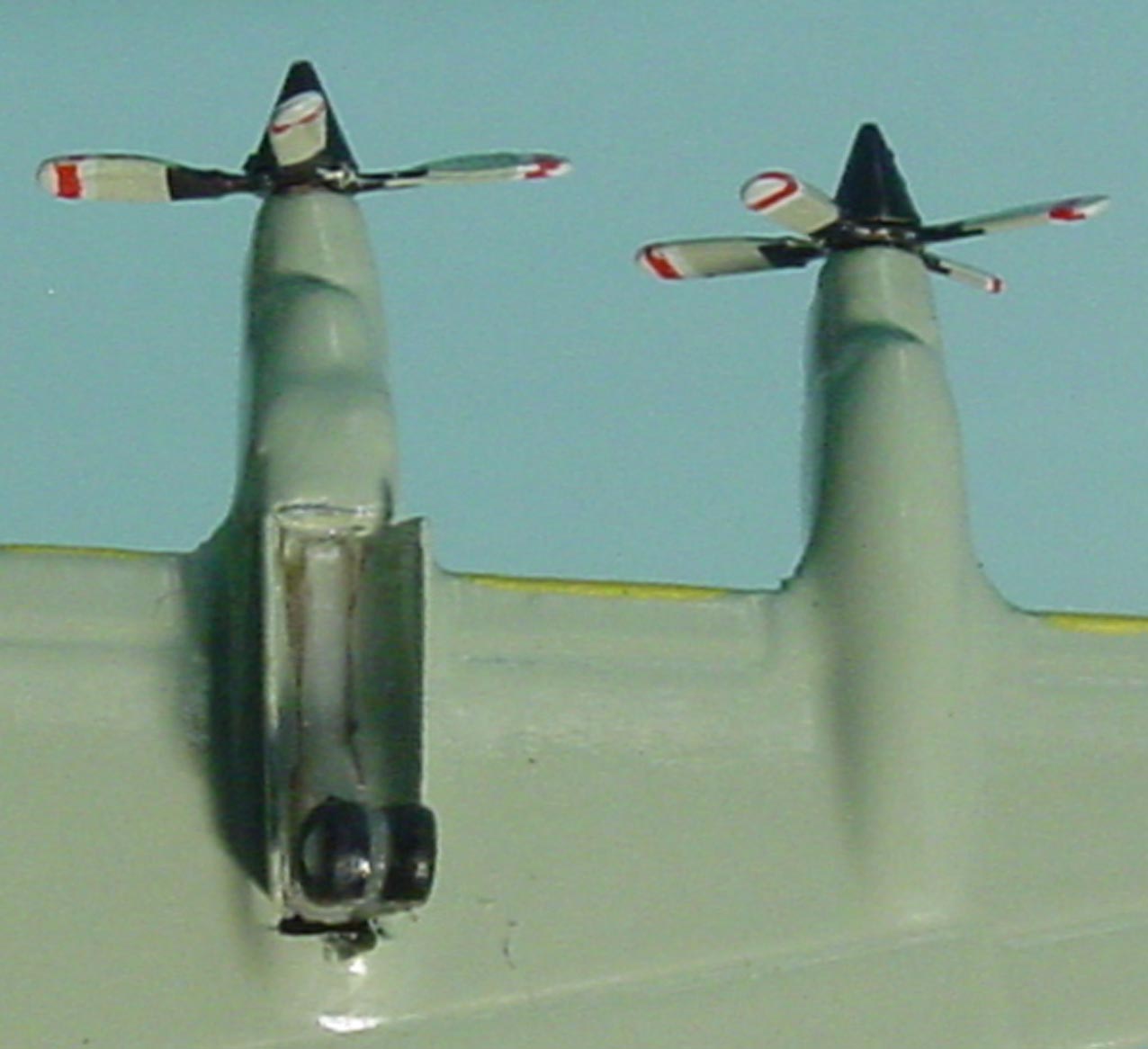

E105 Allison T56 -- --

P-3C

four blade propeller

(introduced 2010)

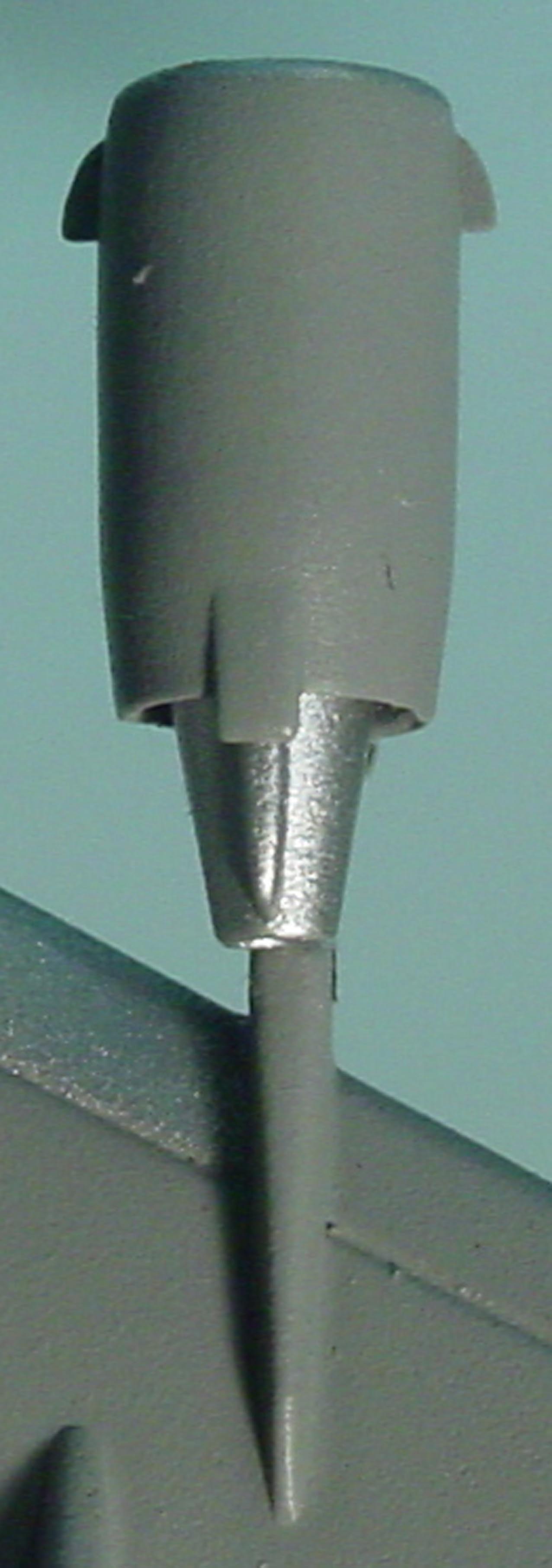

E106 PW 2040 5.2 12.3

(9+3.3)

C-17

(introduced 2010)

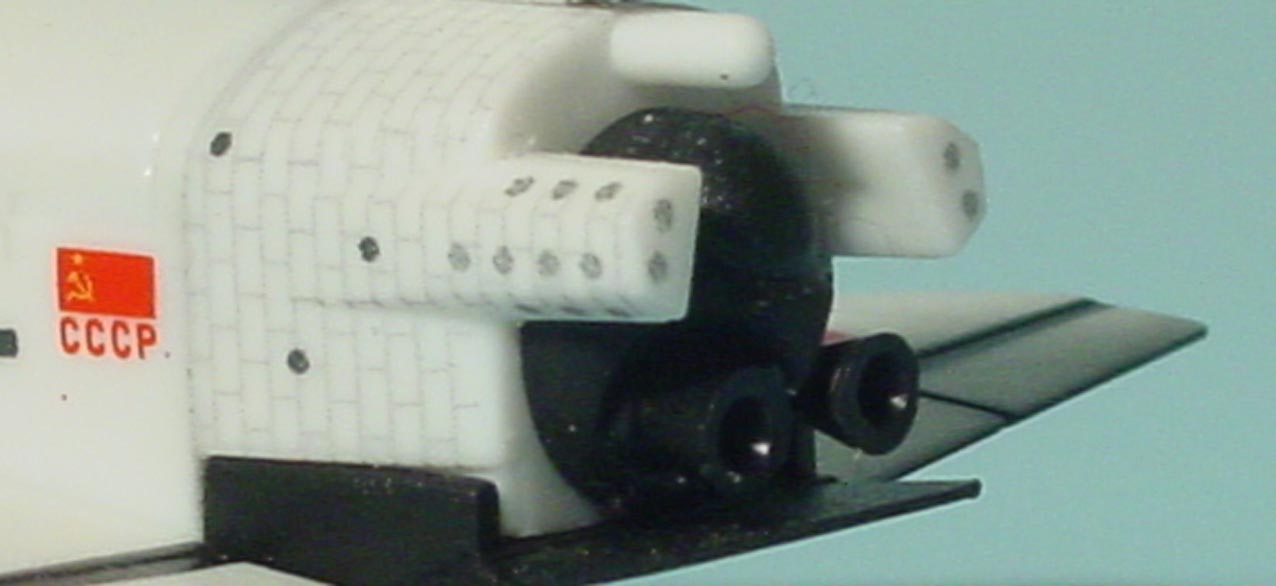

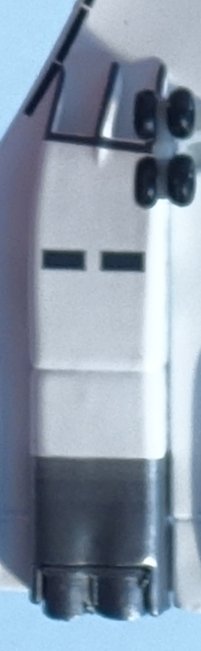

E107 n/a -- --

Buran

(introduced 2010)

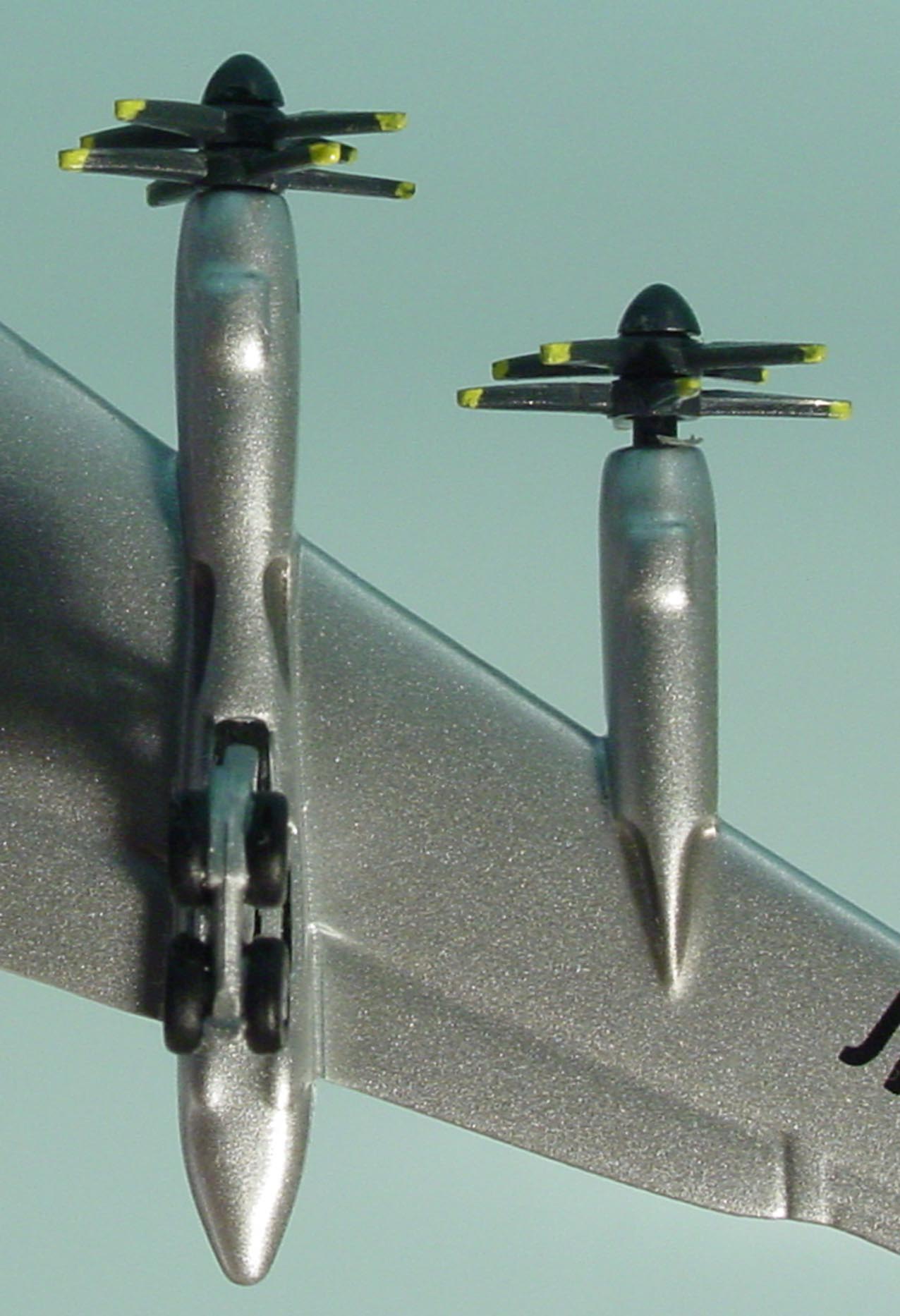

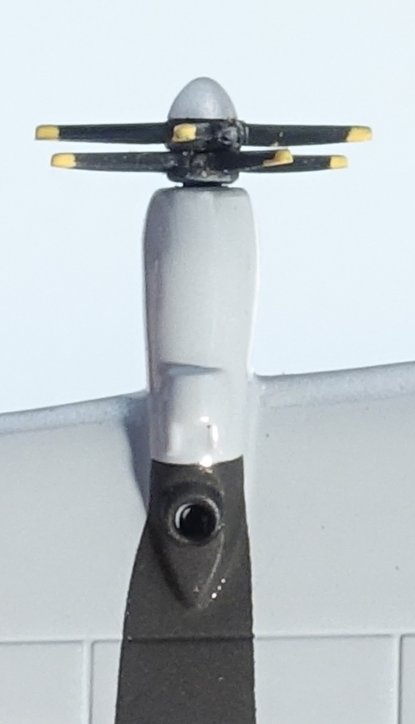

E108 Kuznetsov NK-12 -- --

Tu-114

two counter rotating four blade propellers

(introduced 2011)

E109 RR Trent 556 5.8 14.5

(9.0+3.0+2.5)

A340-600

modified form of E58 with one flap

(introduced 2011)

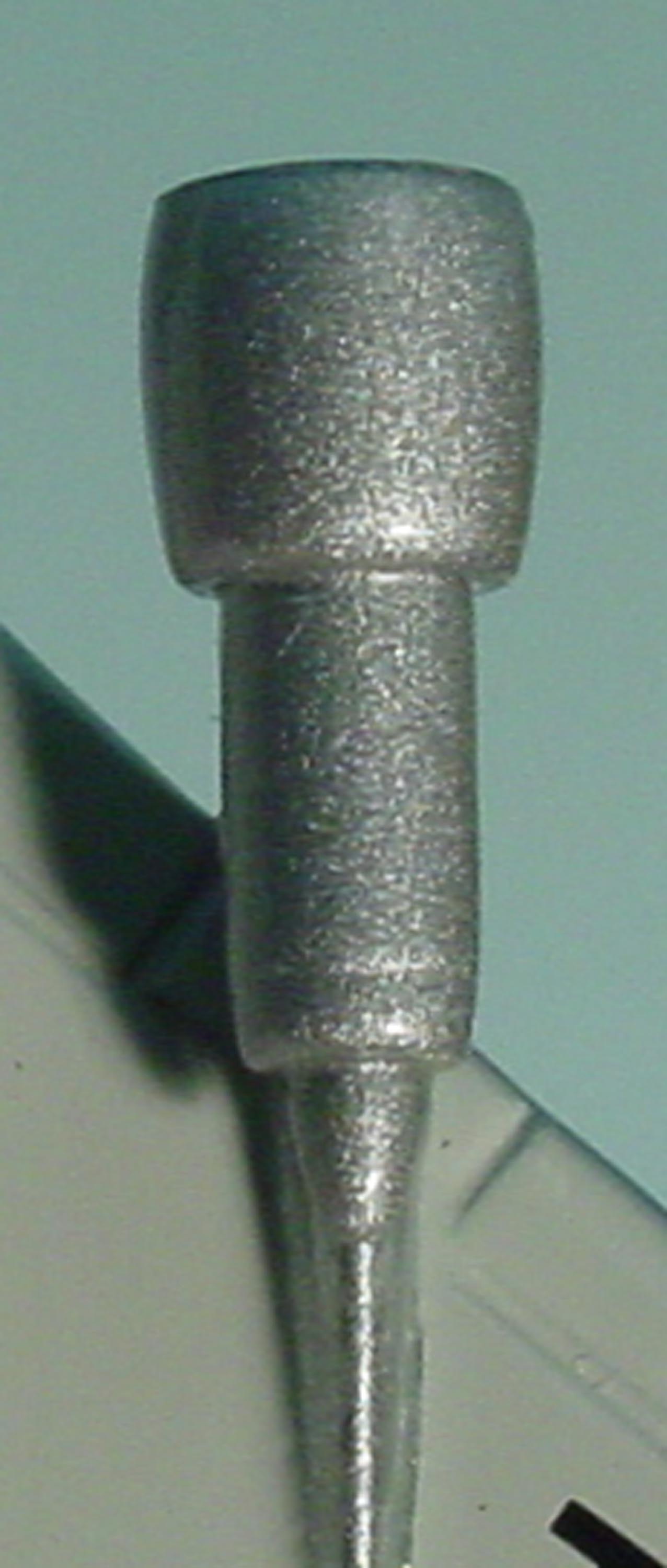

E110 PW JT9D 4.7 13.3

(5.0+6.1+2.2)

747-100/200/300



modified form of E39

additional engraved ring

(introduced 2011)

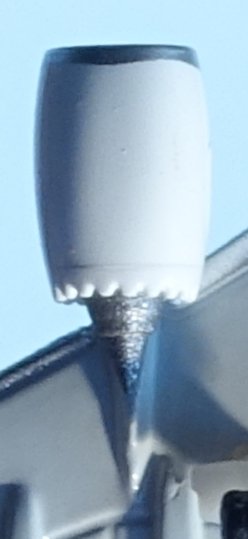

E111 RR Trent 1000 8.0 14.5

(10.5+1.0+3.0)

787-8

787-9

modified form of E72 - a little bit shorter and with modified inlet (fan blades more textured)

new form is E143

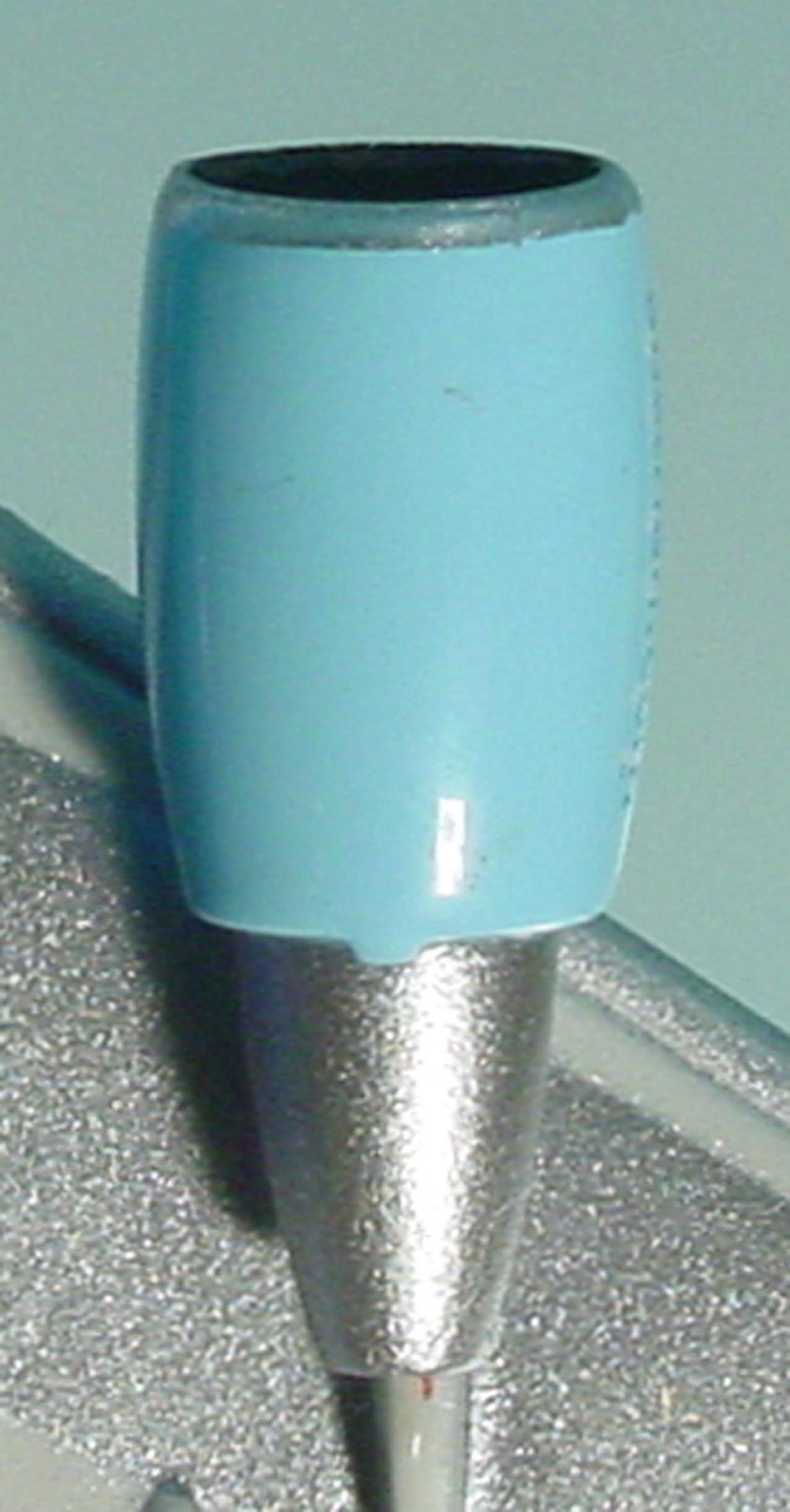

E112 GE CF6-80C 6.0 14.2

(8.4+5.8)

767-300 modified form of E02 with one flap

detailed tailpipe

(introduced 2010)

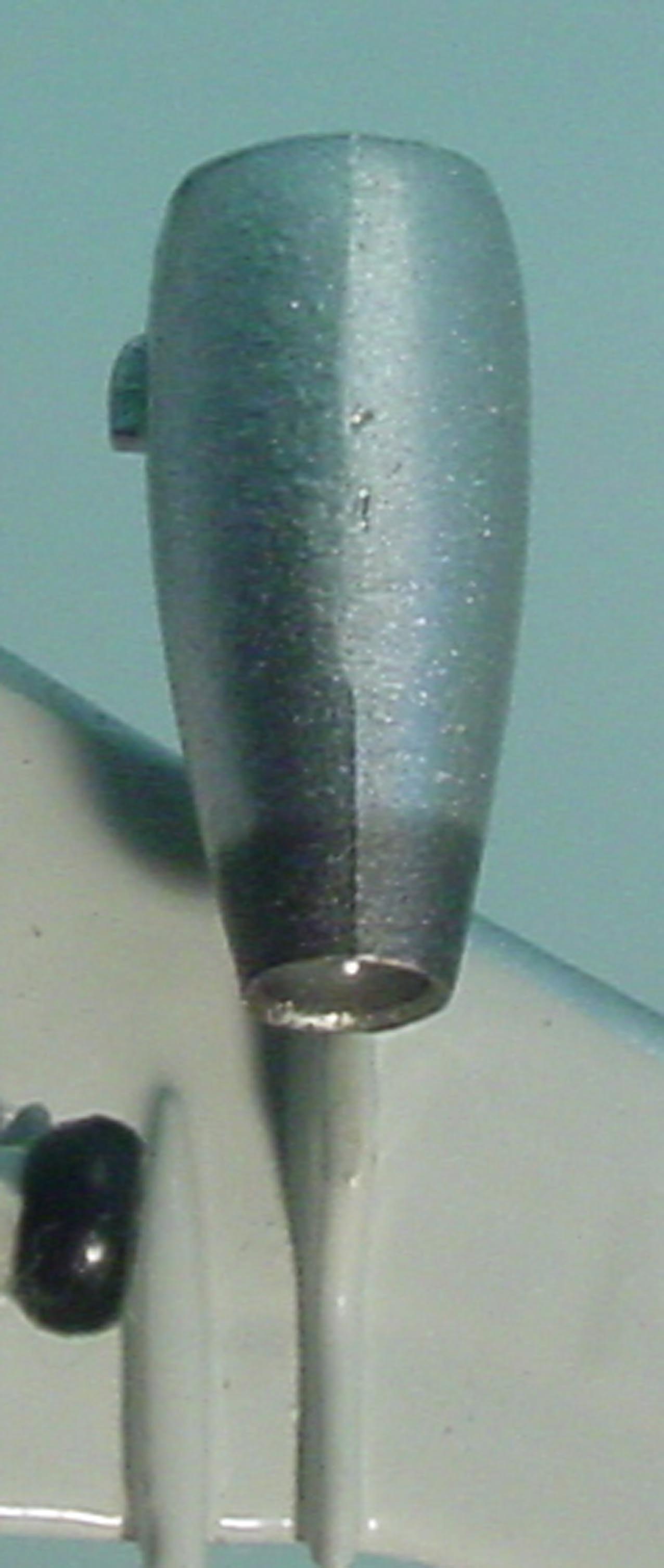

E113 IAE V2500 4.6 10.3

A319-100

A320-200

A321-200

modified form of E101 with one flap and

detailed tailpipe



new form is E151



(introduced 2011)

E114 Kuznetsov NK-144 7.7 44.6

Tu-144

(introduced 2012)

E115 Kolesov RD-36 7.7 45.9

Tu-144D

(introduced 2012)

E116 PW JT8D 3.4 11.7

DC-9-30/50

modified form of E51 with two longer flaps at the end



(introduced 2012)

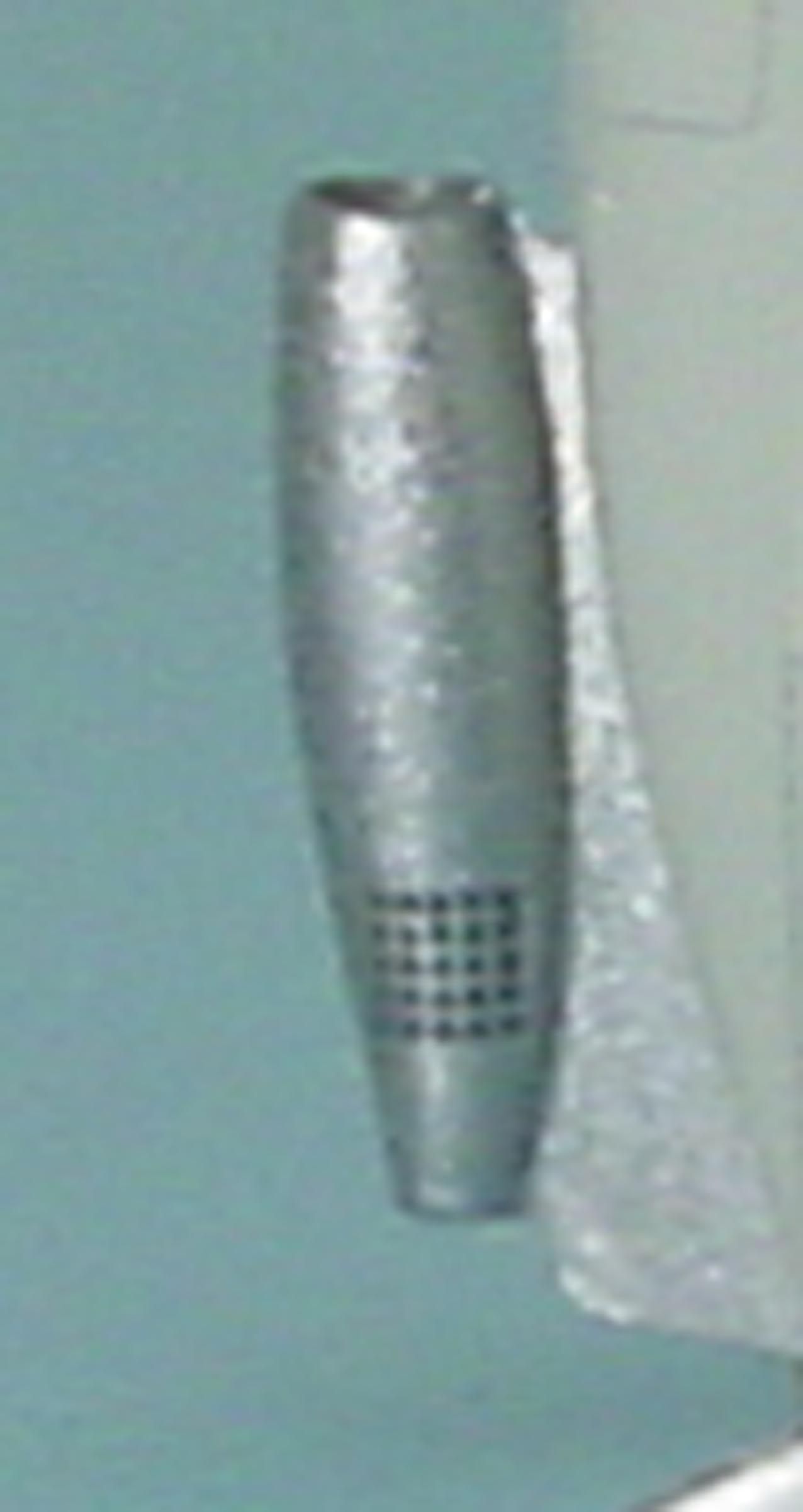

E117 RR Spey 512 2.6 9.2 BAC 1-11-200/400/500 new form  with Hushkits is E124

(introduced 2012)

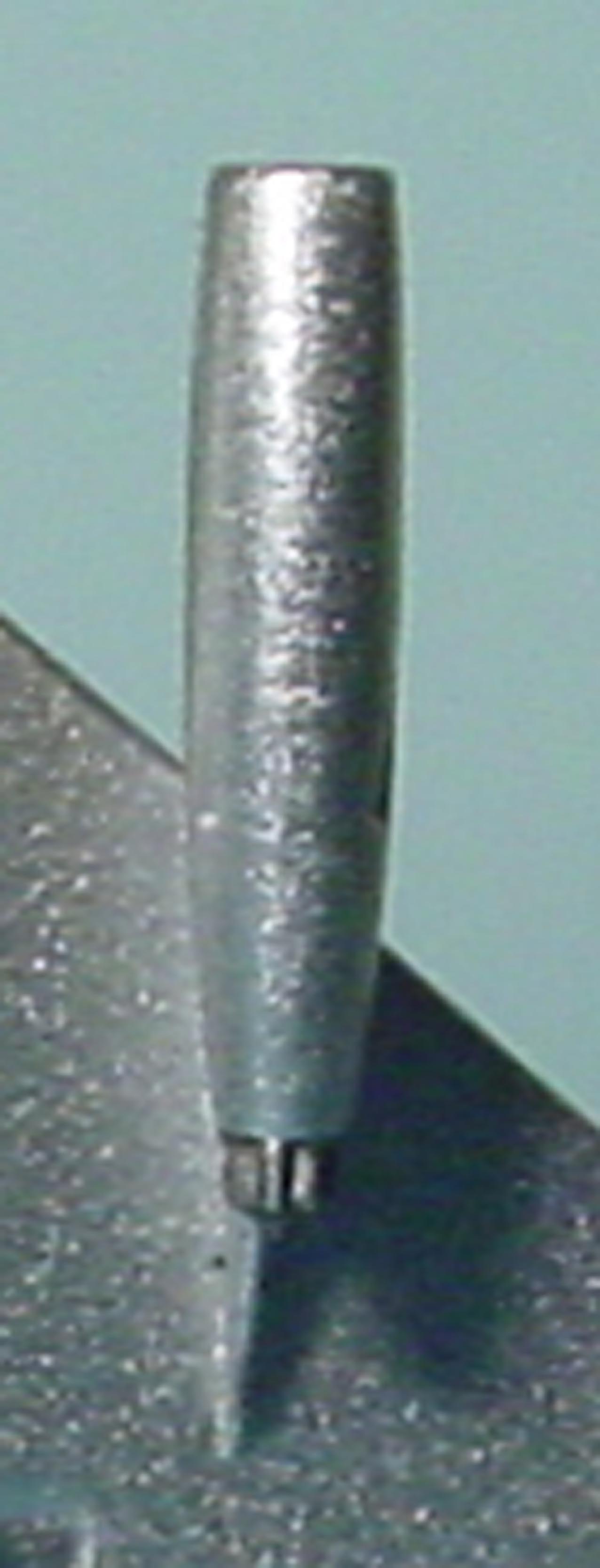

E118 GE CJ805 2.5 12.0 CV-880 (introduced 2012)

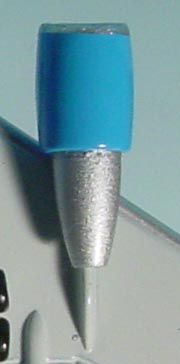

E119 PW 4060 5.5 13.6

(7.1+6.5)

767-200/300 modified form of E23 with one flap and

detailed tailpipe

(introduced 2012)

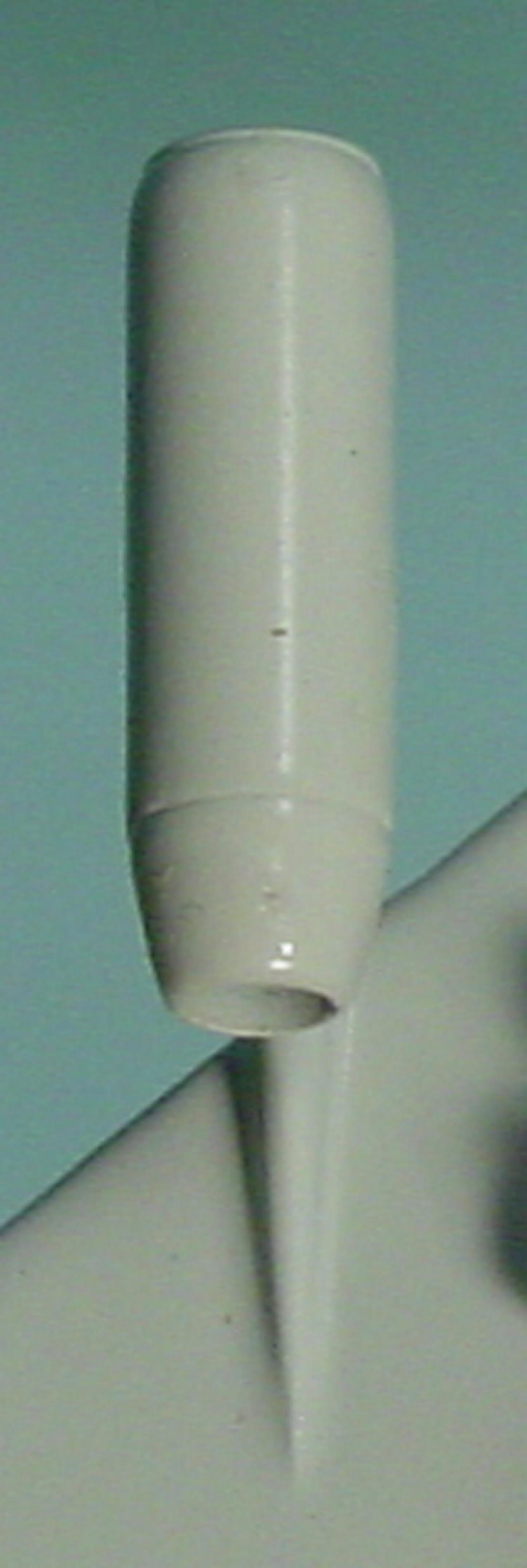

E120 GE CJ805 3.8 12.5 CV-990 (introduced 2013)

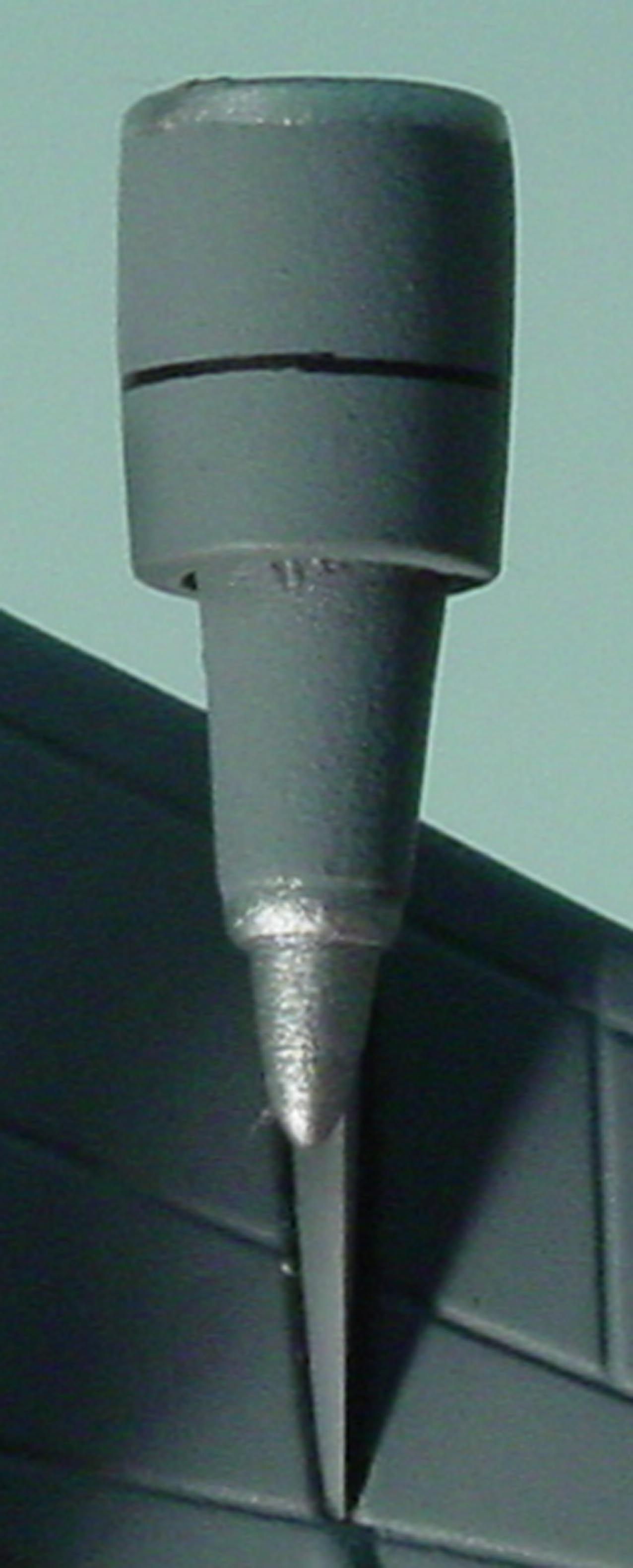

E121 GE TF39 5.8 15.6

(7.2+5.2+3.2)

C-5 Galaxy (introduced 2013)
E122 RR Trent 553 6.3 13.5

(9.2+2.0+2.3)

A340-500 modified form of E04

(introduced 2013)

E123 PW JT3D-3B (Q) 3.1 12.3

(4.2+8.1)

707-300 modified form of E11

(introduced 2011)

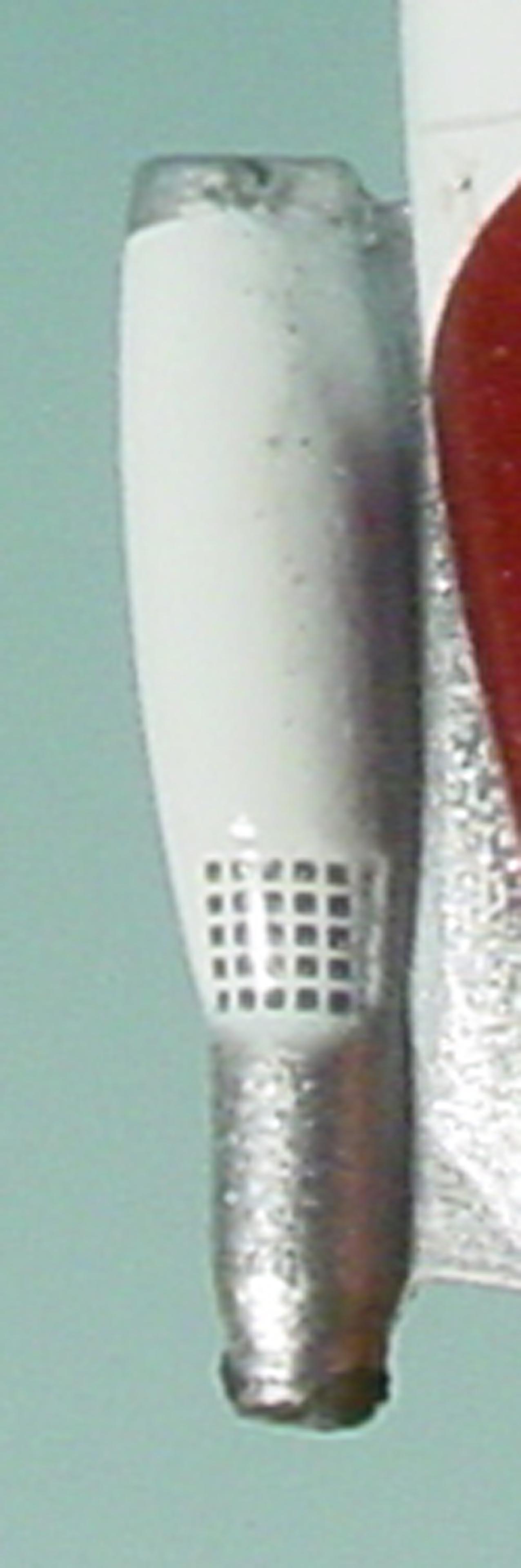

E124 RR Spey 512 Hushkits 2.6 11.2 BAC 1-11-500 modified form of E117 with Hushkits

(introduced 2013)

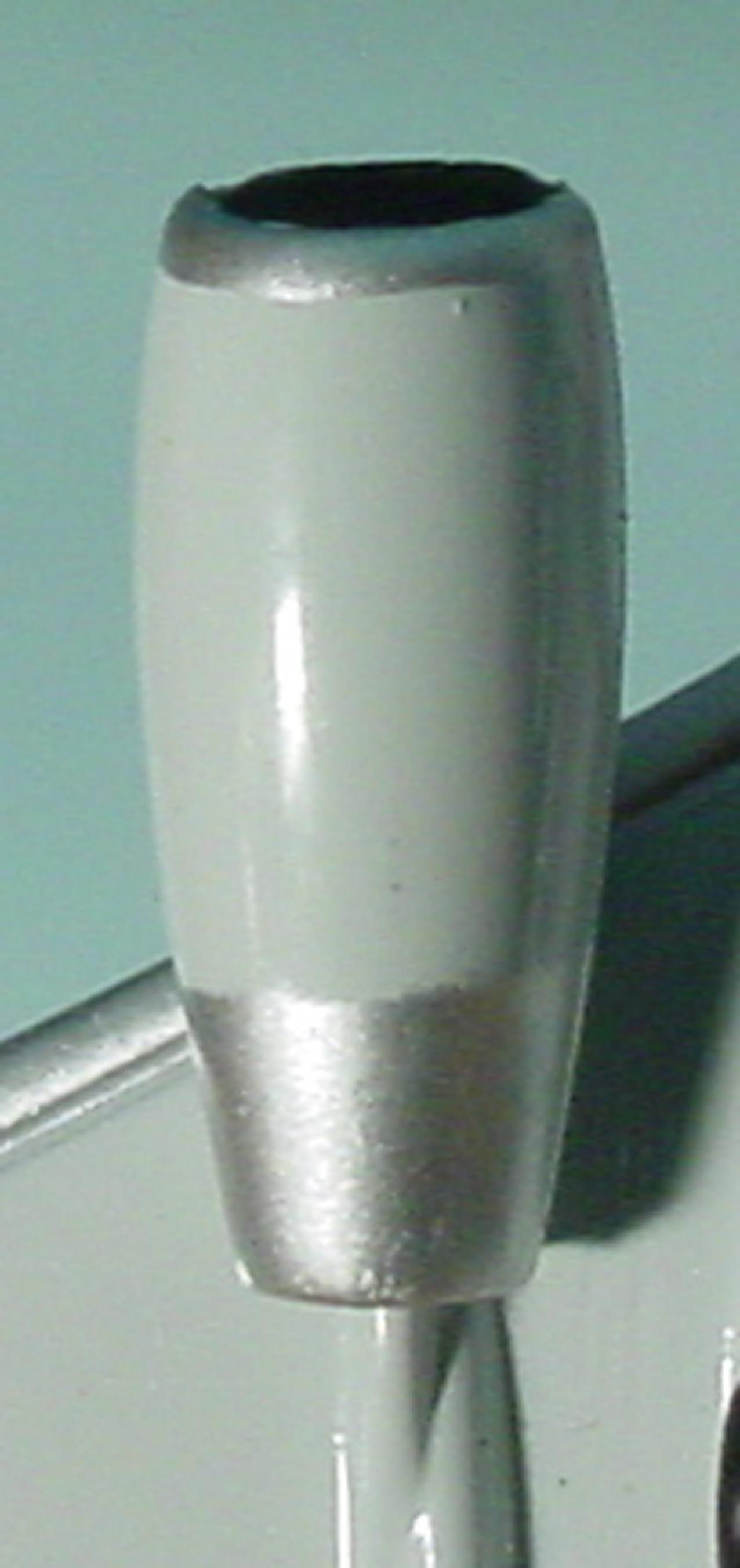

E125 RR RB211-535 E4 5.0 11.4 757-200 modified form of E06

new form is E131

(introduced 2013)

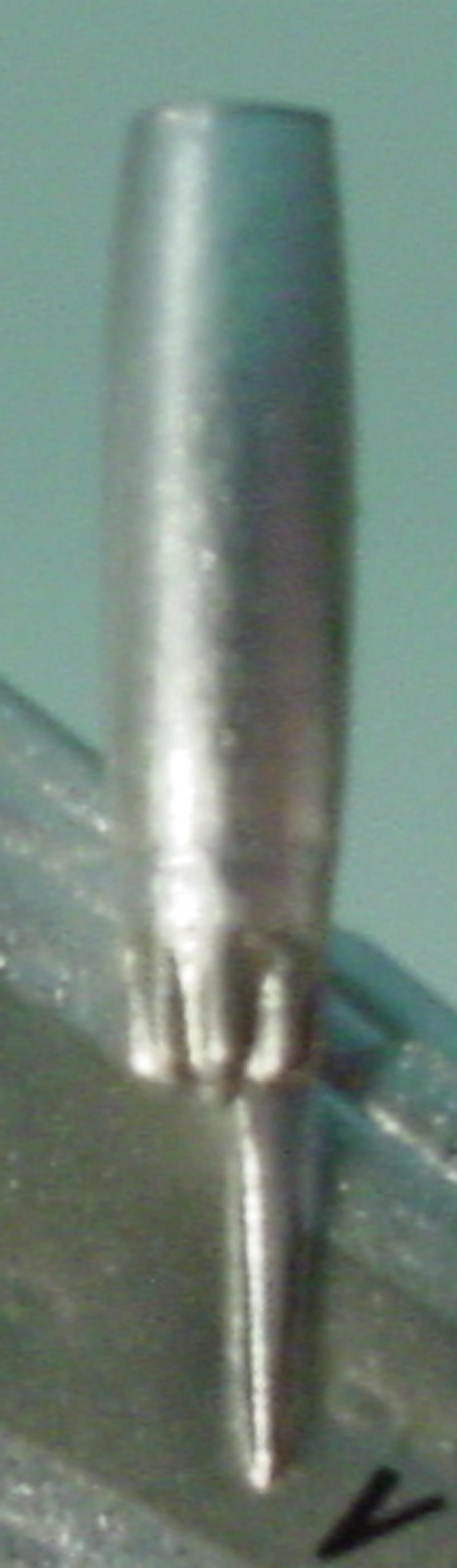

E126 RR Conway 508 3.1 11.6

(8.6+3.0)

707-400

(introduced 2014)

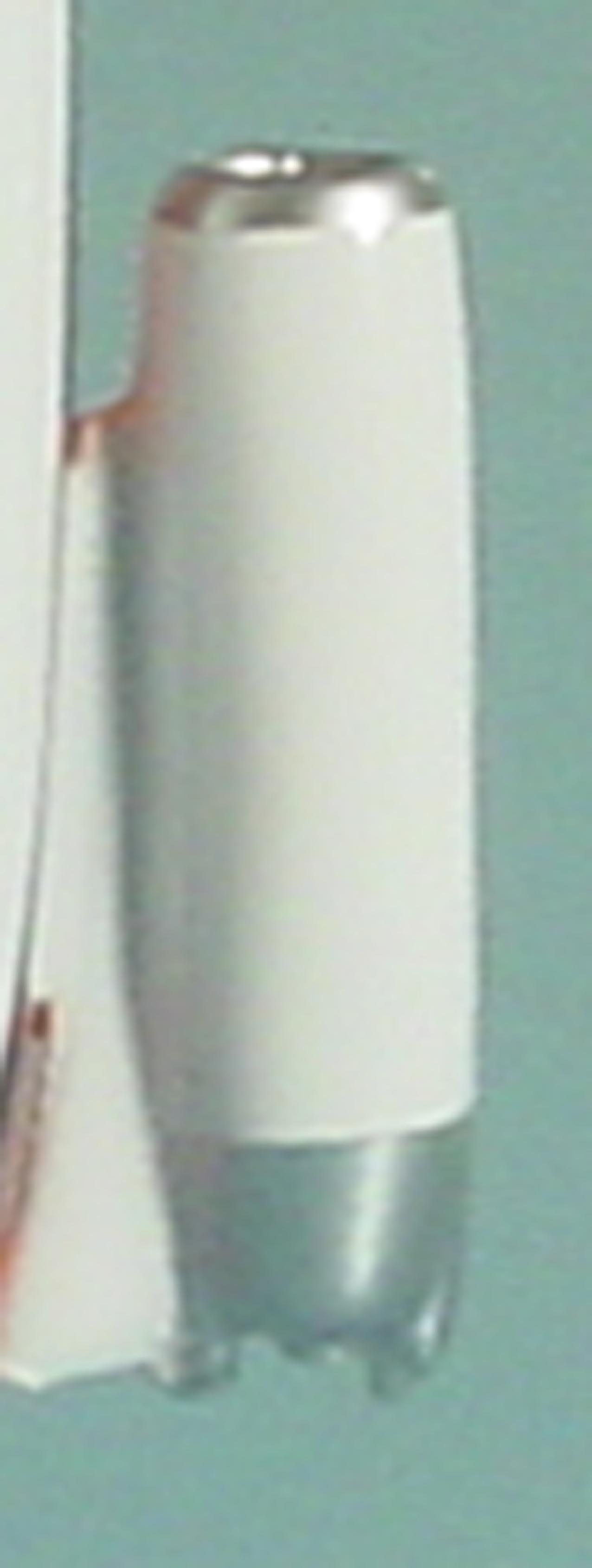

E127 PW JT8D 4.0 14.0

MD-81/82/83



MD-88

modified form of E16 with

detailed tailpipe

(introduced 2013)

E128 CFM 56-7B 5.2 10.9

(8.0+1.8+1.1)

737-700/800/900 modified form of E91 with smaller flap

(introduced 2013)

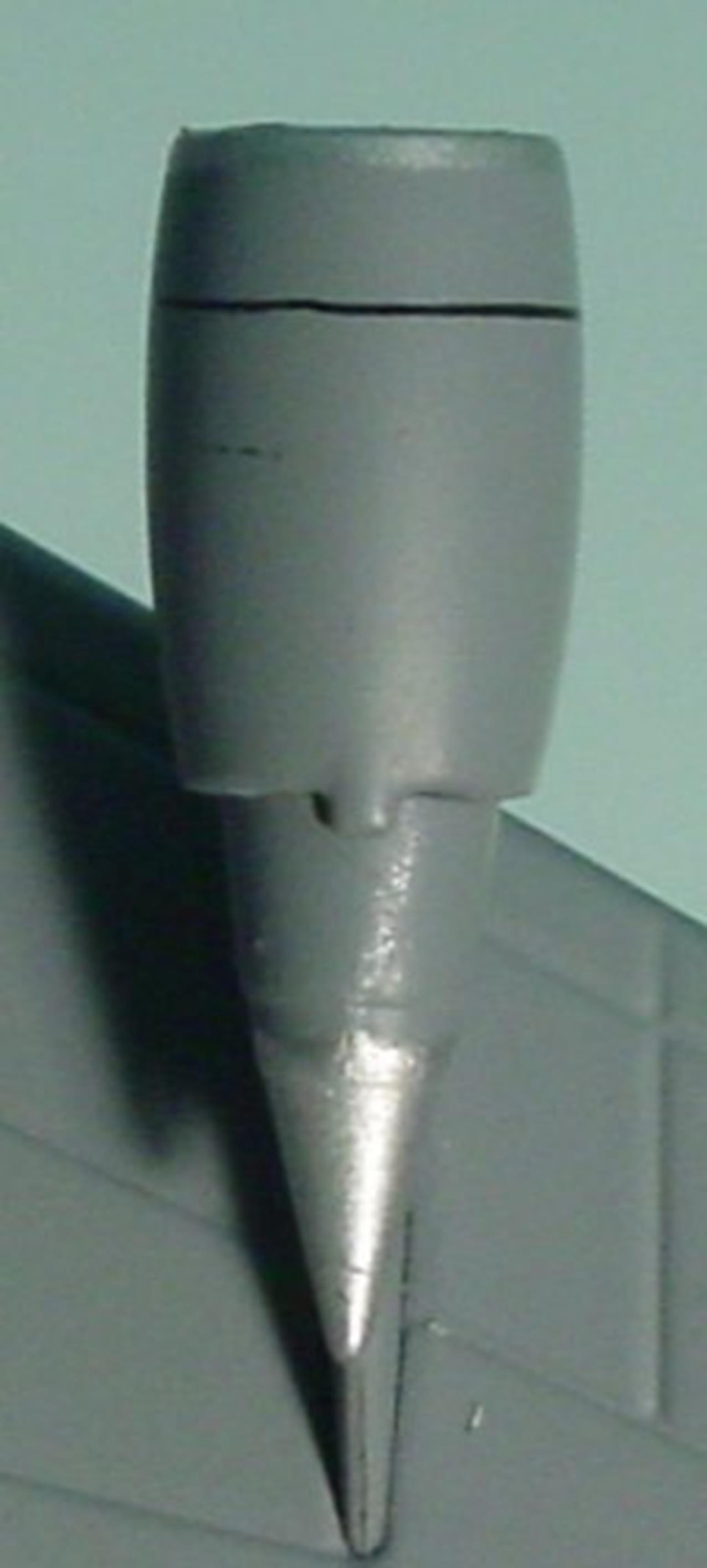

E129 GE F138 6.1 17.3

(9.2+8.1)

C-5M Super Galaxy

(introduced 2014)

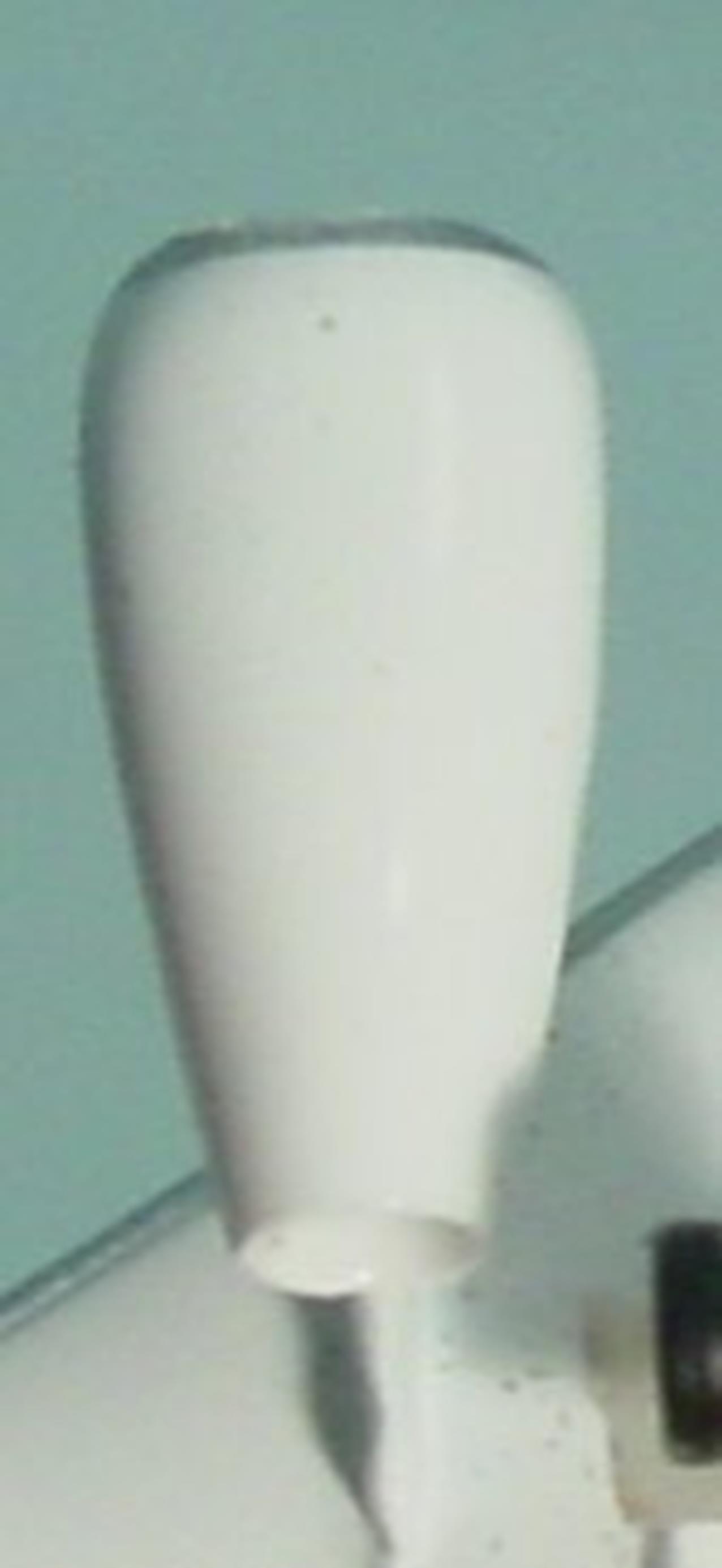

E130 PowerJet SaM146 4.2 8.5 Superjet 100 (introduced 2014)

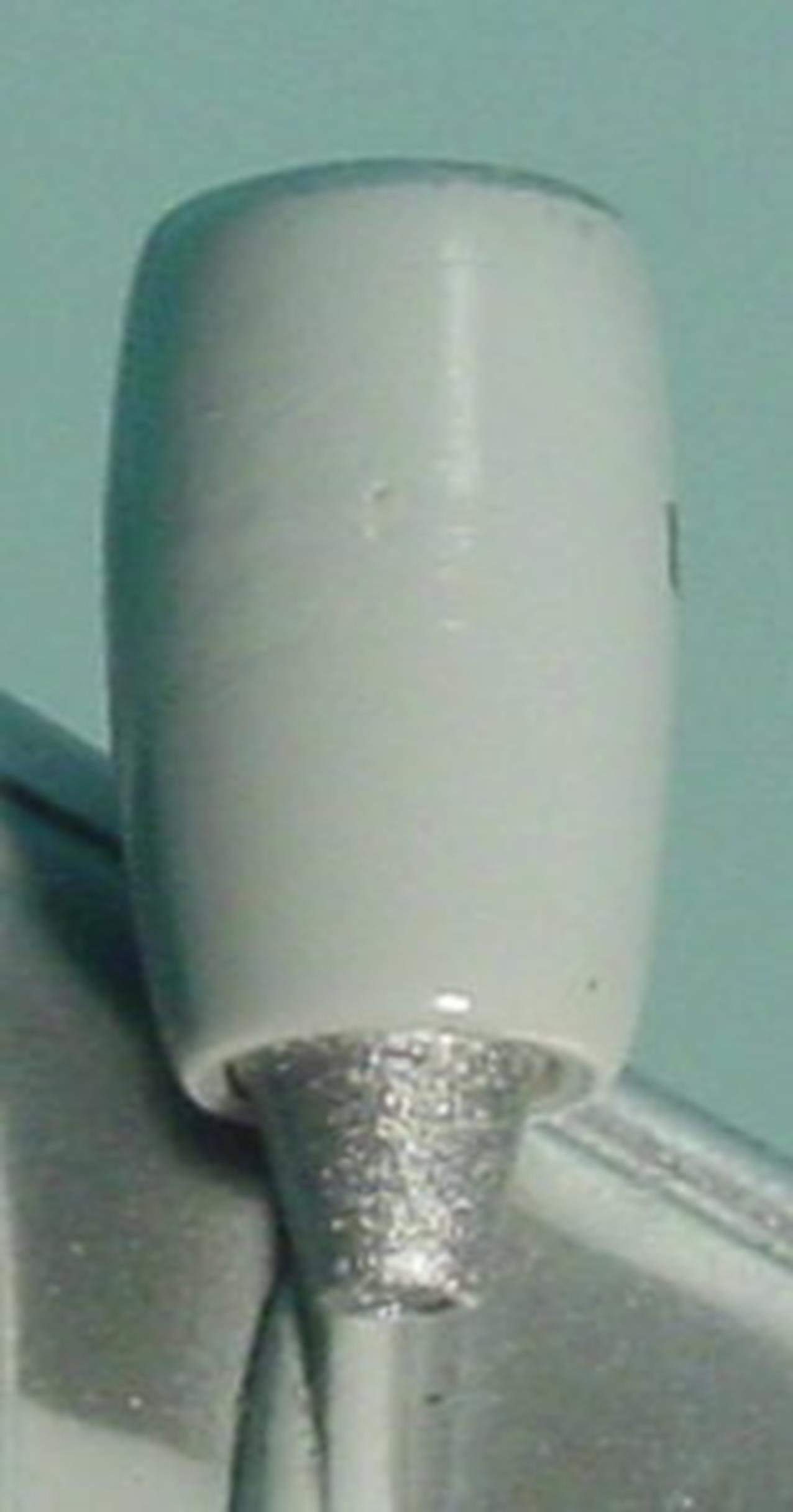

E131 RR RB211-535 E4 5.8 11.5

(9.2+2.3)

757-200 modified form of E125

(introduced 2014)

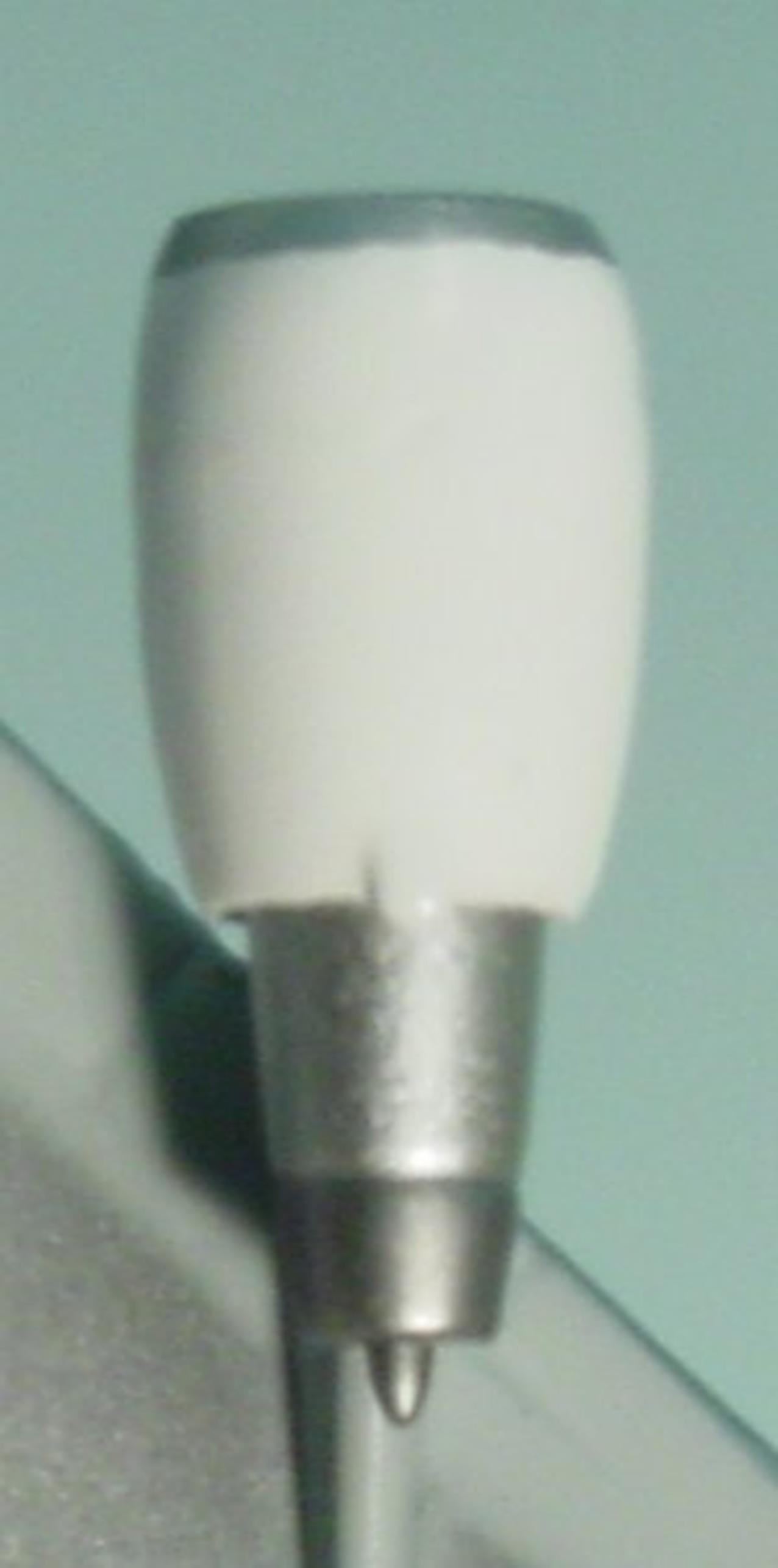

E132 PW 4056 6.1 14.2

(8.3+4.9+1.0)

747-200/400 modified form of E23

(introduced 2013)

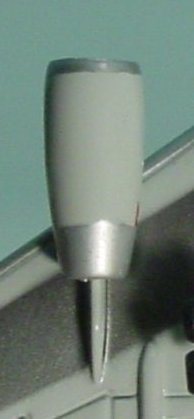

E133 RR RB211-524 D4D 5.4 11.7

767-300

modified form of E24 with one flap



(introduced 2013)

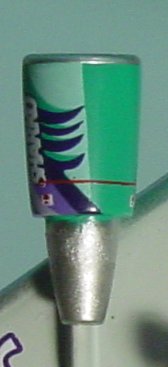

E134 PW 4056 5.1 11.7

(7.0+4.7)

767-200

modified form of E23



(introduced 2013)

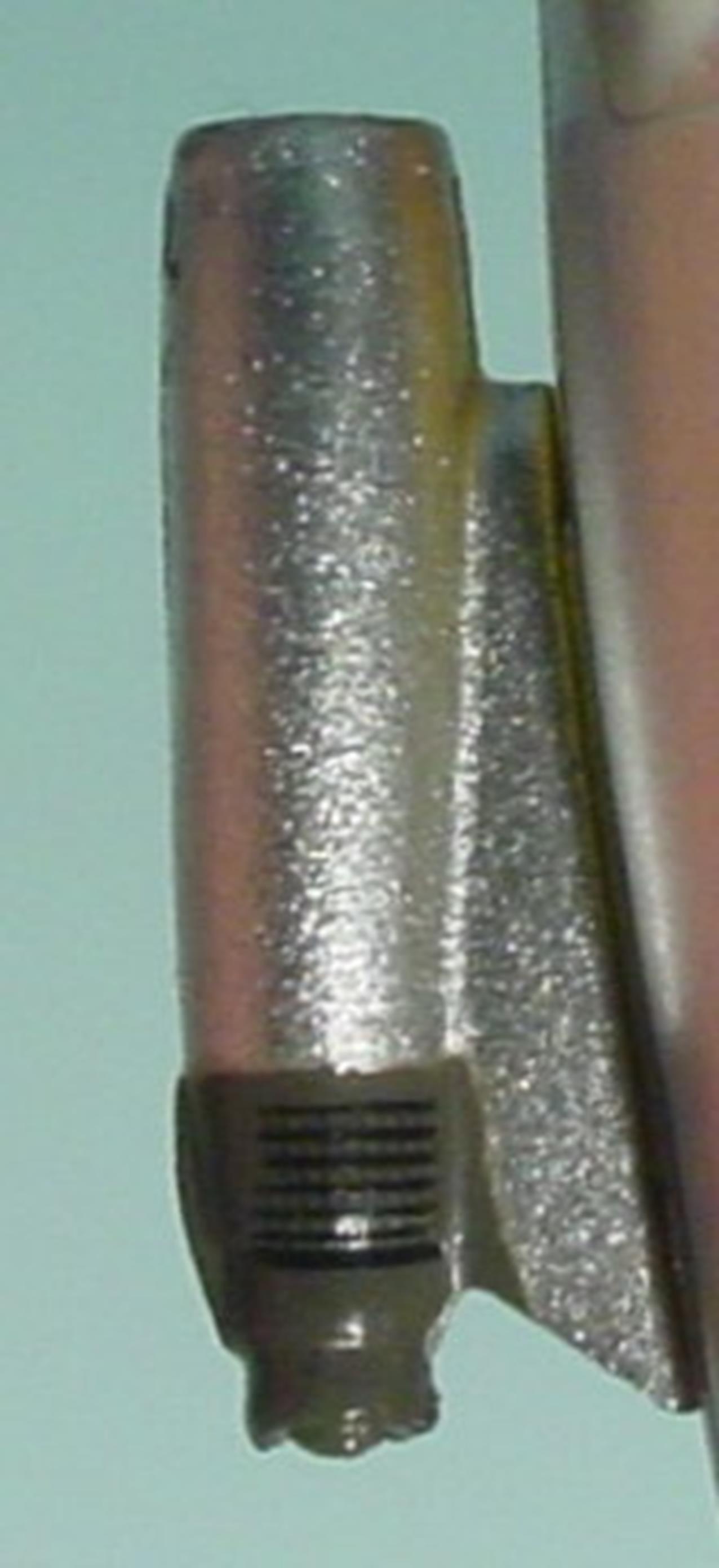

E135 PW JT8D 3.1 11.9

727-100/200

modified form of E35 with detailed tailpipe

new form is E147

(introduced 2014)

E136 GE CF34-8E 3.6 7.5

(4.7+2.8)

Embraer E170/175 modified form of E68 with two additional flaps

(introduced 2014)

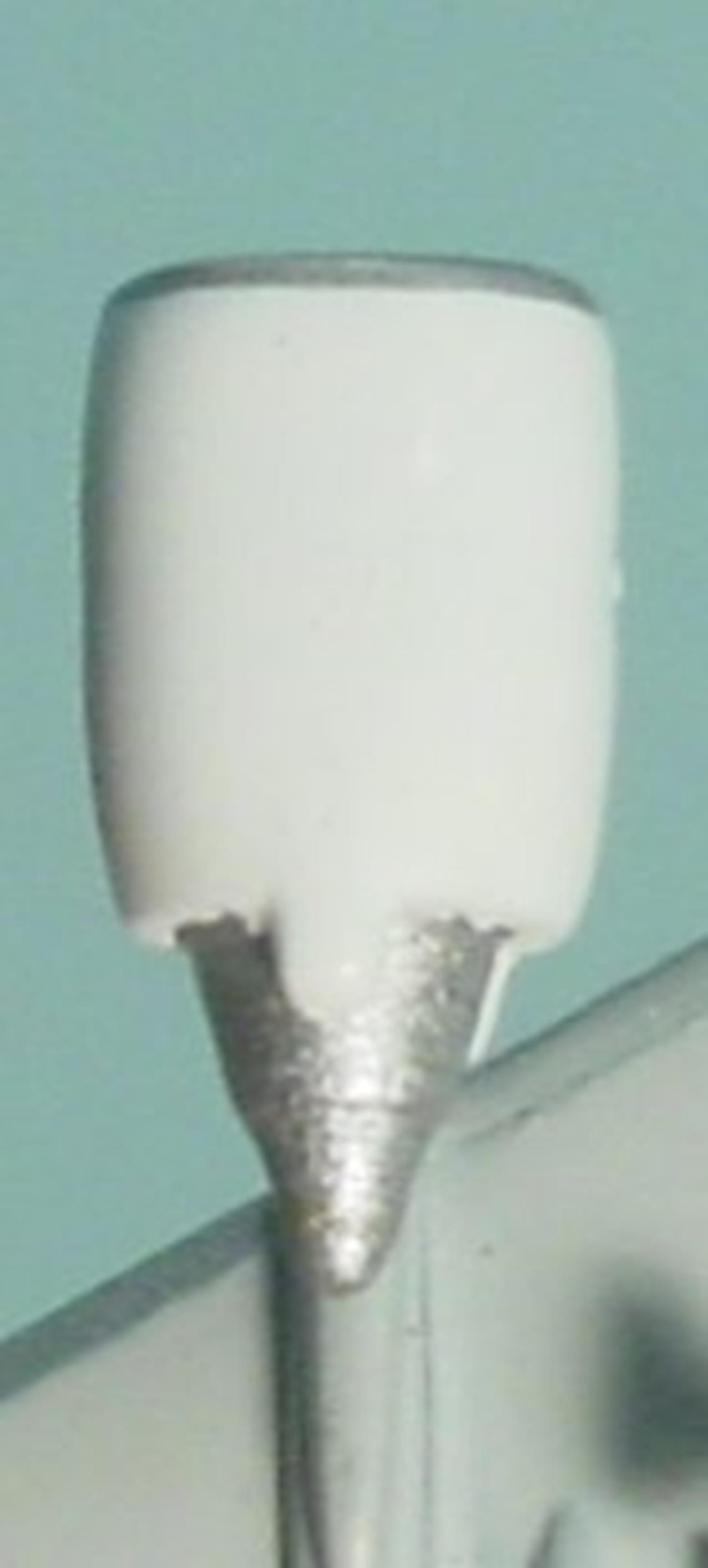

E137 GE CF34-10 4.5 8.5

(5.5+3.0)

Embraer E190/195 modified form of E82 with two additional flaps

(introduced 2014)

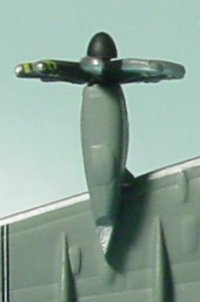

E138 EPI TP400-D6 -- -- A400M eight blade propeller

(introduced 2014)

E139 Lycoming IO-360 -- -- Zeppelin NT three blade propeller

(introduced 2015)

E140 GE CF6-50C 6.5 15.3

(9.5+4.5+1.3)

DC-10-10/30

KC-10

modified form of E42

new form is E153

(introduced 2015)

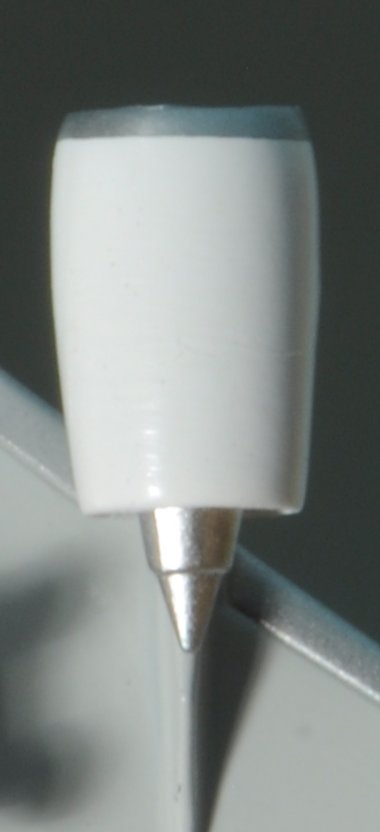

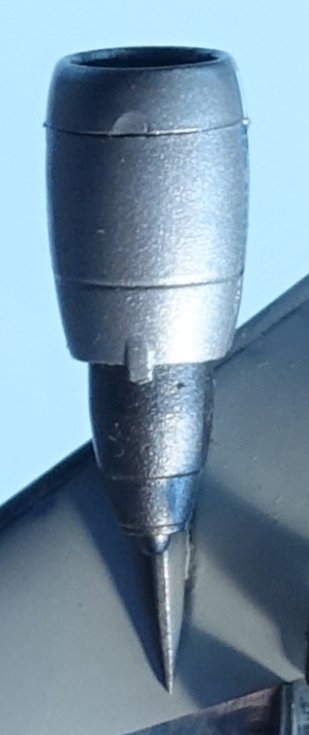

E141 RR Trent XWB 7.4 14.9

(11.0+1.5+2.4)

A350-900/1000 with one flap

(introduced 2015)

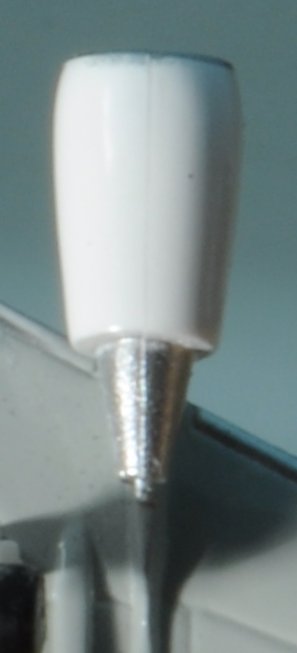

E142 CFM 56-5A/B 4.4 10.5

(7.0+3.4+0.1)

A320-200

A321-200

modified form of E94 without flaps

new form is E149

(introduced 2014)

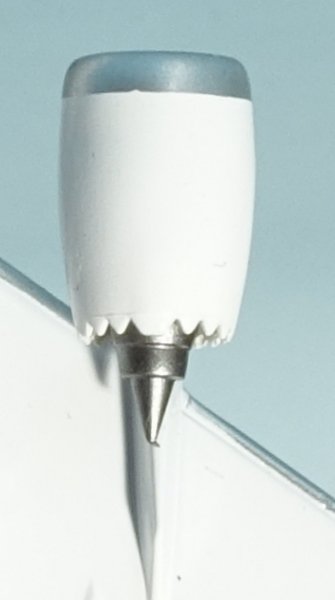

E143 RR Trent 1000 8.0 14.5

(10.5+1.0+3.0)

787-8, 787-9, 787-10 modified form of E111 - revised chevrons

(introduced 2017)

E144 Kuznetsov NK-12MA 3.8 17.6 AN-22 Antei (introduced 2017)
E145 PWC PW 127 1.8 8.3 ATR 72 modified form of E17

six blade propeller

(introduced 2017)

E146 PW 1500G 5.0 9.4

(7.0+1.4+1.0)

A220-100/300

CS100, CS300

(introduced 2017)
E147 PW JT8D 3.1 13.1

727-100/200

modified form of E135

(introduced 2017)

E148 PW 1100G / CFM LEAP-1A 5.8 10.8

(7.5+1.8+1.5)

A320neo, A321neo

with two flaps

(introduced 2017)

(modified pylons since late 2020)

E149 CFM 56-5A/B 4.6 10.7

(7.2+3.5)

A320-200

modified form of E142 with one flap

new form is E150

(introduced 2017)

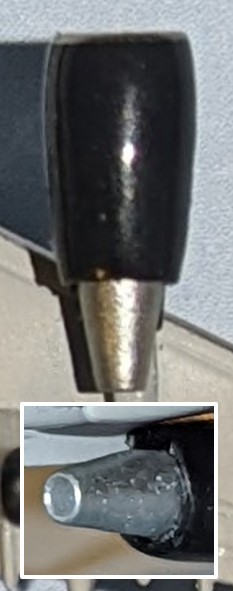

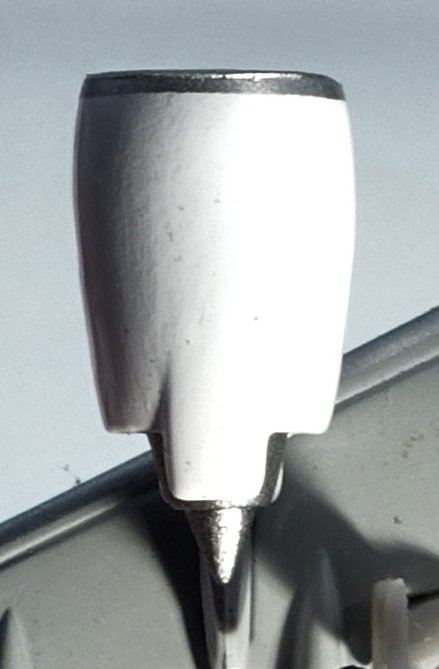

E150 CFM 56-5A/B 4.6 10.9

(7.4+3.5)

A319-100

A320-200

A321-200

modified form of E149 with two flaps

new form is E158 with two flaps and modified thrust nozzle

(introduced 2017)

E151 IAE V2500 4.6 10.8 A319CJ

A319-100

A320-200

A321-100/200

modified form of E113 with two flaps and

detailed tailpipe



new form is E157



(introduced 2017)

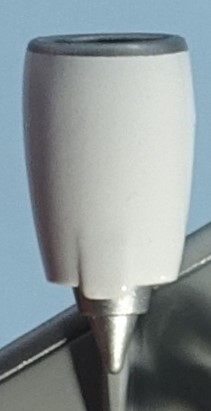

E152 RR Trent 7000 8.0 15.7

(11.5 + 4.2)

A330-800/900

(introduced 2018)

E153 GE CF6-50C 6.5 16.0

(9.5+5.5+1.0)

DC-10-30/40 modified form of E140

(introduced 2016)

E154 GE9X 9.4 18.0

(13.5+4.5)

777-8

777-9

(introduced 2019)

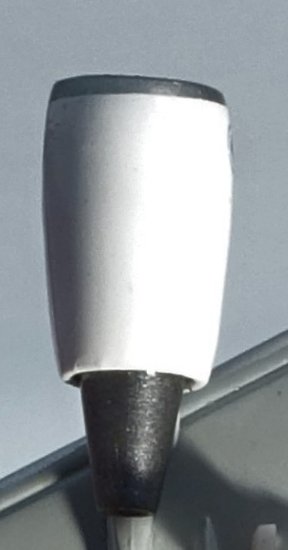

E155 CFM LEAP-1B 5.1 10.1

(7.6+2.5)

737 MAX 8

737 MAX 9

with one flap

(introduced 2019)

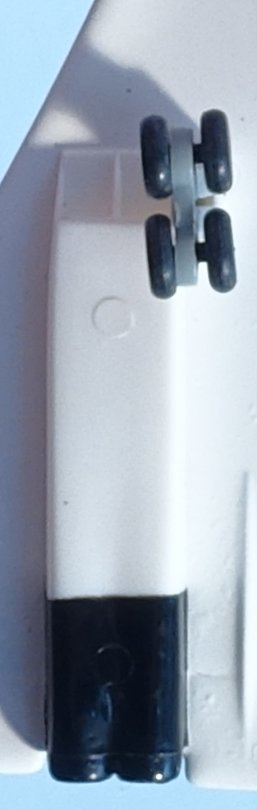

E156 RR/Snecma Olympus 593 -- 26.5

Concorde

modified form of E15

(introduced 2019)

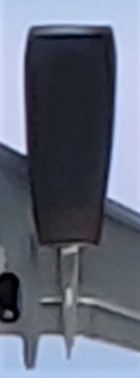

E157 IAE V2500 4.6 10.8 A320-200

modified form of E151 with one flap and

detailed tailpipe



(introduced 2019)

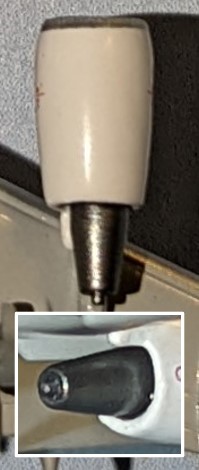

E158 CFM 56-5A/B . 4.6 11.3

(7.4+3.8+0.1)

A320-200

A321-100/200

modified form of E150 with two flaps and modified thrust nozzle

(introduced 2019)

EH1 RR 54210K -- -- YS-11A (Hogan only) four blade propeller



Will be continued ;-)

Home Back
